42-50 Series

Thermal Break

A thermal break profile system for AHU panel frames with 50 mm panel thickness and section joining capability.

Get a Quote Download DataSheet
Thermal Break
VDI 6022 Certified

System Specs

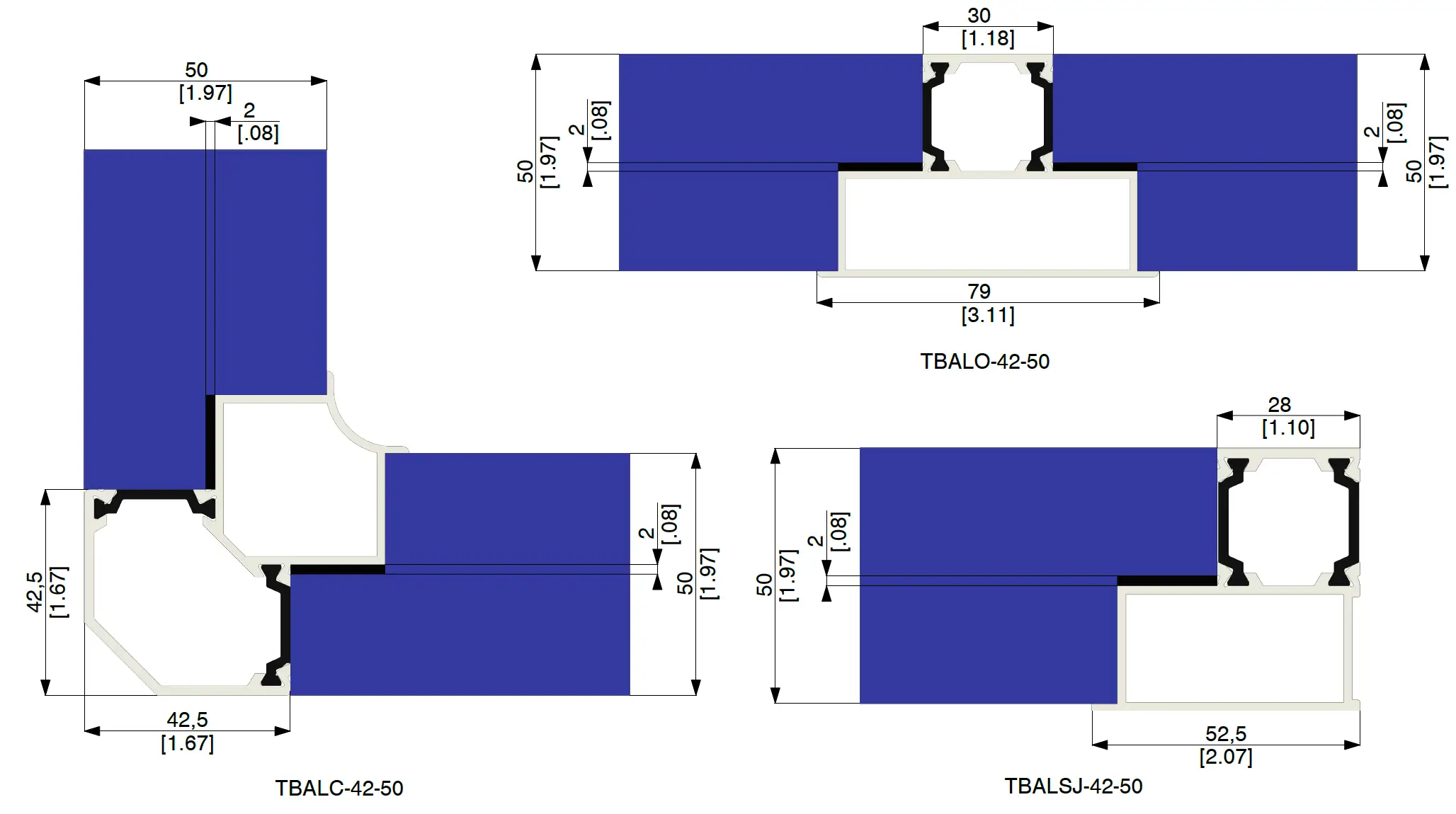

Non-Thermal Break System Architecture Profile Configuration Spec
Panel Thickness 50 mm
Type Thermal Break System
Nylon Standard VDI 6022 Certified
Profile Length 5.8 Meters
Finish Mill Finished / Anodized

Components Table

Component
Part Code
Material
Role
Corner Profile
TB ALC 4250
Aluminium EN AW6063
Main framing outline connection
Corner Joiner
TB NYC 4250
Nylon VDI 6022
Structural corner joint fixation
Omega Profile
TB ALO 4250
Aluminium EN AW6063
Intermediate structural support dividing profile
Omega Joiner
TB NYO 4250
Nylon VDI 6022
T-junction frame connection layout

Product Components

Corner Profile

TB ALC 4250 Aluminium Profile Section Structural Spec
Part Code TB ALC 4250
Material Aluminium EN AW6063

Corner Joiner

TB NYC 4250 Structural Corner Joiner Component Block
Part Code TB NYC 4250
Material Nylon VDI 6022

Omega Profile

TB ALO 4250 Structural Omega Profile Section Component
Part Code TB ALO 4250
Material Aluminium EN AW6063

Omega Joiner

TB NYO 4250 Matrix Omega Joiner Unit
Part Code TB NYO 4250
Material Nylon VDI 6022

Section Joining Components Table

Component
Part Code
Material
Role
Section Joining Profile
TB ALJ 4250
Aluminium EN AW6063
Structural split line layout frame connection
Section Joining Joiner
TB NYJ 4250
Nylon VDI 6022
Splice joint tracking internal alignment clip

Section Joining Product Components

Section Joining Profile

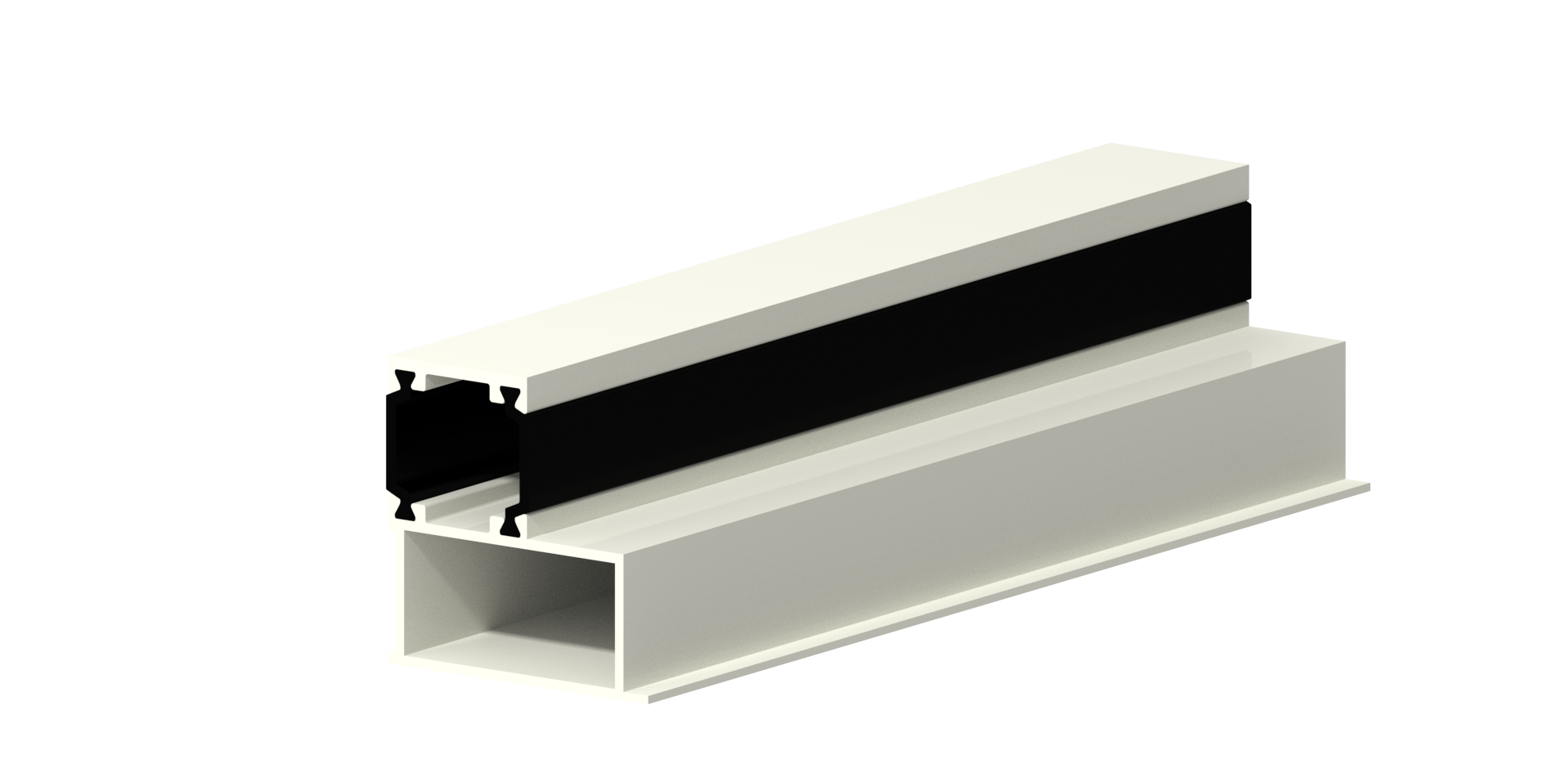

TB ALJ 4250 Heavy Structural Split Line Matrix Profile Spec
Part Code TB ALJ 4250
Material Aluminium EN AW6063

Section Joining Joiner

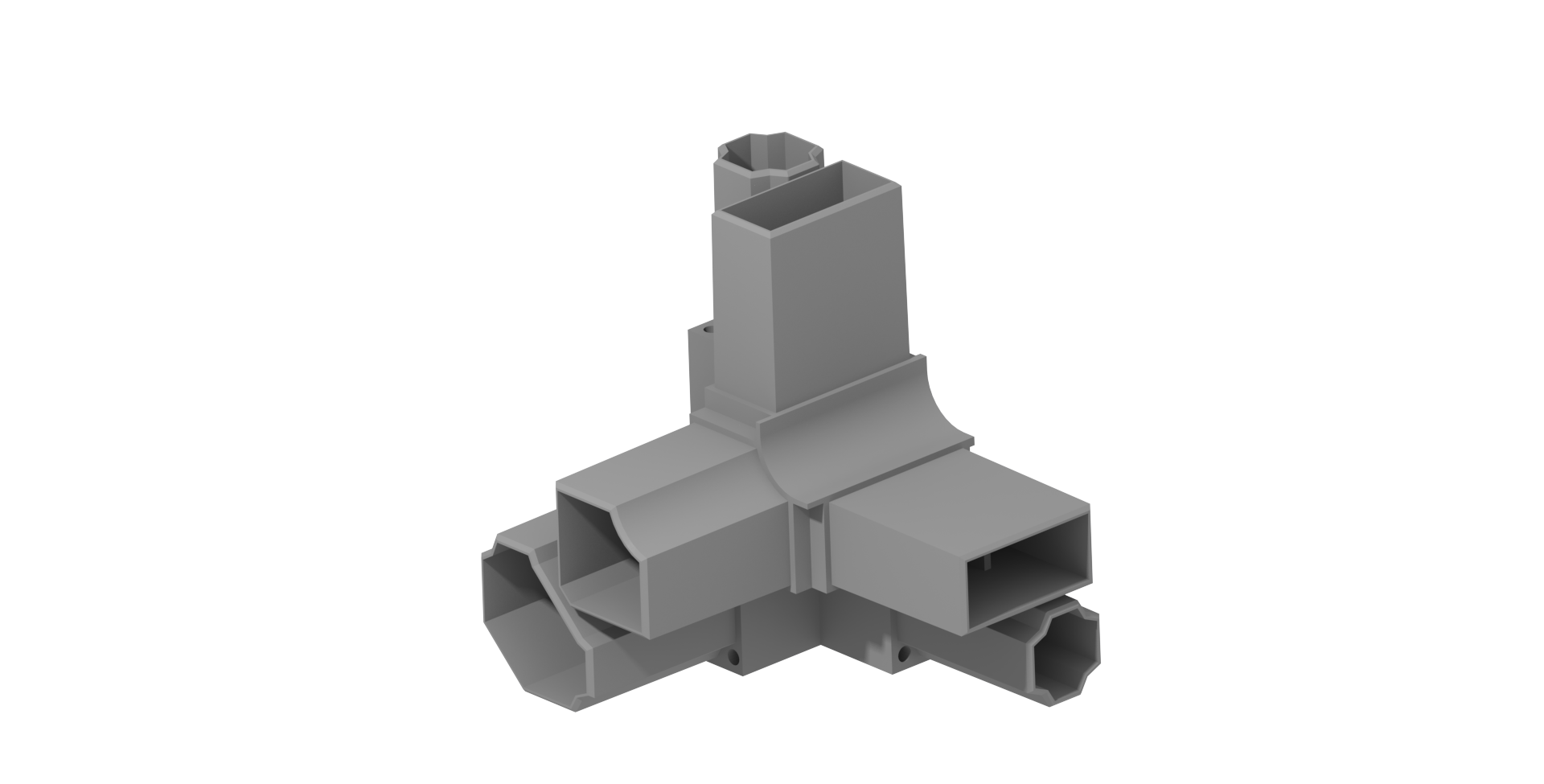

TB NYJ 4250 Internal Structural Splice Tracking Clip Key
Part Code TB NYJ 4250
Material Nylon VDI 6022
