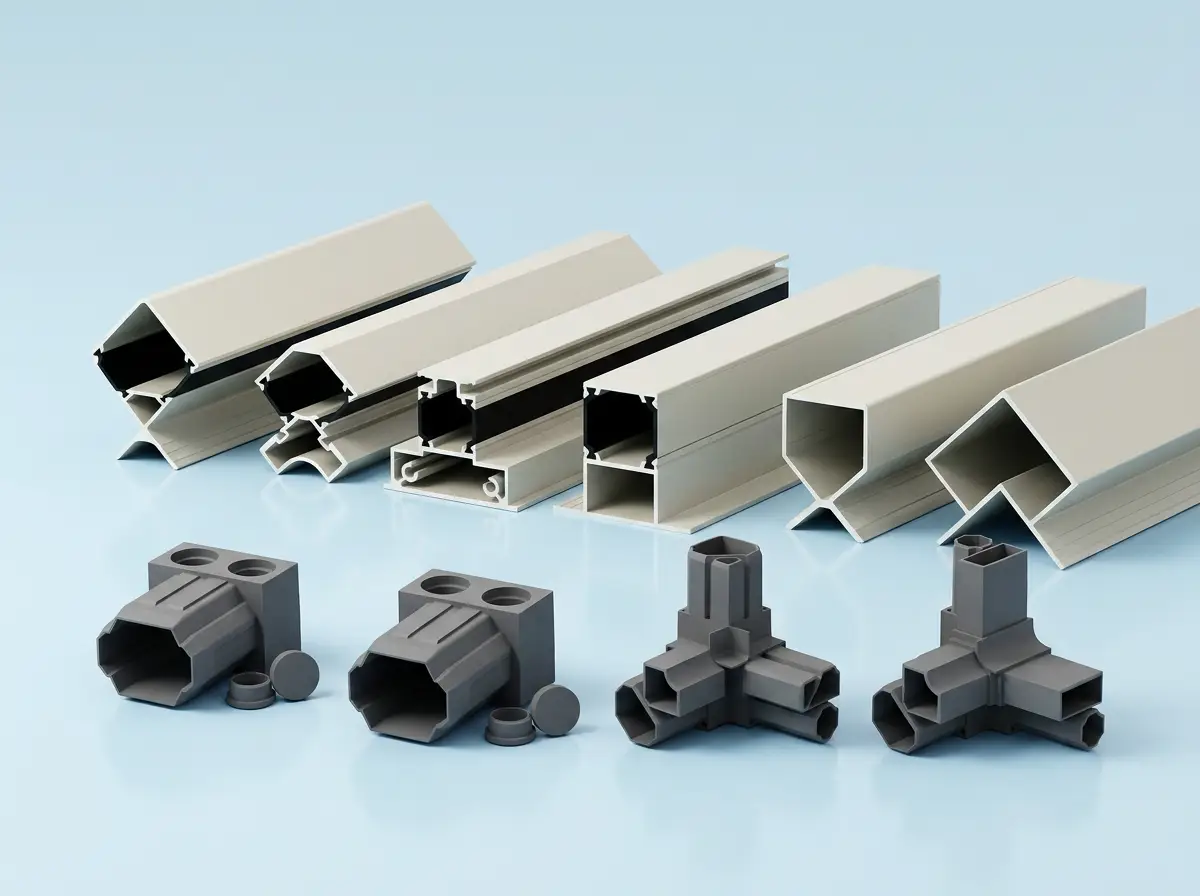

Profiles & Joiners
The structural system behind every AHU panel frame.
From 15 mm to 90 mm panel thickness. Non-thermal break for standard builds. Thermal break for energy-rated applications. Snap-fix for cleanrooms. Serration surface for enhanced panel grip. Clean room profiles for pharma-grade AHUs. Every series is a matched set - corner profile, omega profile, corner joiner, omega joiner.
HOW THE SYSTEM WORKS

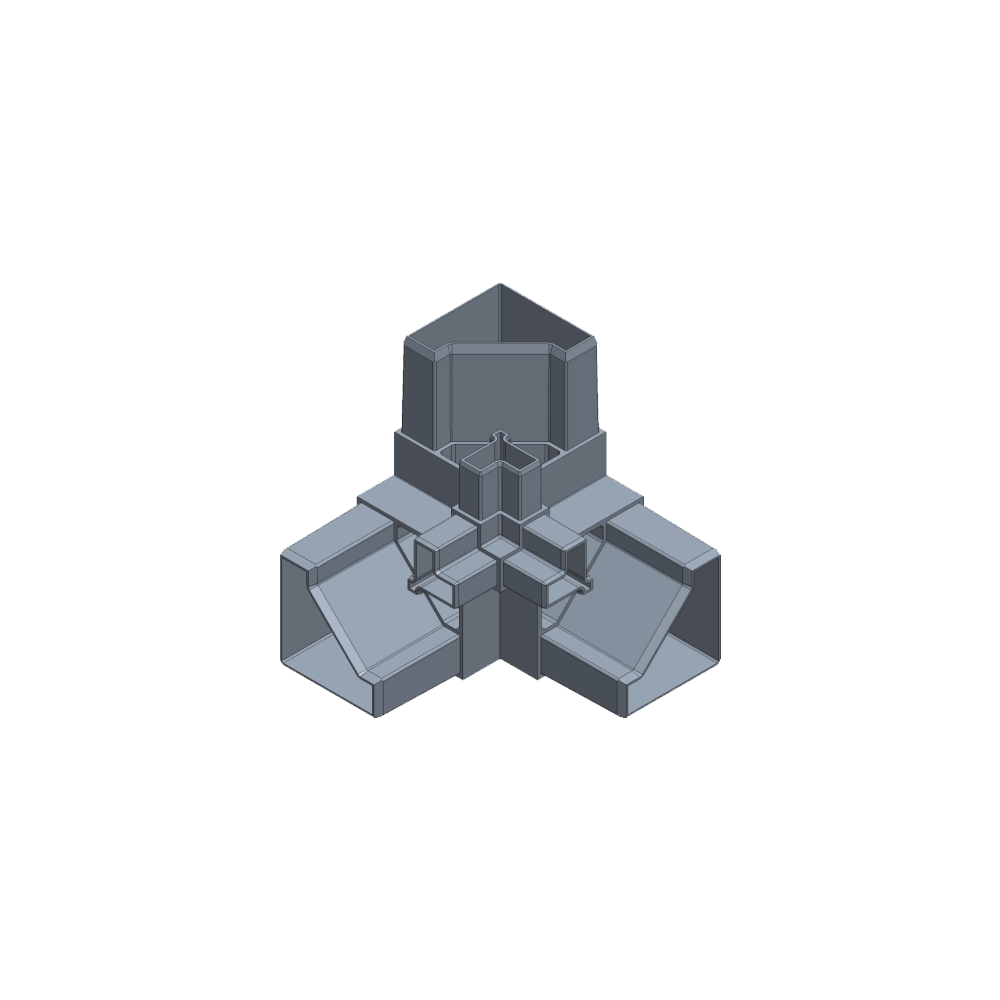

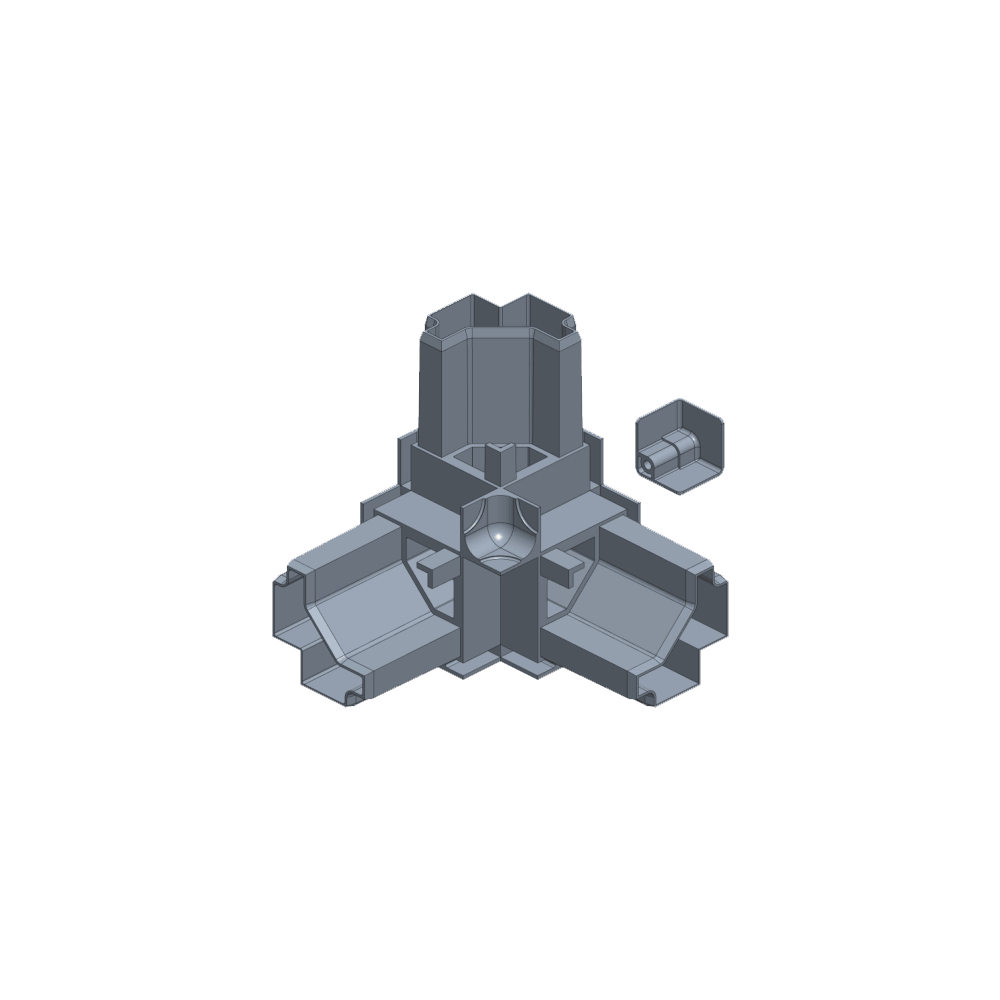

Three-armed connector at every frame corner
L-section forming the corner edge of the frame

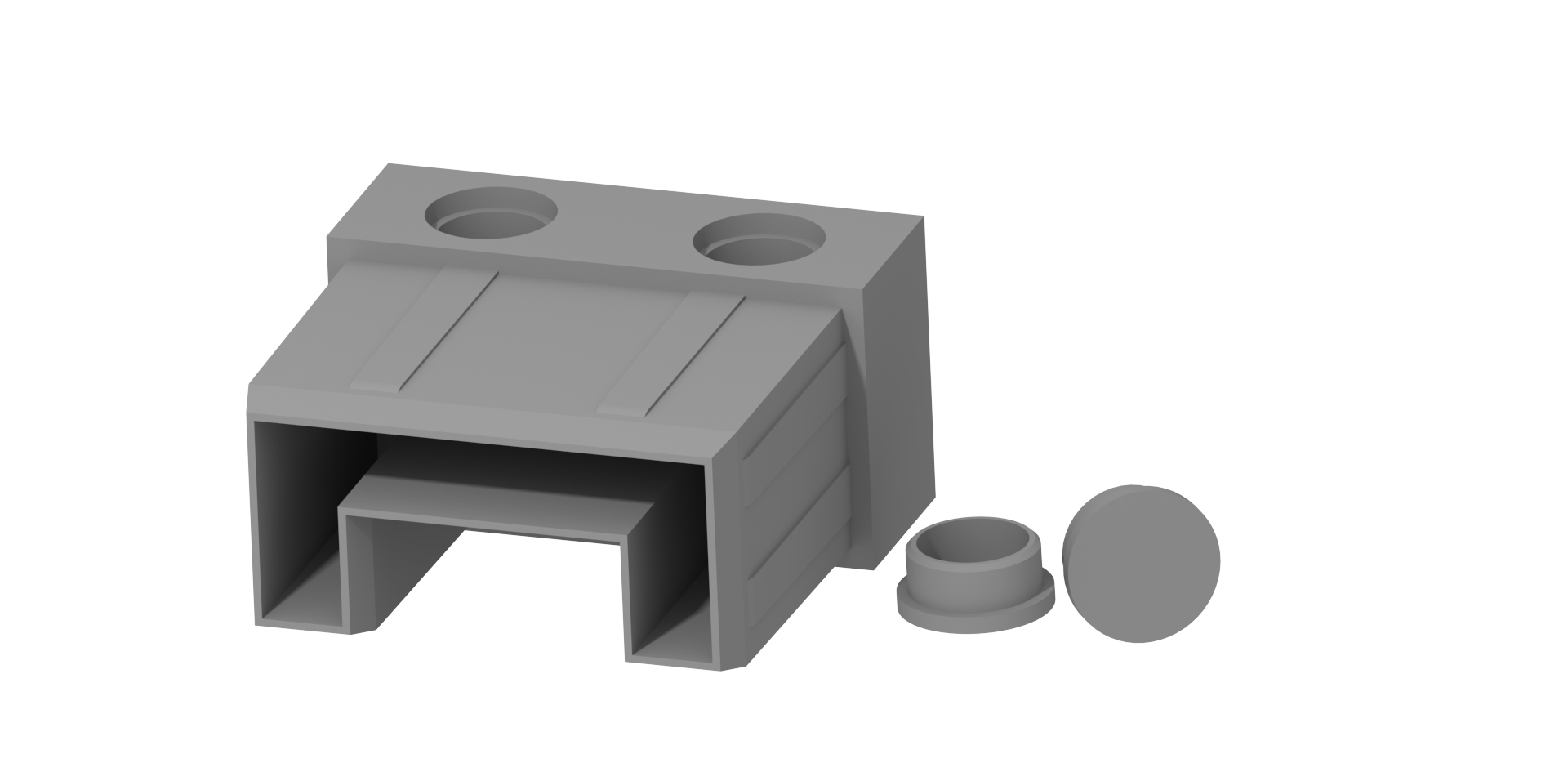

Mid-edge connector at flat panel edges
U-section forming the flat edges of the frame
SERIES OVERVIEW - NON-THERMAL BREAK
| Series | Panel Thickness | Component Part Codes Split Matrix | Notes | |||
|---|---|---|---|---|---|---|
| Profile (AL) | Joiner (NY) | Omega Profile (AL) | Omega Joiner (NY) | |||

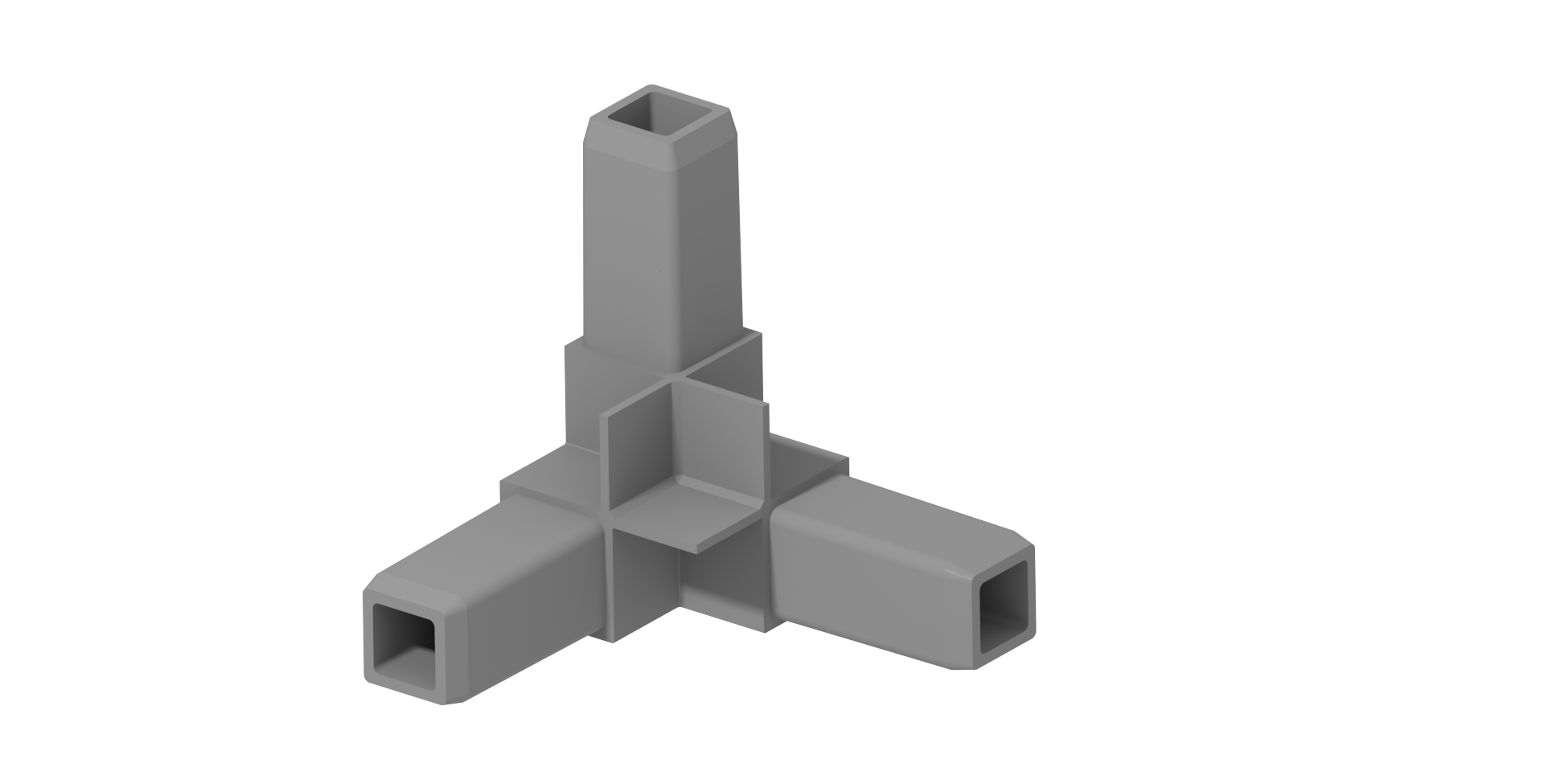

| 20-15 | 15 mm | NTB ALC 2015 | NTB NYC 2015 | - | - | - |

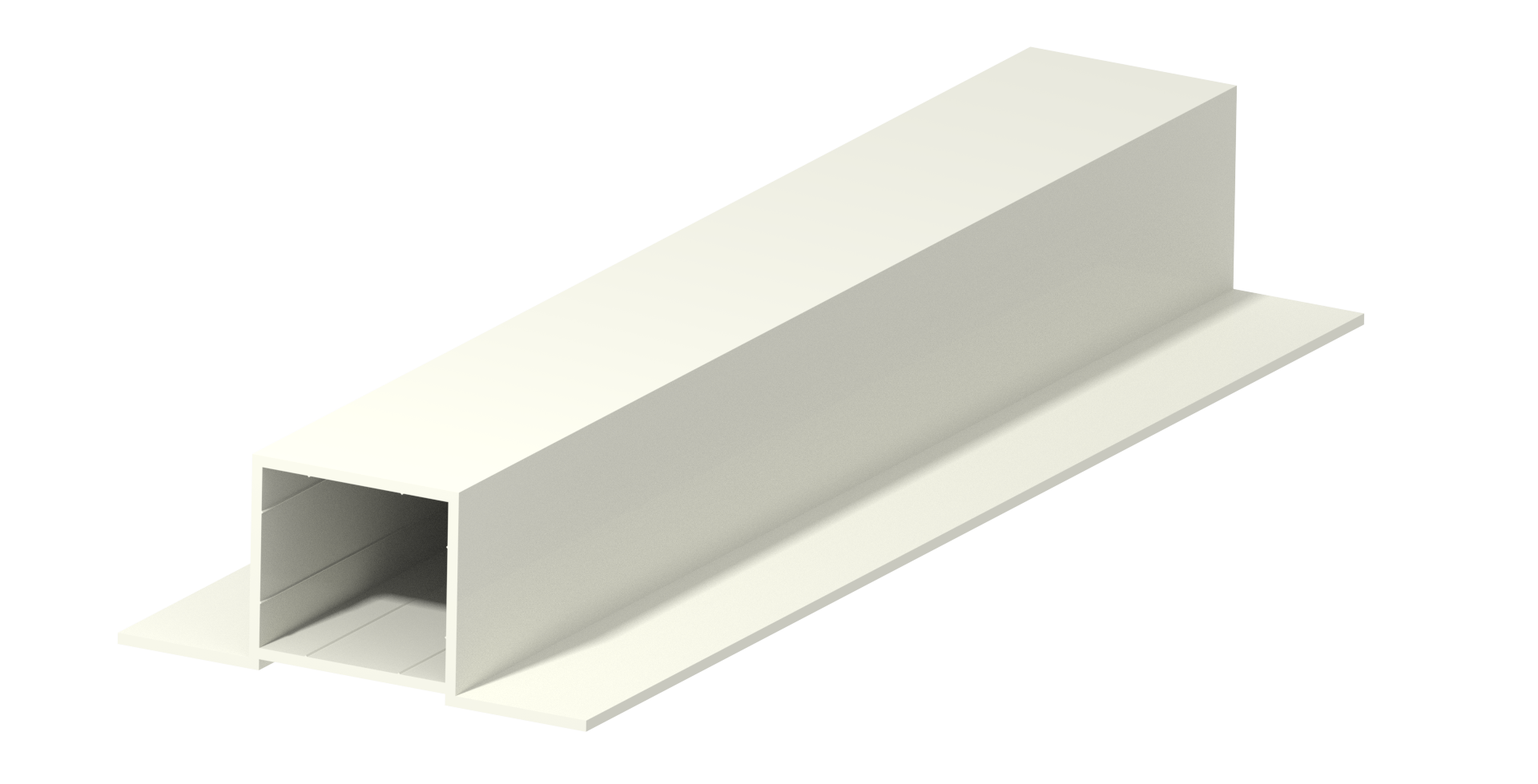

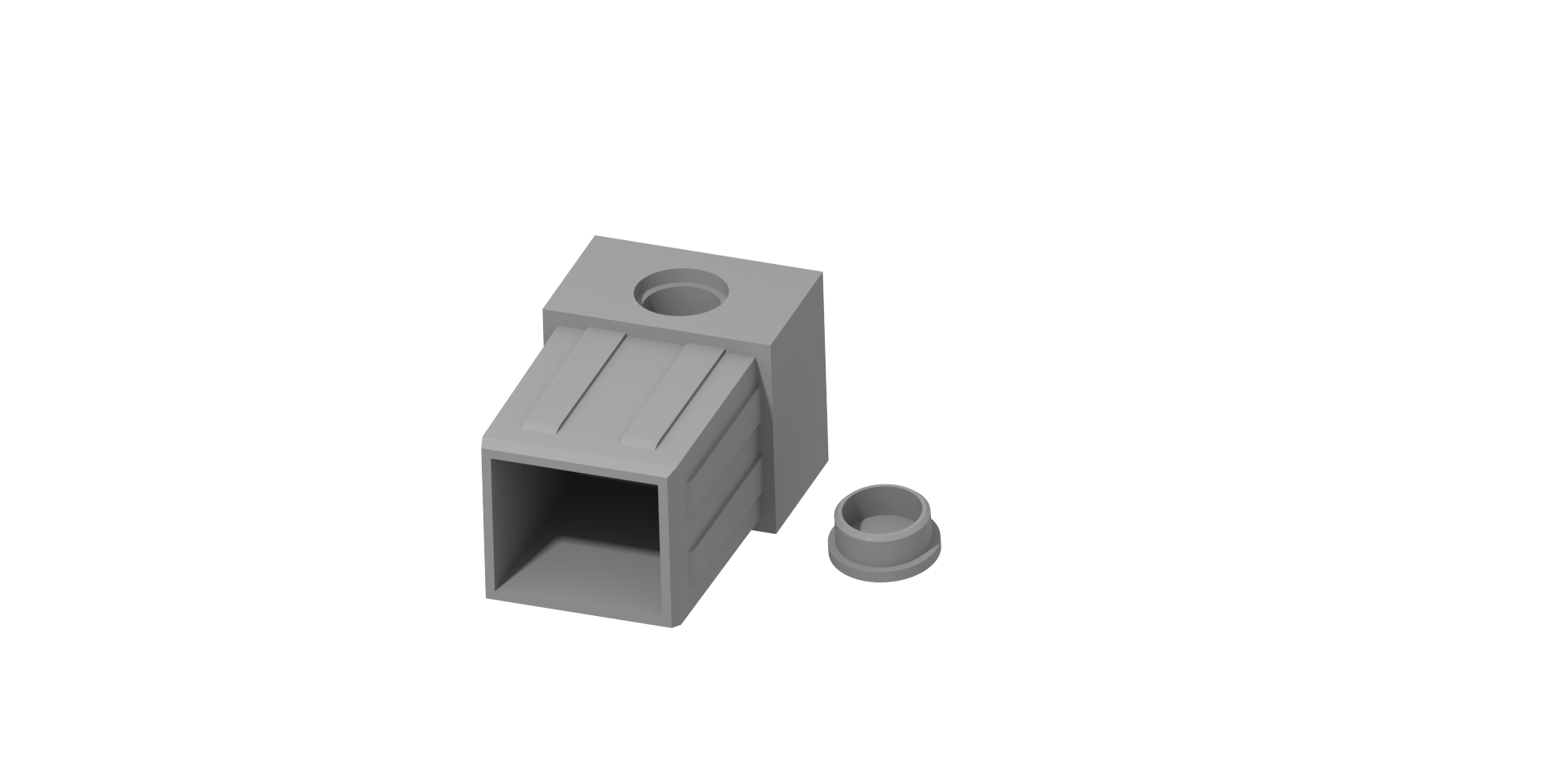

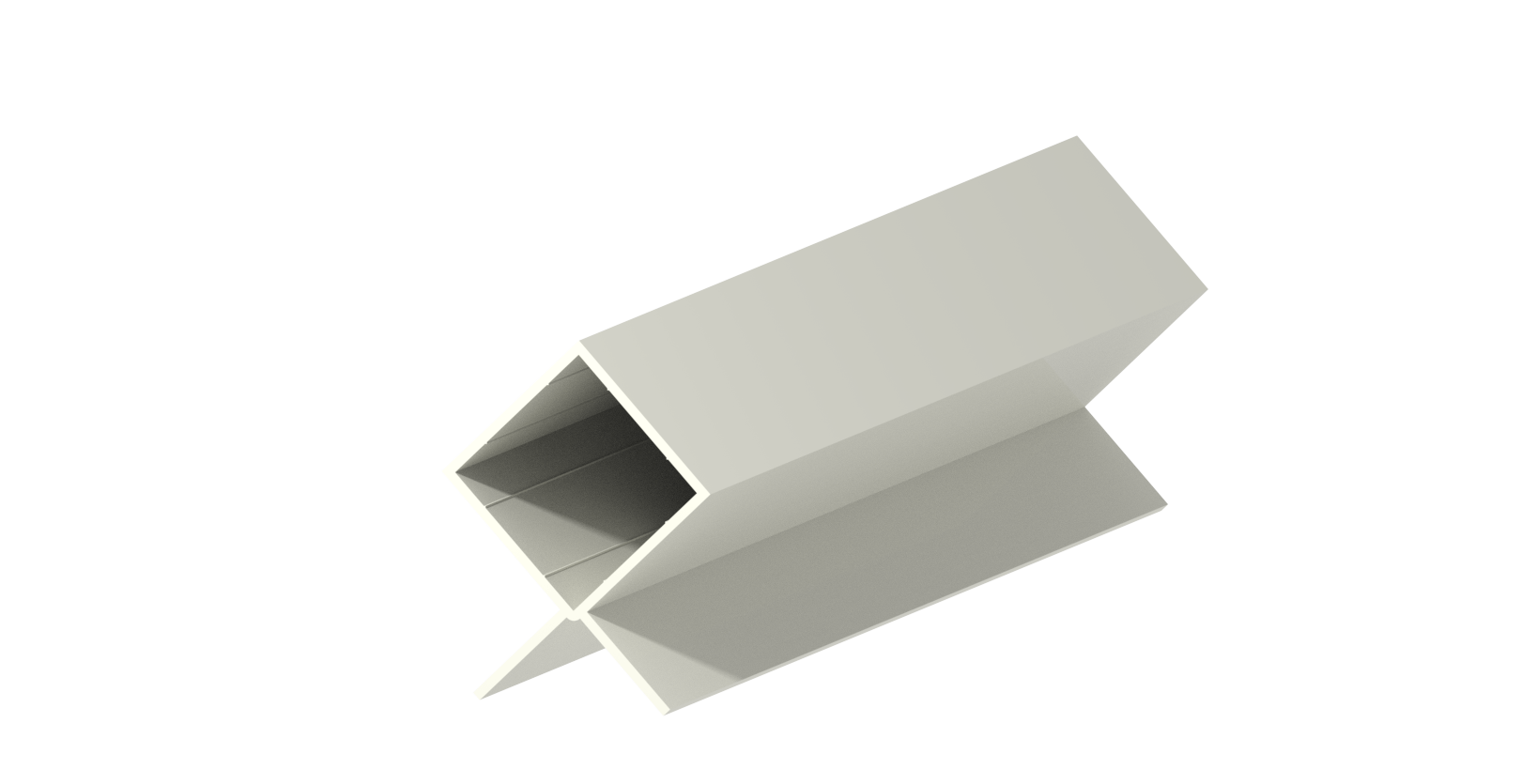

| 30-25 | 25 mm | NTB ALC 3025 | NTB NYC 3025 | NTB ALO 3025 | NTB NYO 3025 | - |

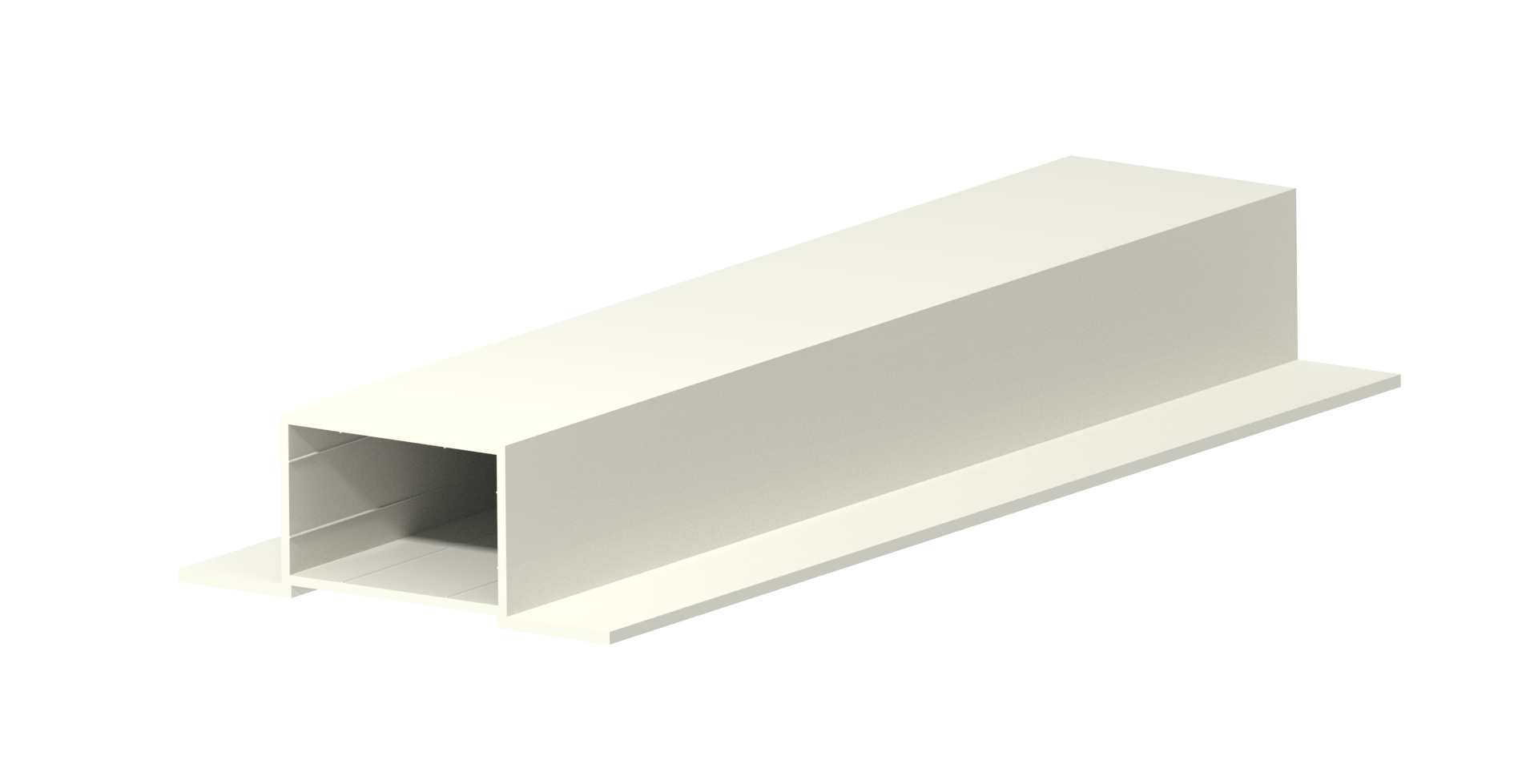

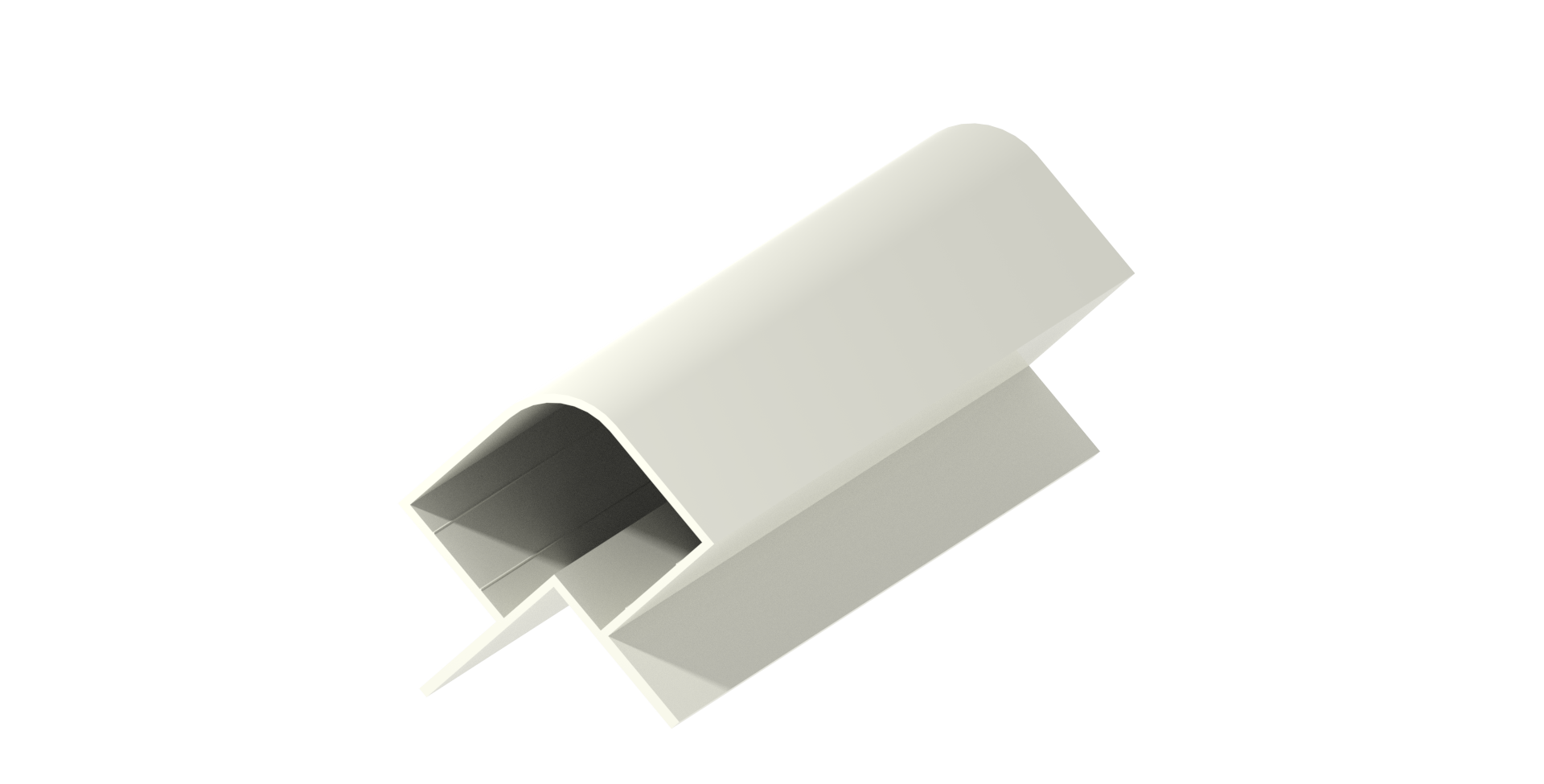

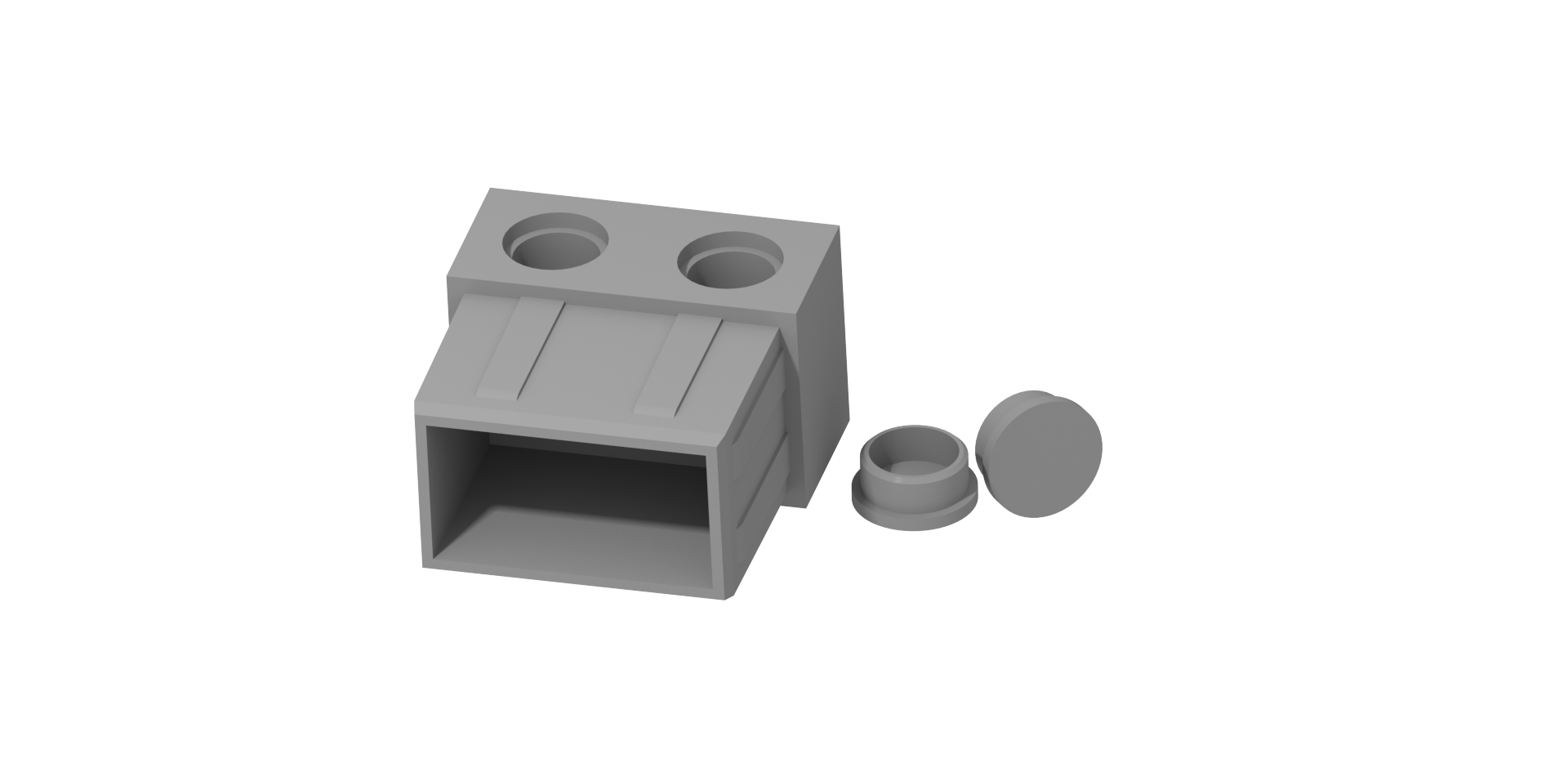

| 40-23 | 23 mm | NTB ALC 4023 | NTB NYC 4023 | NTB ALO 4023 | NTB NYO 4023 | - |

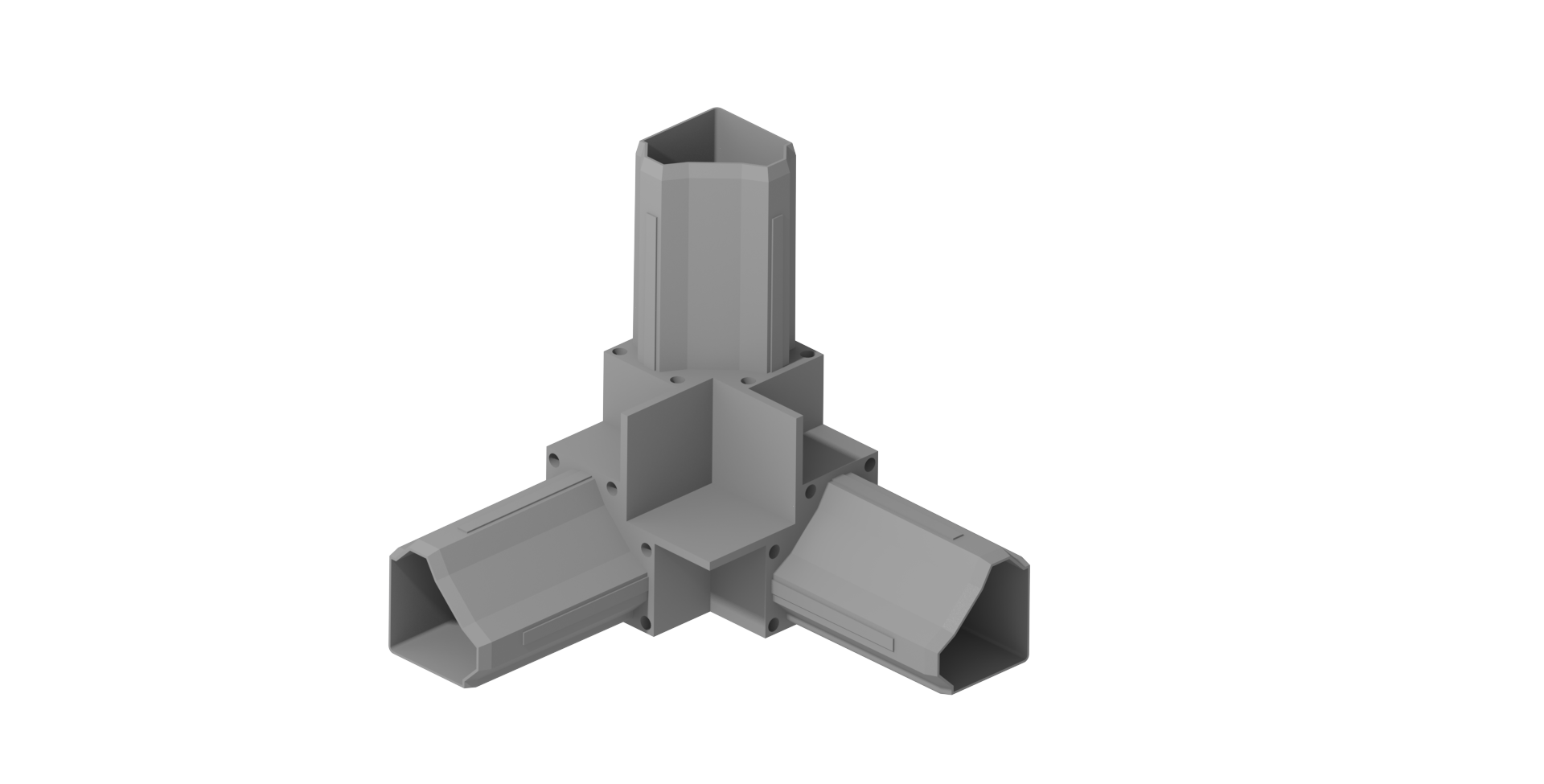

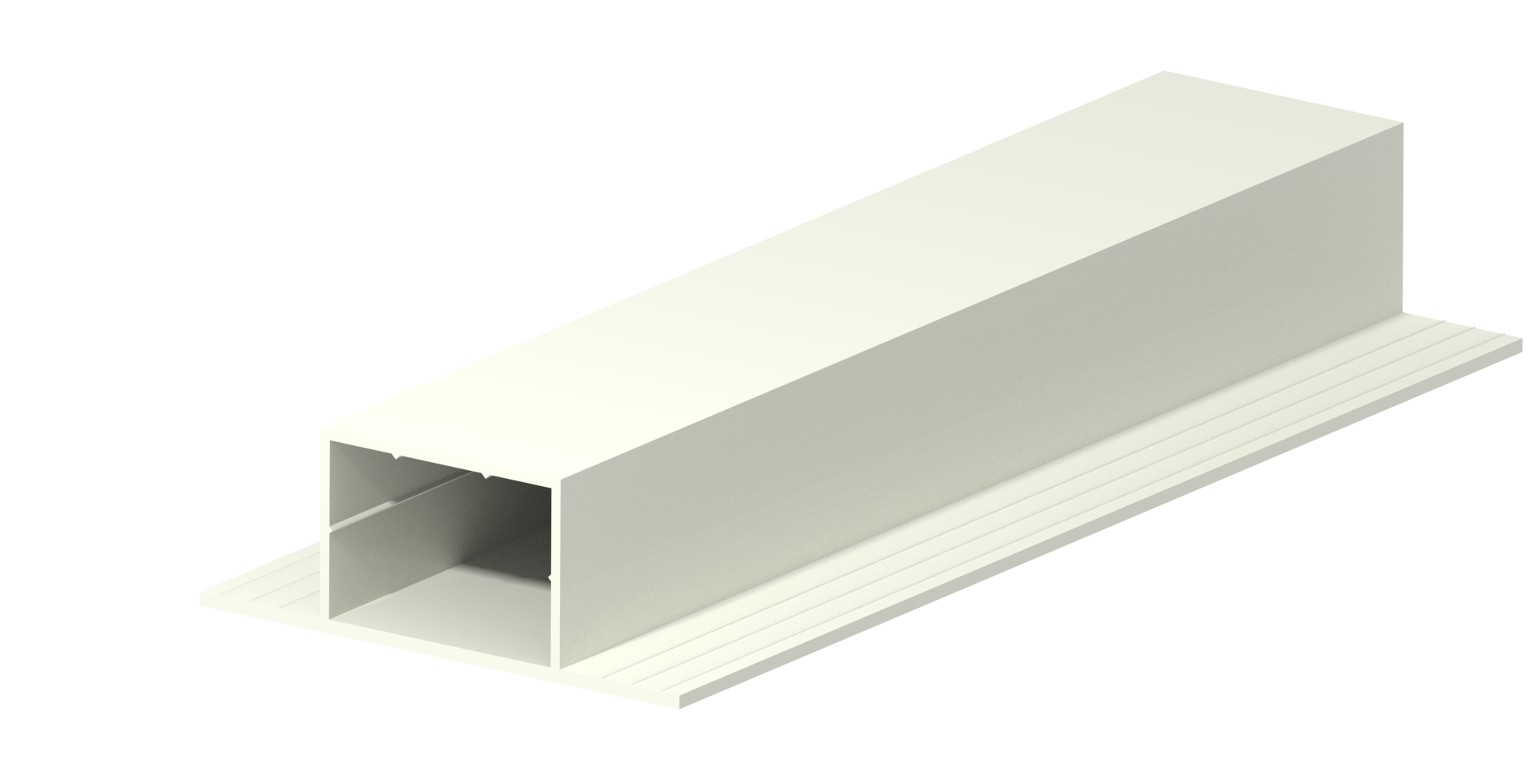

| 40-25 NTB | 25 mm | NTB ALC 4025 | NTB NYC 4025 | NTB ALO 4025 | TB NYO 4025 | - |
| 42-25 | 25 mm | NTB ALC 4225 | NTB NYC 4225 | NTB ALO 4225 | NTB NYO 4225 | - |

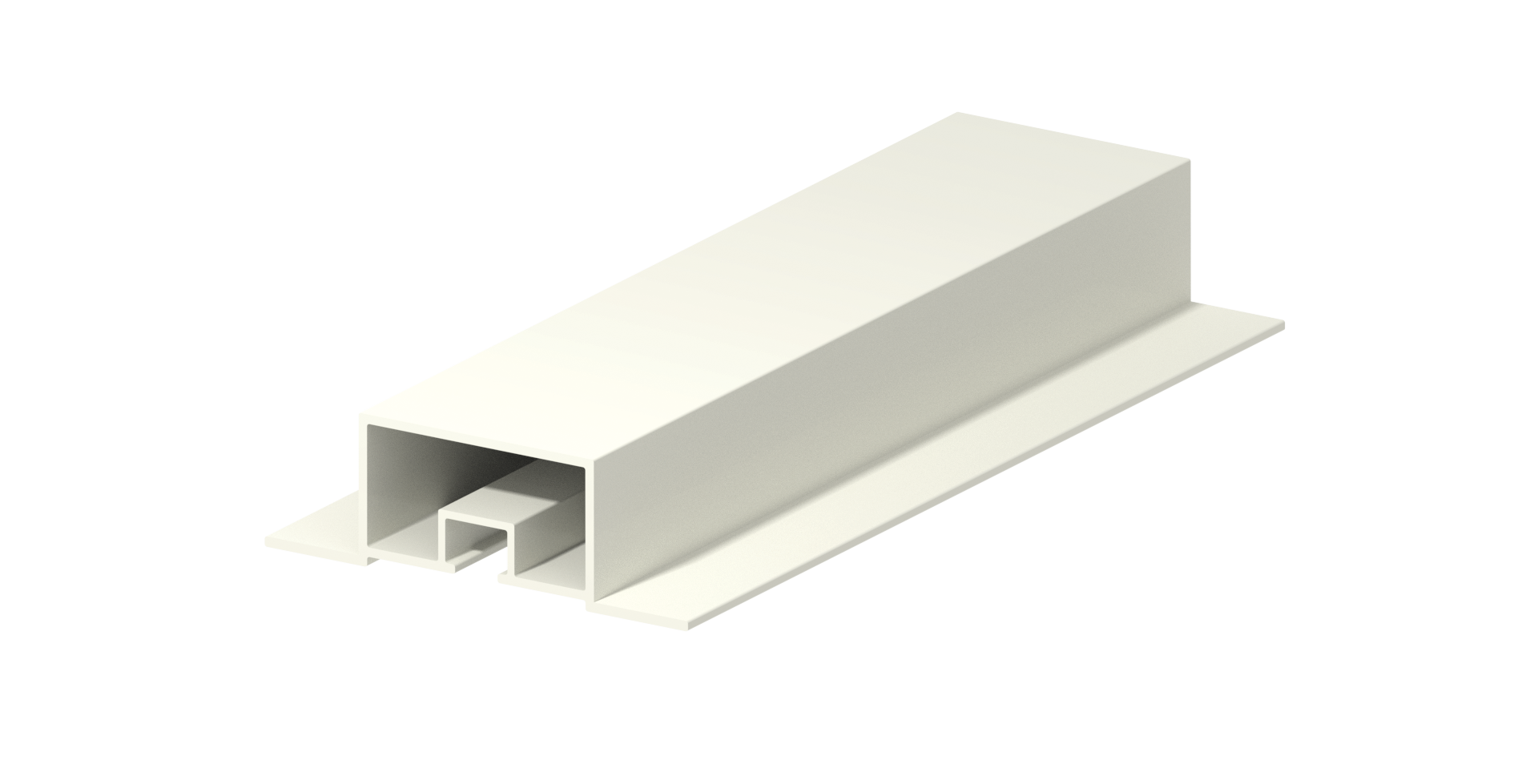

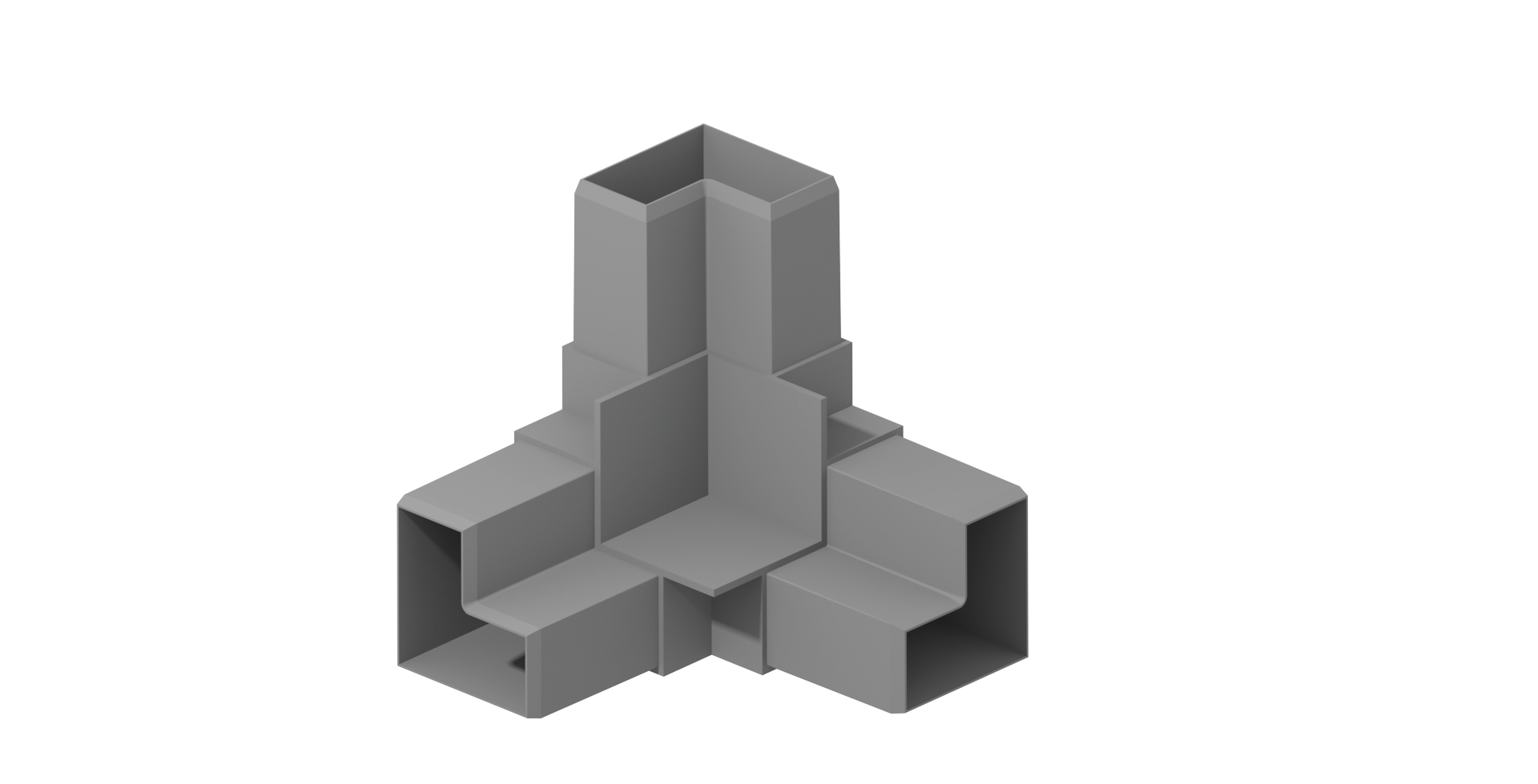

| 50-25 | 25 mm | NTB ALC 5025 | NTB NYC 5025 | NTB ALO 5025 | NTB NYO 5025 | - |

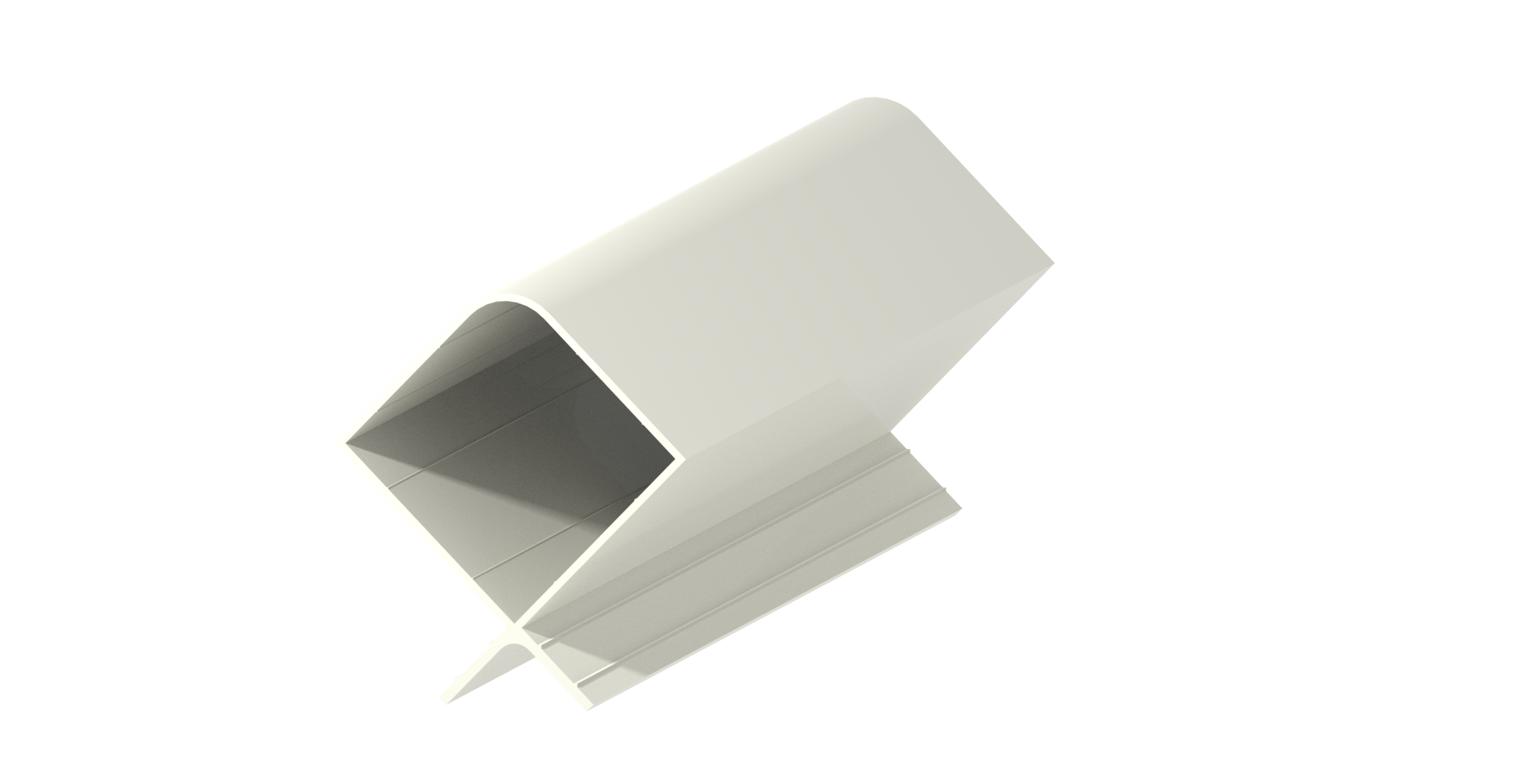

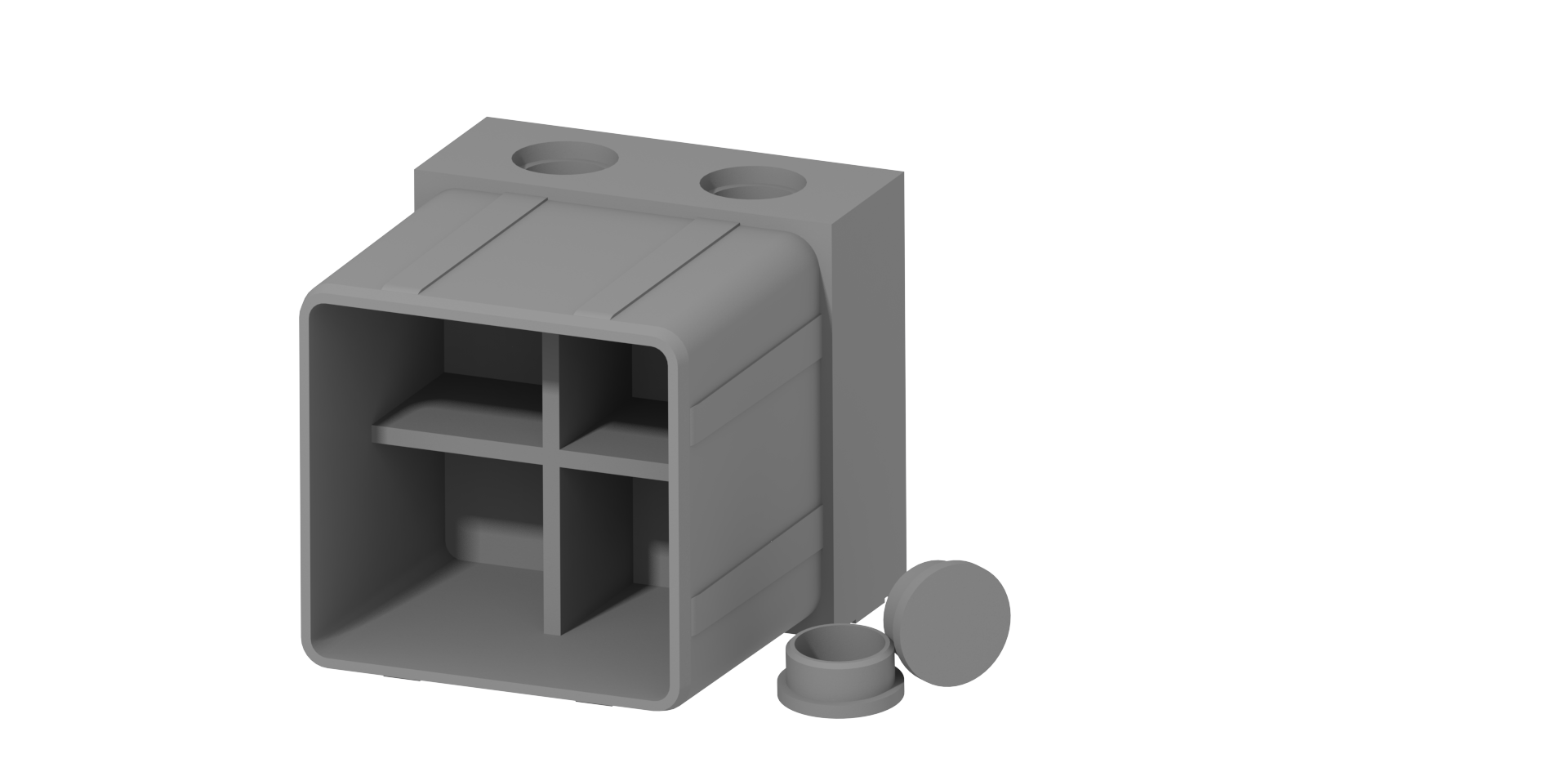

| 50-45-1 | 45 mm | NTB ALC 5045-1 | NTB NYC 5045-1 | NTB ALO 5045-1 | NTB NYO 5045-1 | - |

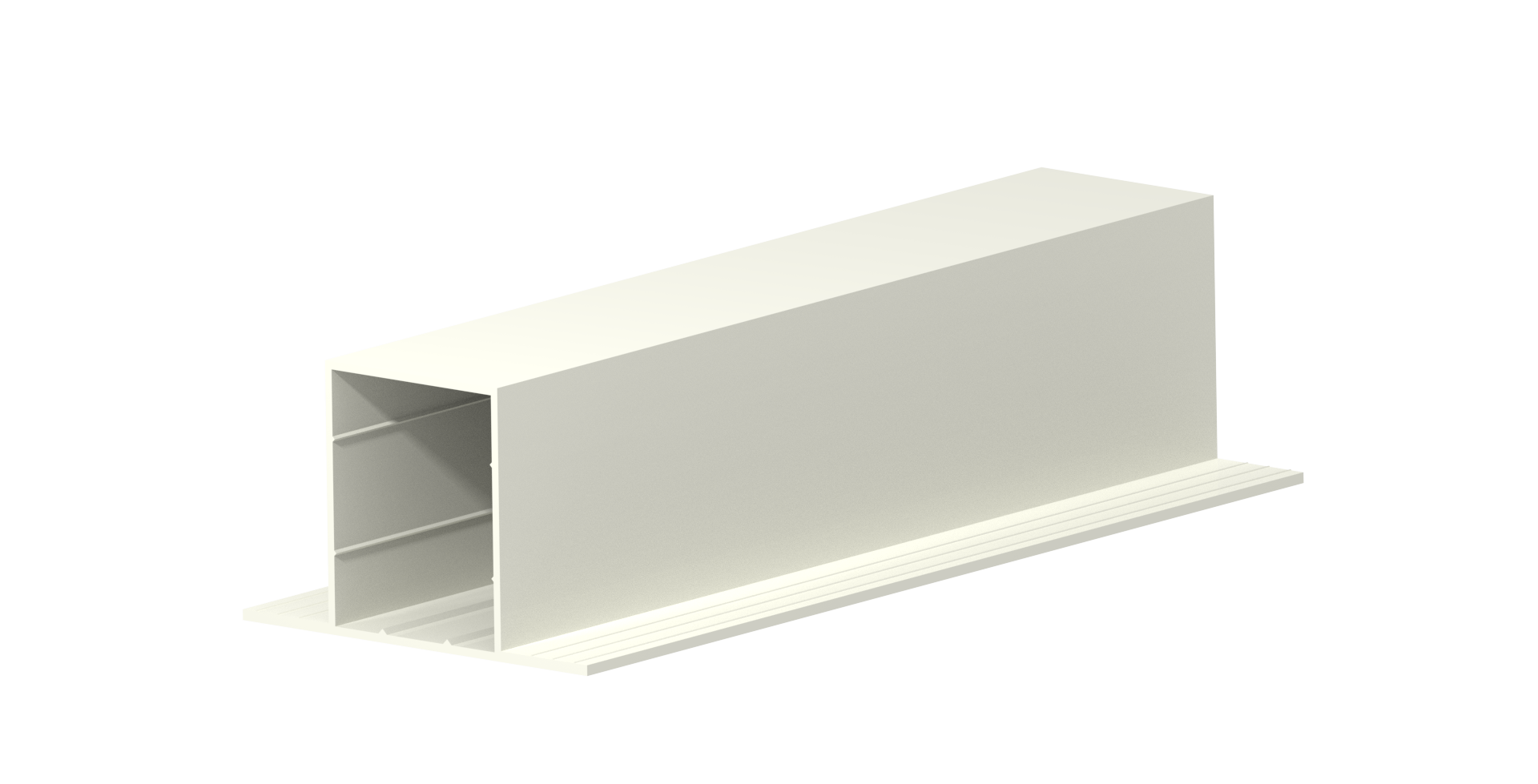

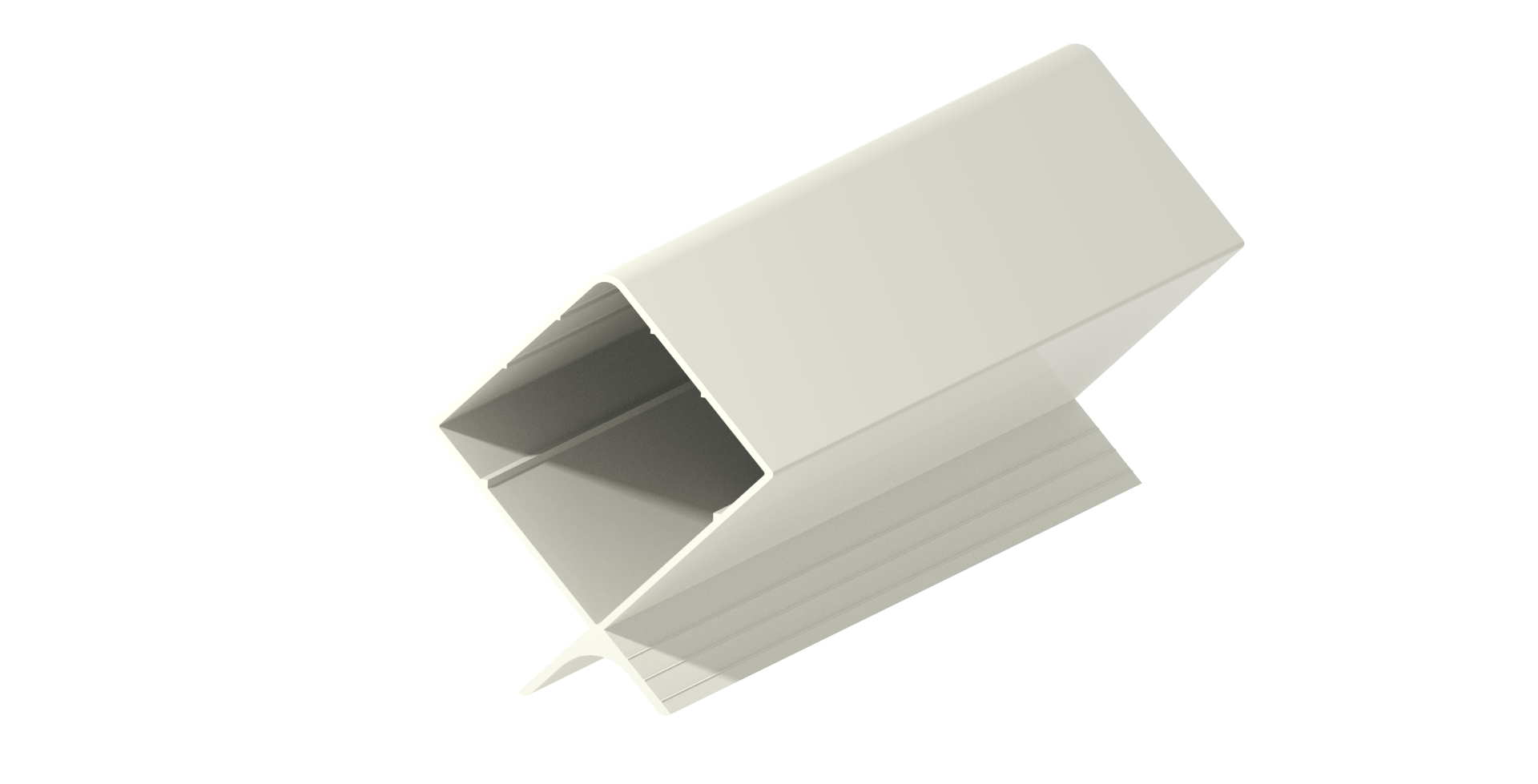

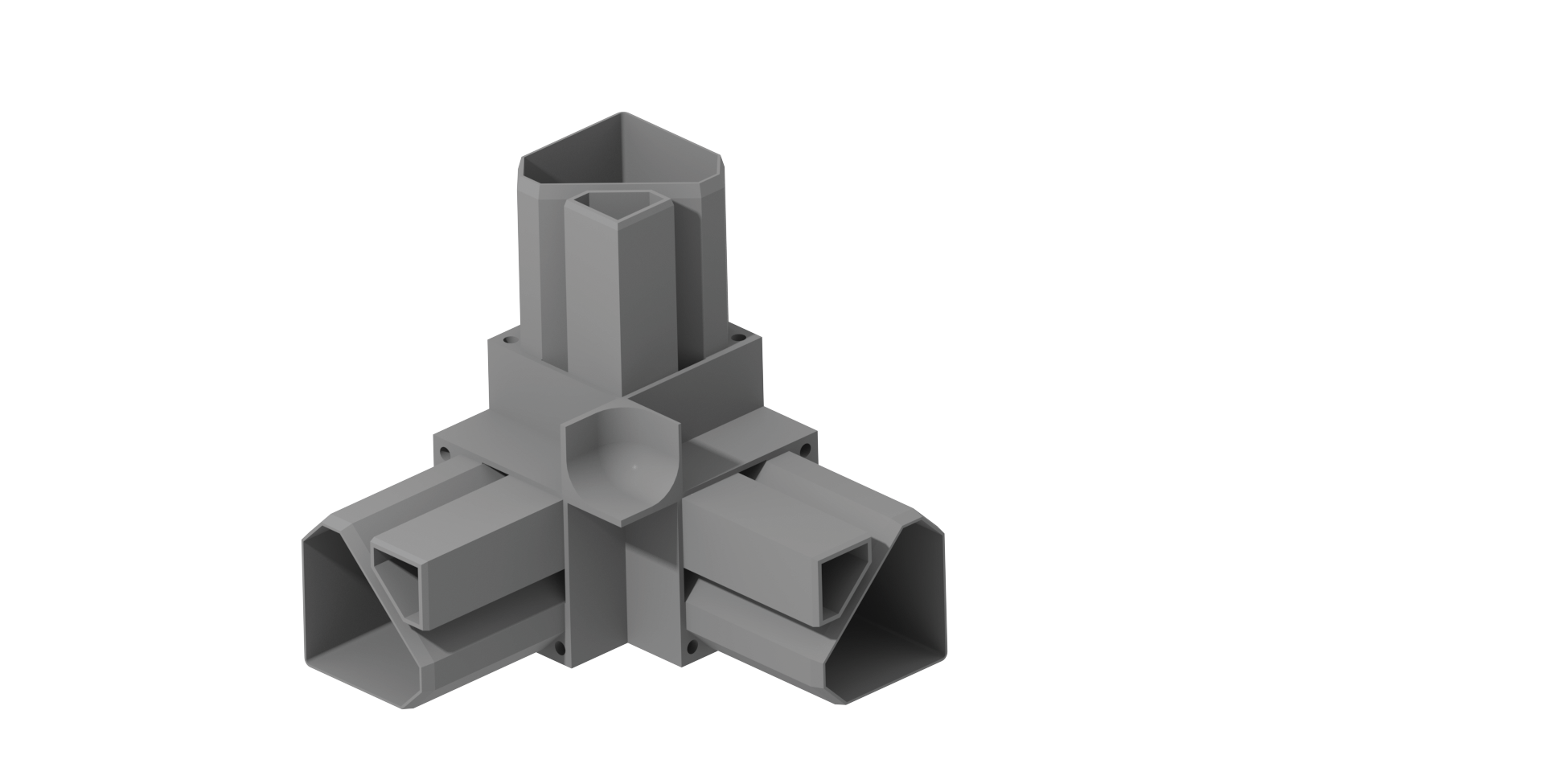

| 50-45-2 | 45 mm | NTB ALC 5045-2 | TB NYCC 5045 | NTB ALO 5045-2 | TB NYO 5045 | NTB profile + TB joiner |
SERIES OVERVIEW - THERMAL BREAK
| Series | Panel Thickness | Component Part Codes Split Matrix | Notes | |||
|---|---|---|---|---|---|---|
| Profile (AL) | Joiner (NY) | Omega Profile (AL) | Omega Joiner (NY) | |||

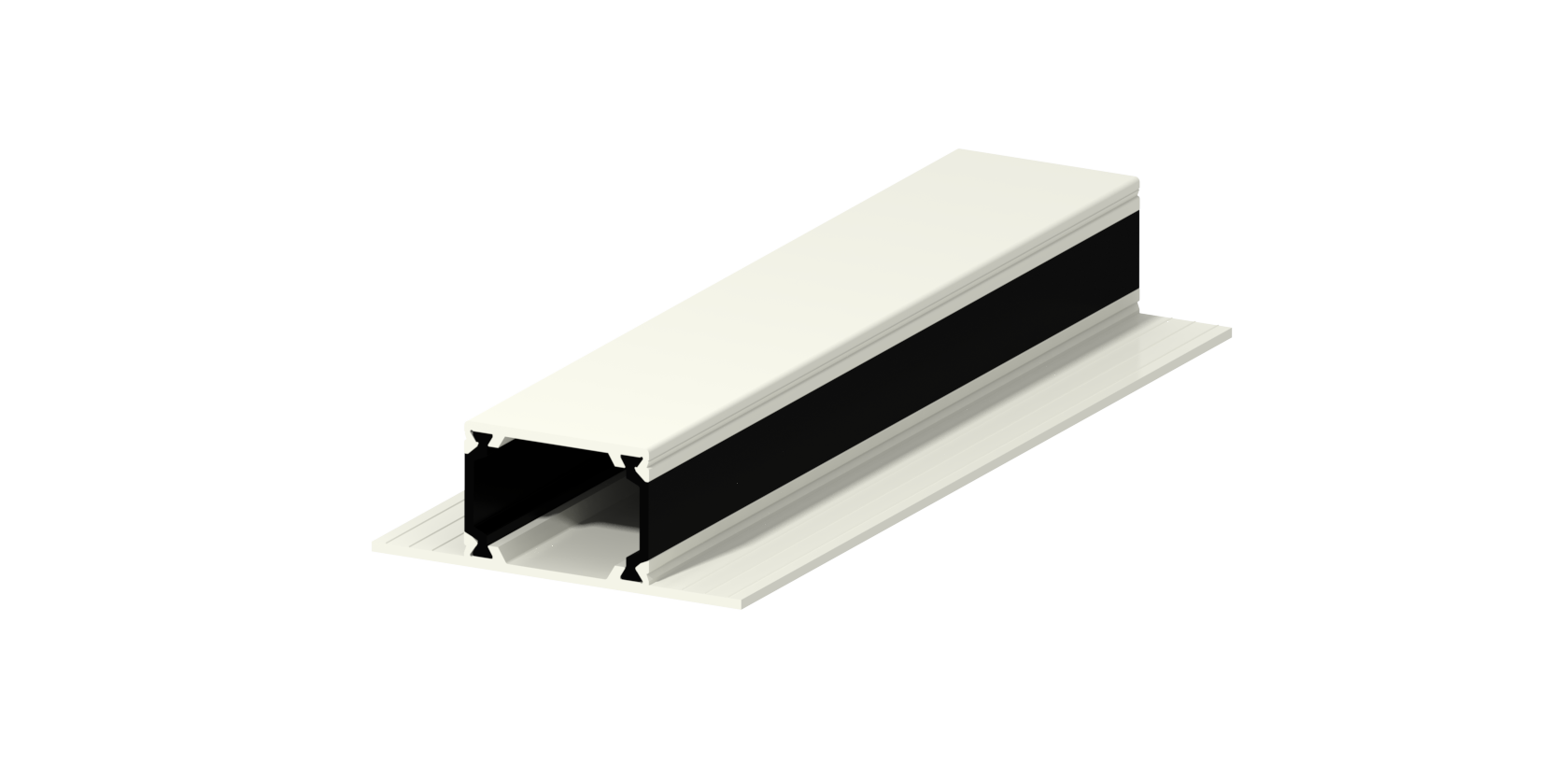

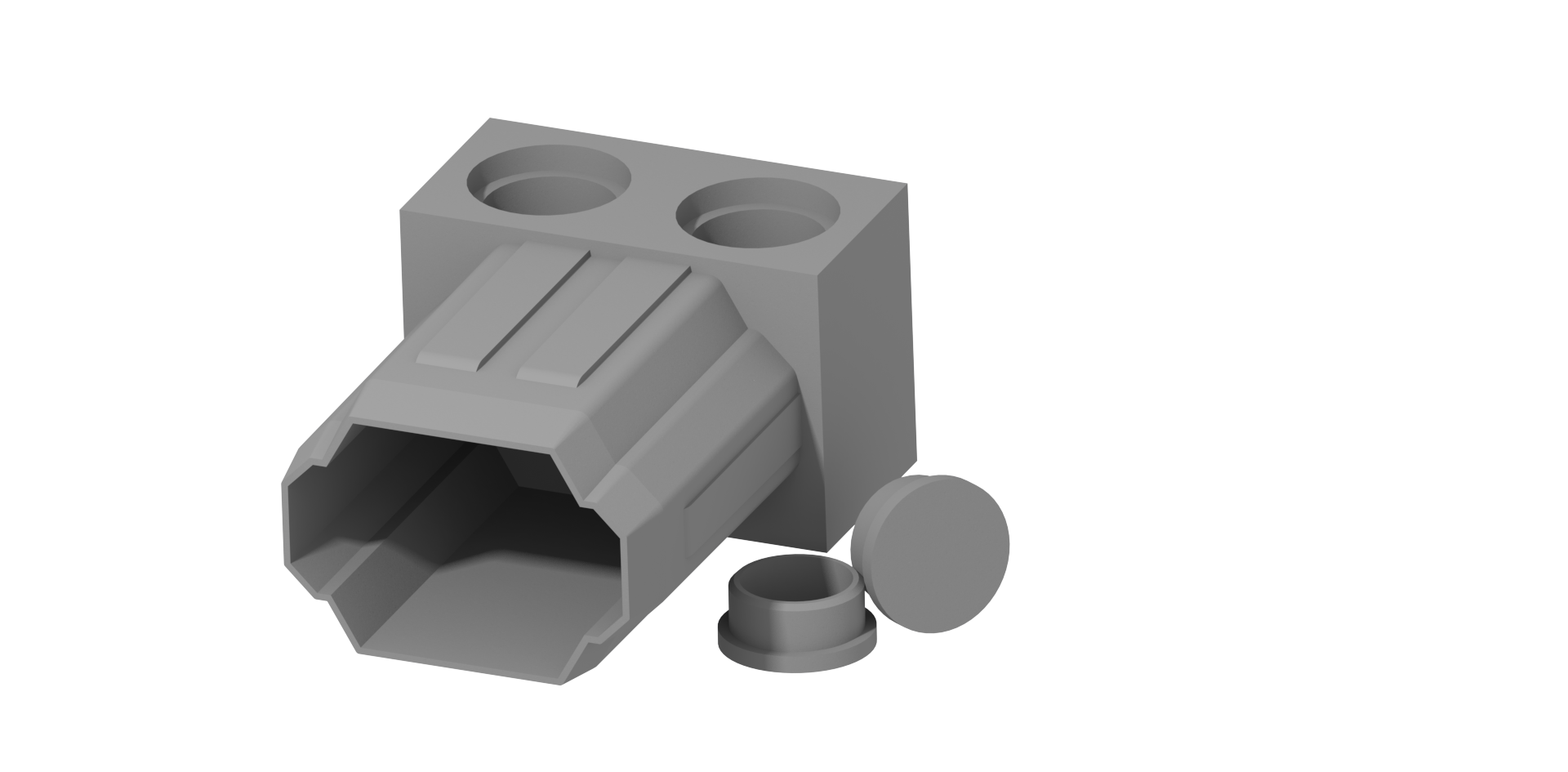

| 40-25 TB | 25 mm | TB ALC 4025 | TB NYC 4025 | TB ALO 4025 | TB NYO 4025 | - |

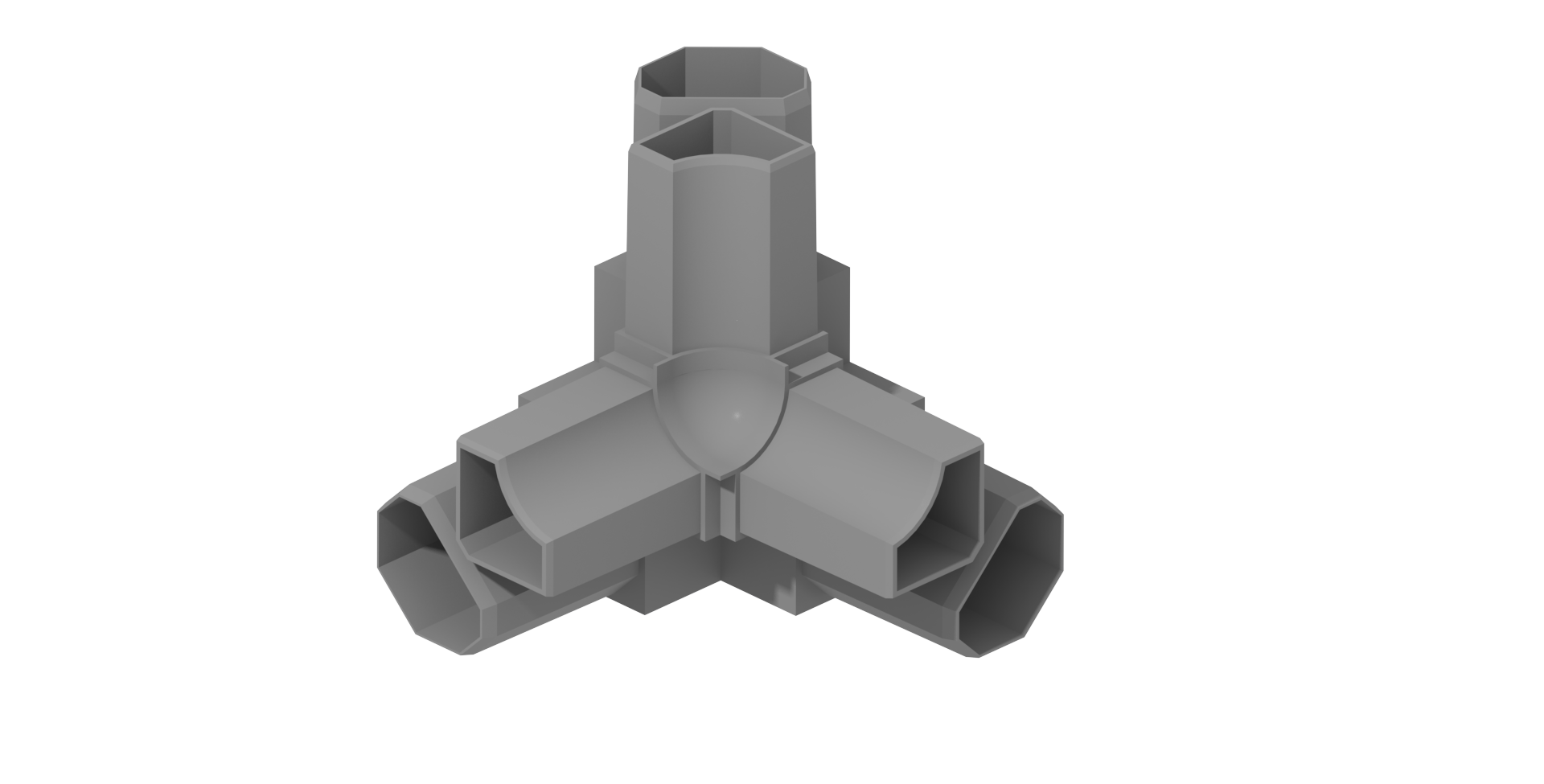

| 42-45 | 45 mm | TB ALC 4245 | TB NYC 4245 | TB ALO 4245 | TB NYO 4245 | + Section Joining · Inner Open Door · Clean Room compatible |

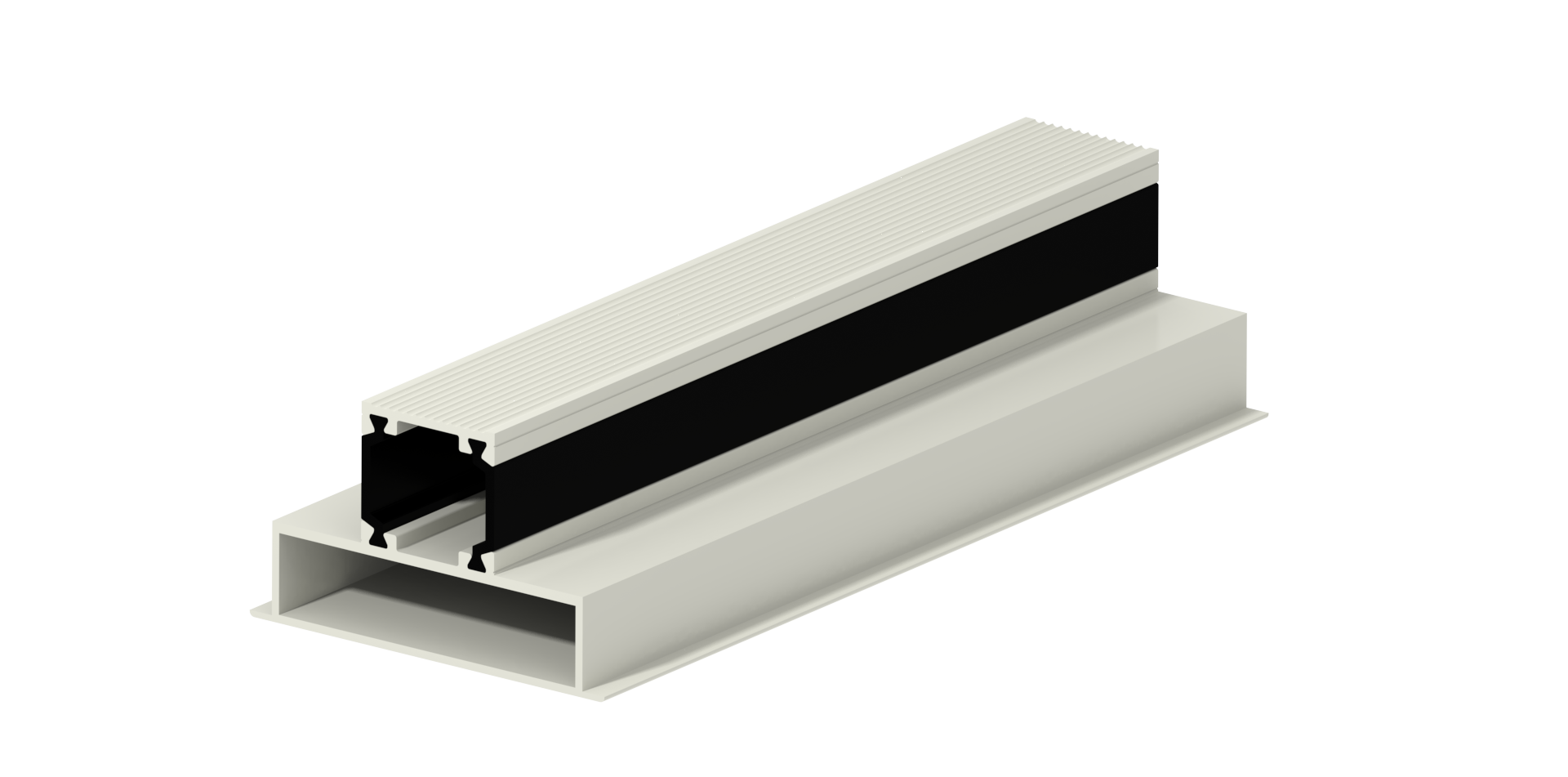

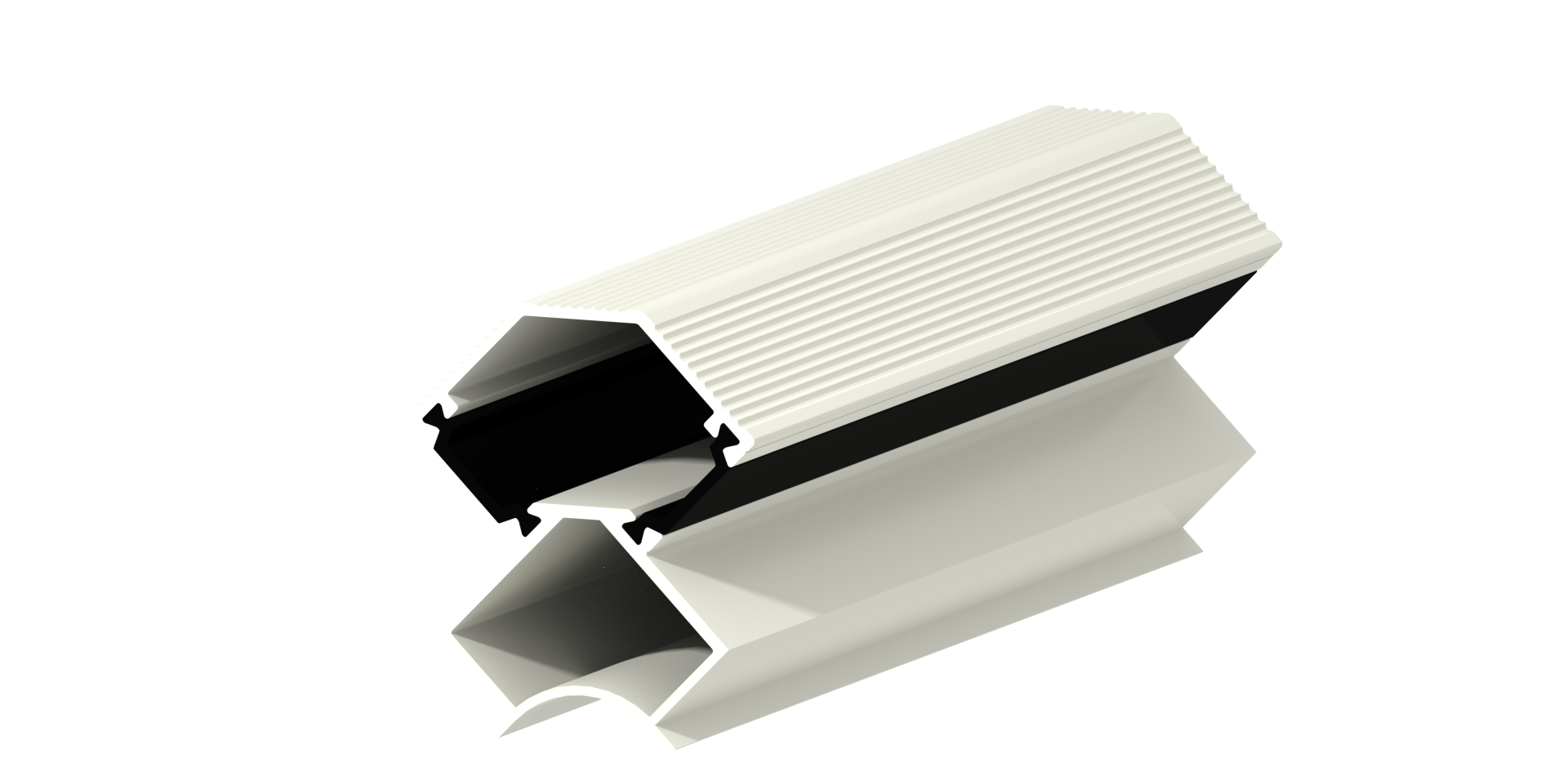

| SR 42-45 | 45 mm | TB ALSRC 4245 | - | TB ALSRO 4245 | - | Serration Surface · + Section Joining |

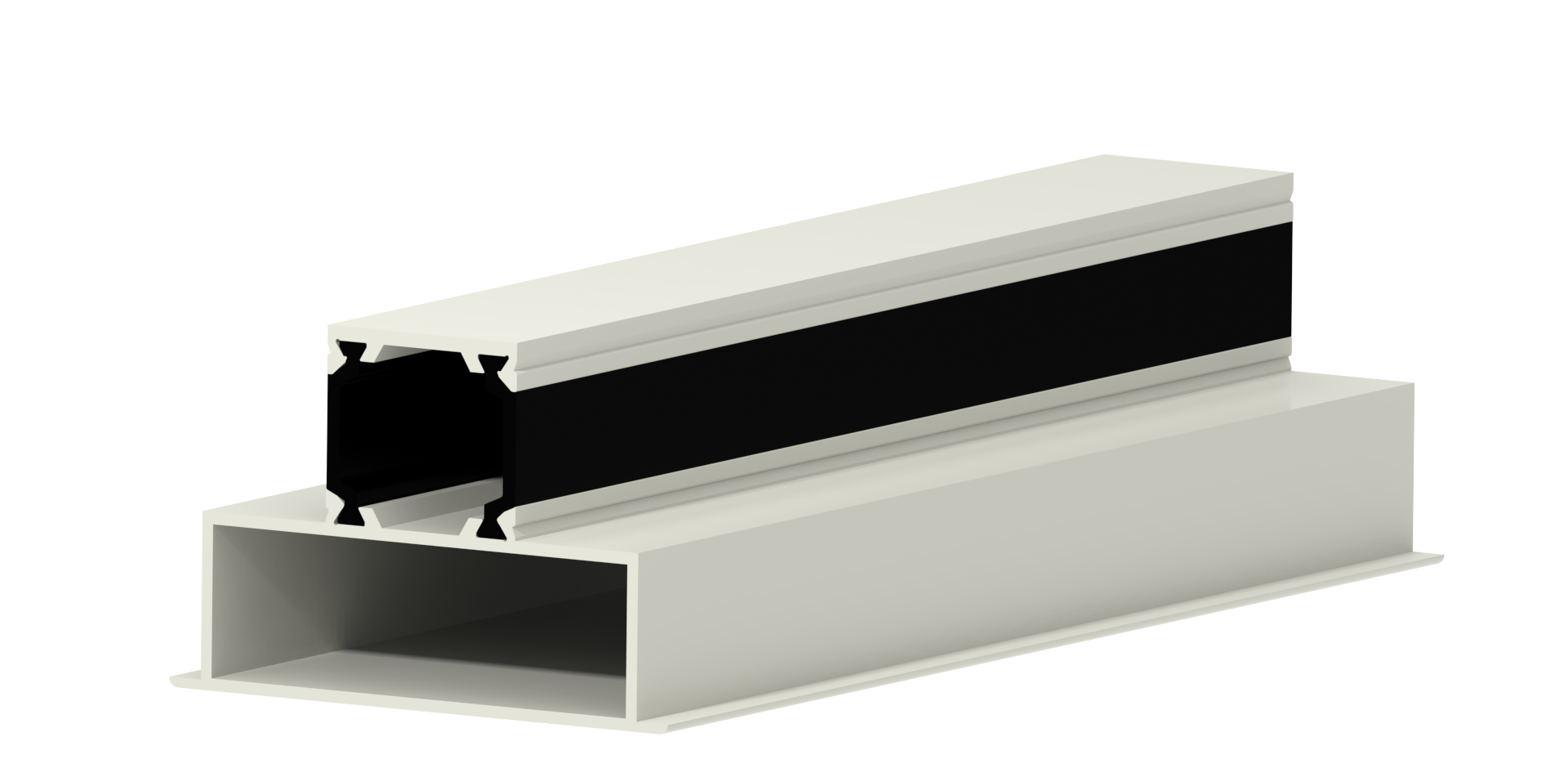

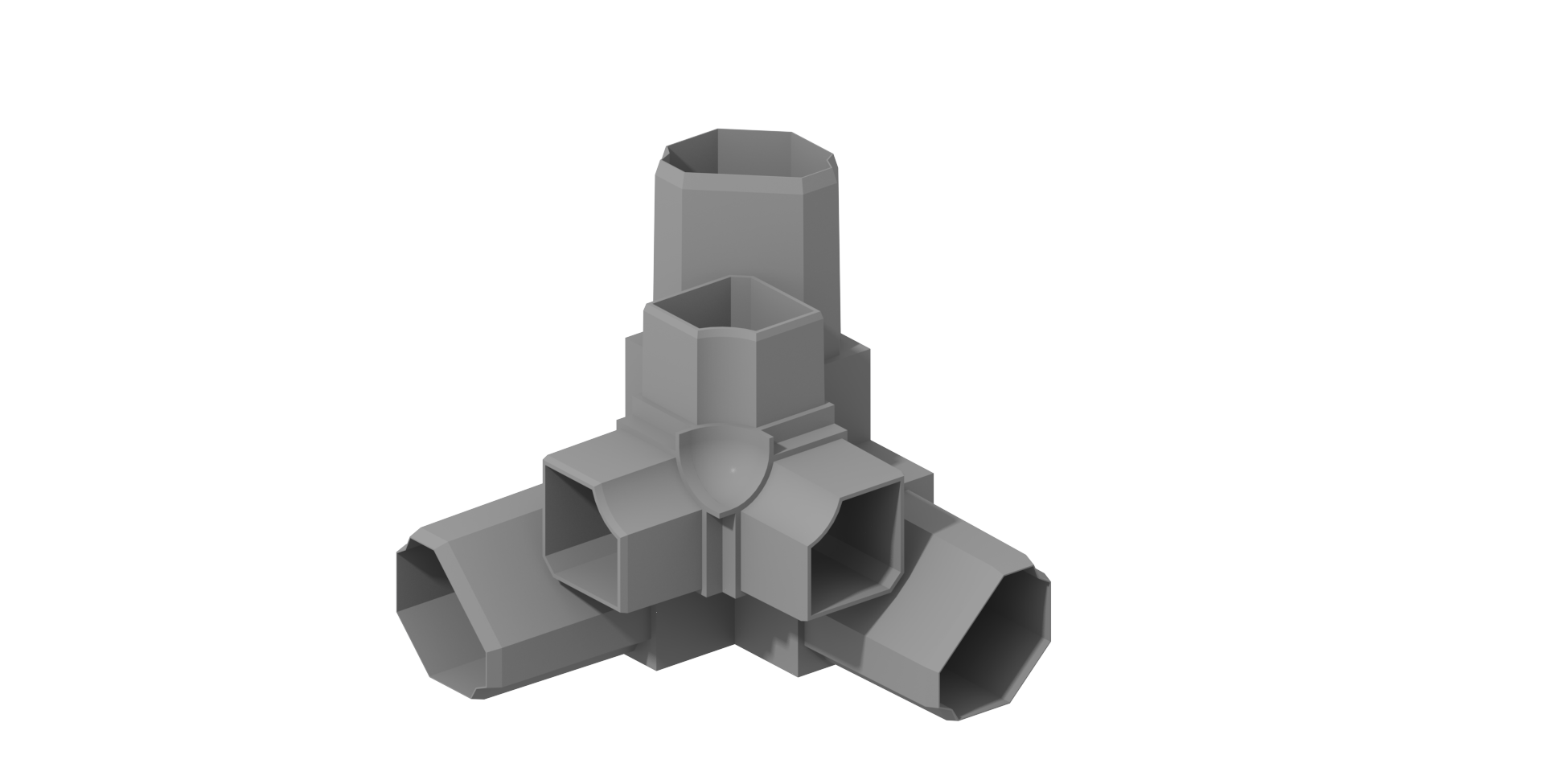

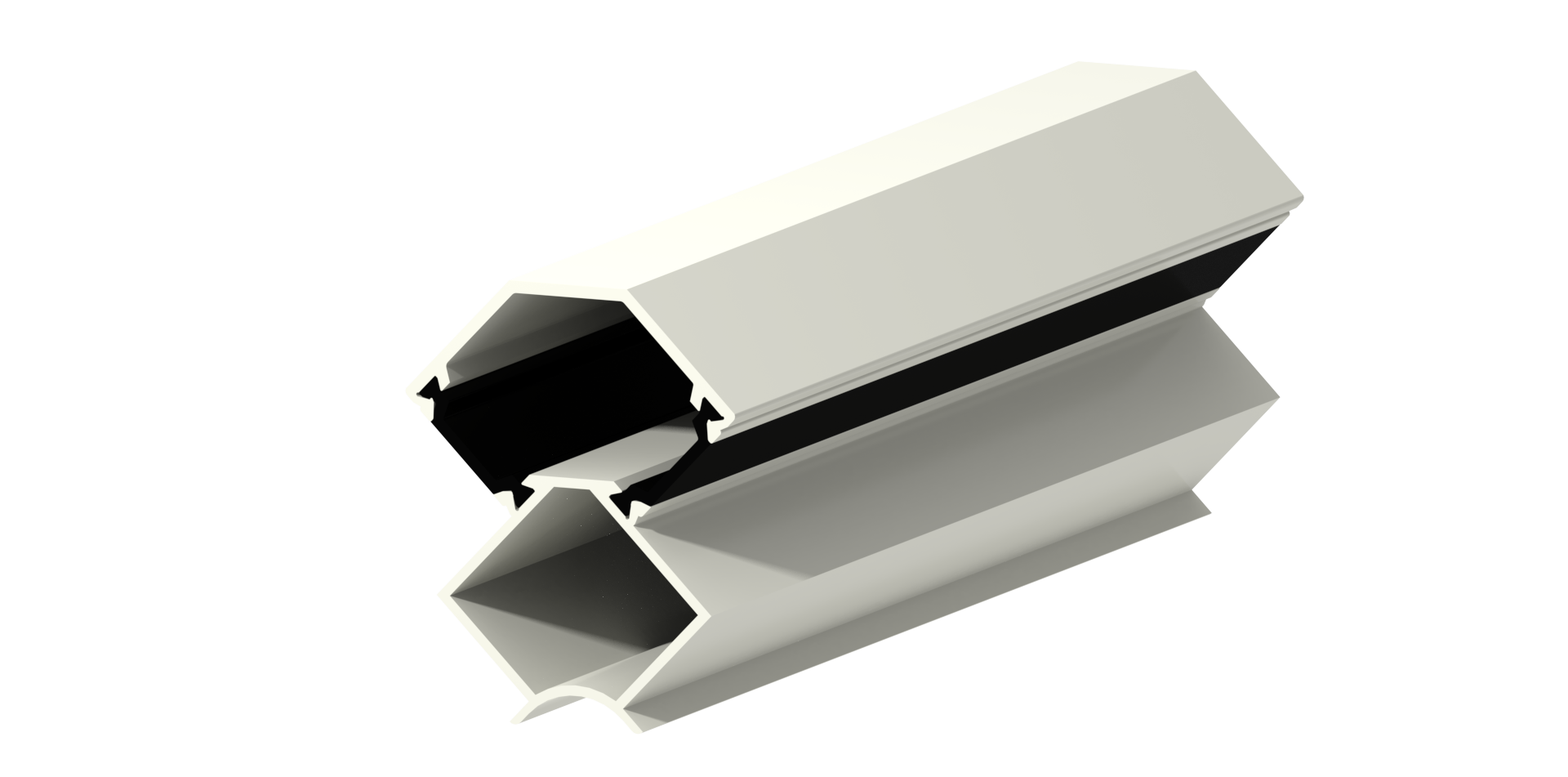

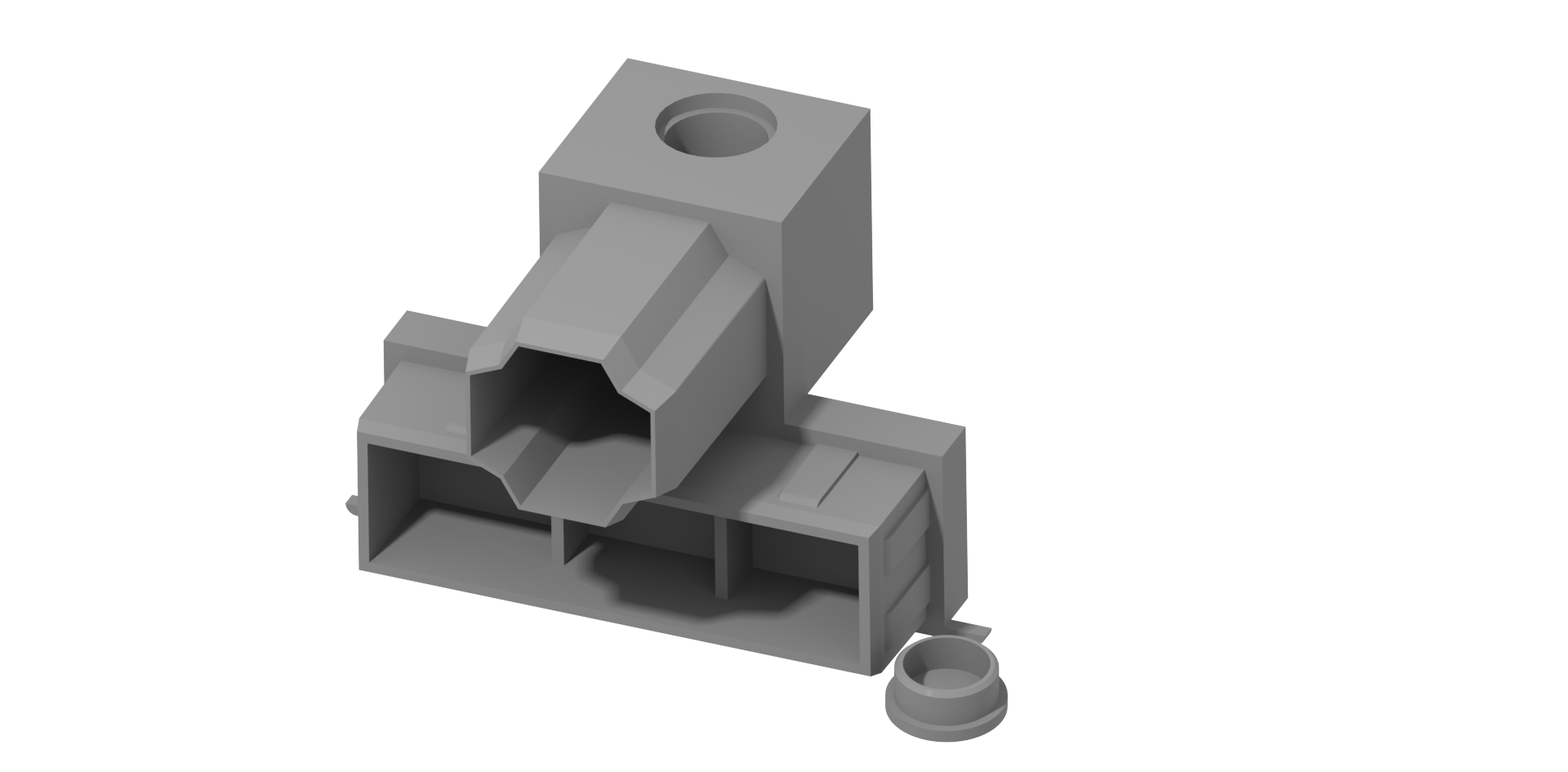

| 42-50 | 50 mm | TB ALC 4250 | TB NYC 4250 | TB ALO 4250 | TB NYO 4250 | + Section Joining |
| SR 42-50 | 50 mm | TB ALSRC 4250 | - | TB ALSRO 4250 | - | Serration Surface · + Section Joining |

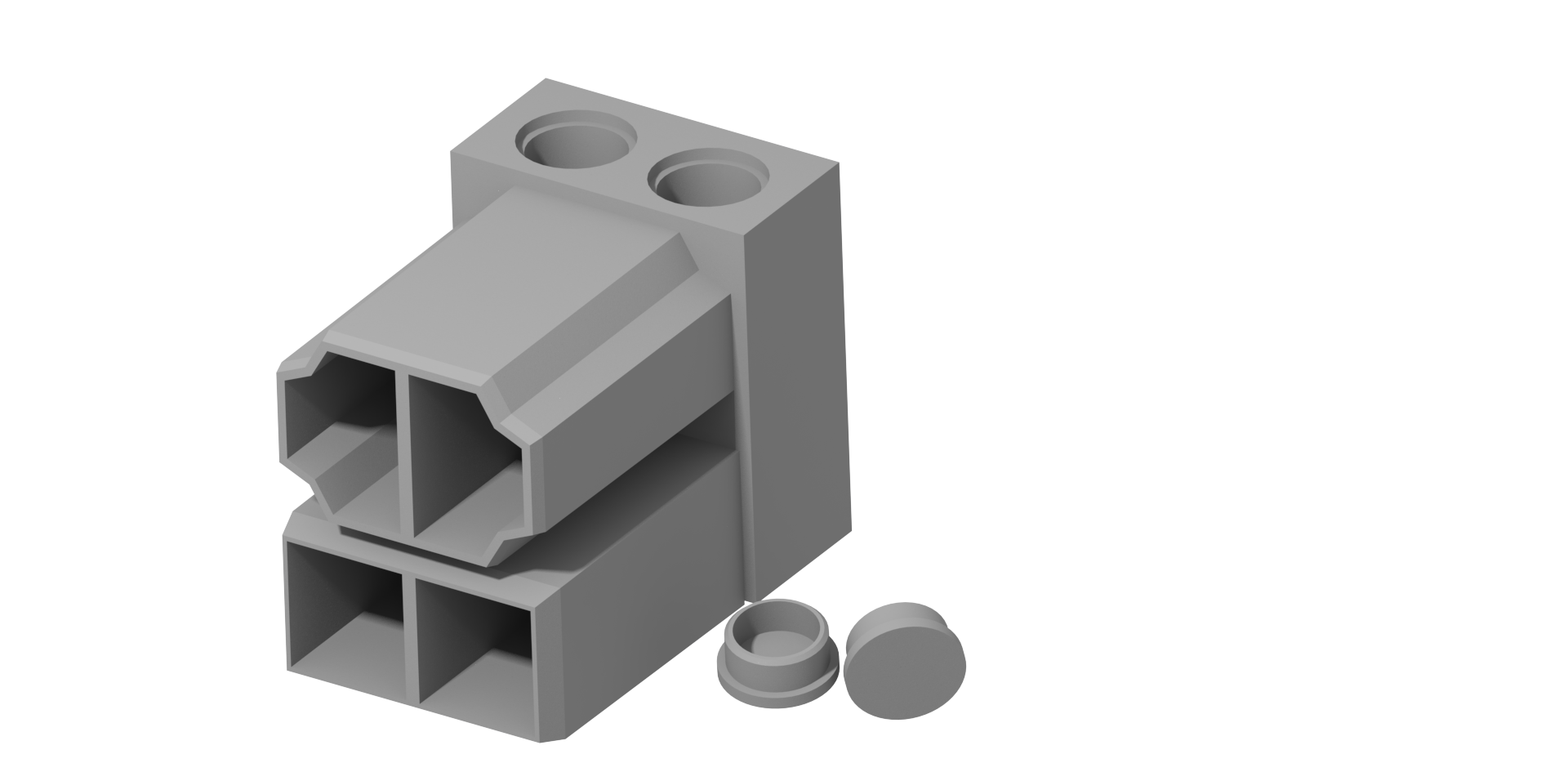

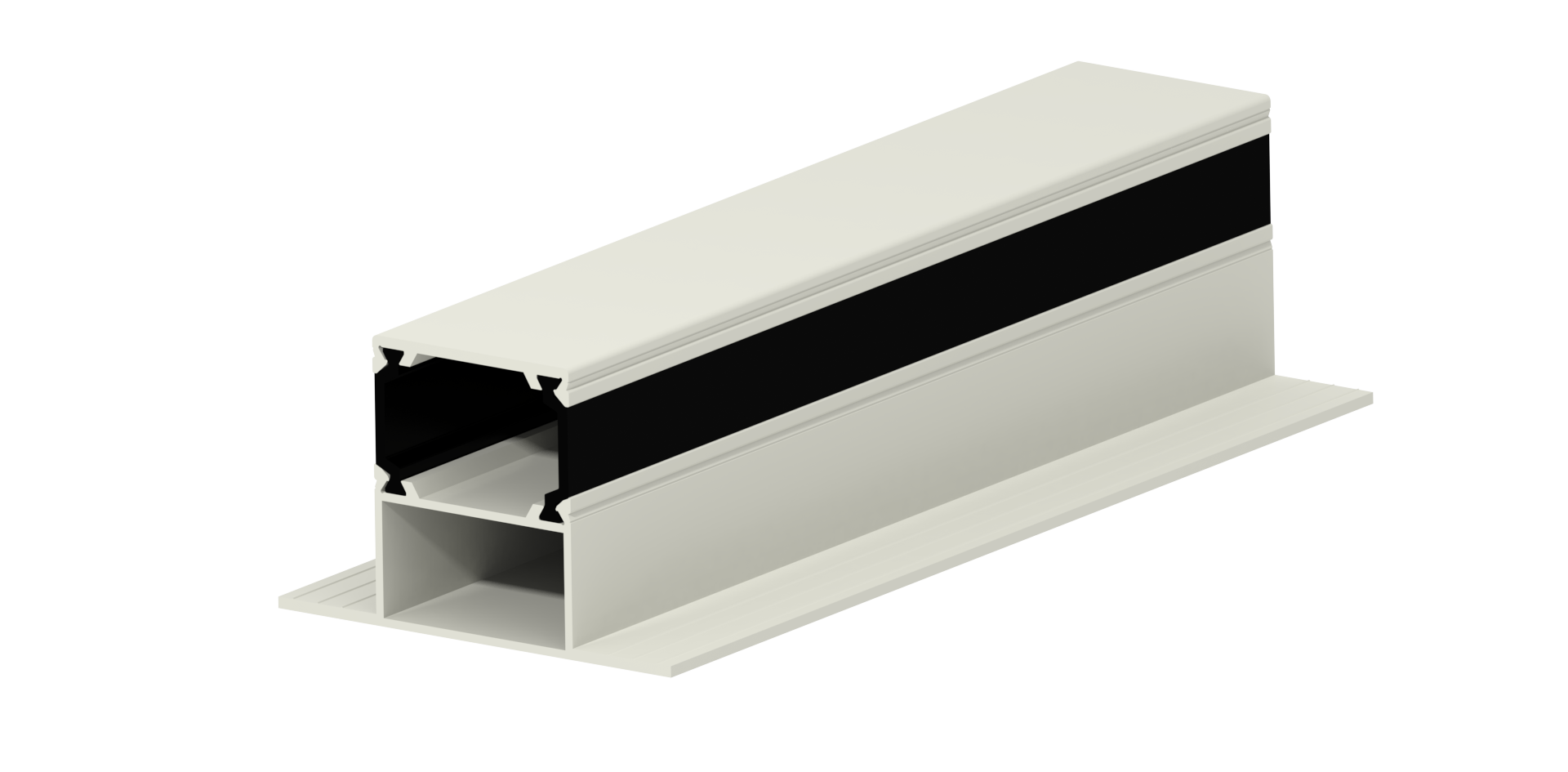

| 50-45 ★ | 45 mm | TB ALC 5045 | TB NYC 5045 | TB ALO 5045 | TB NYO 5045 | TÜV NORD Tested · EN 1886:2007 |

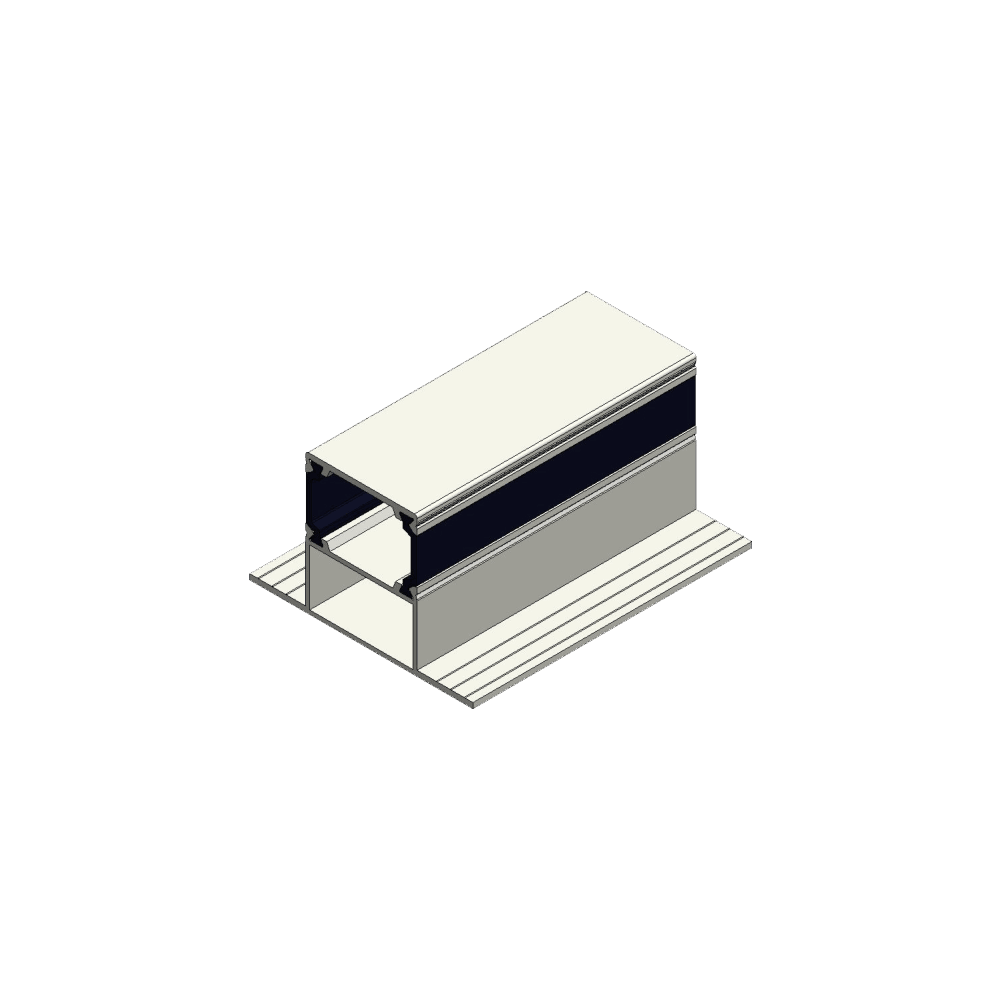

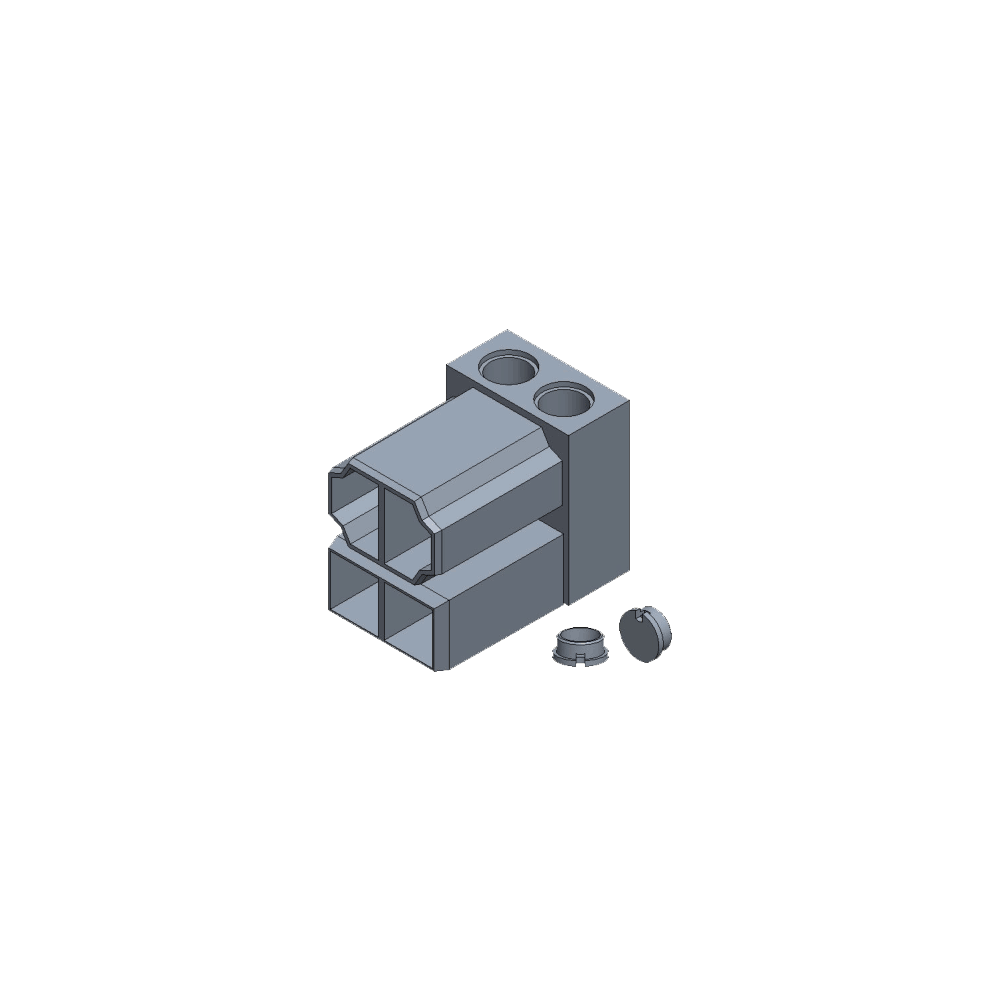

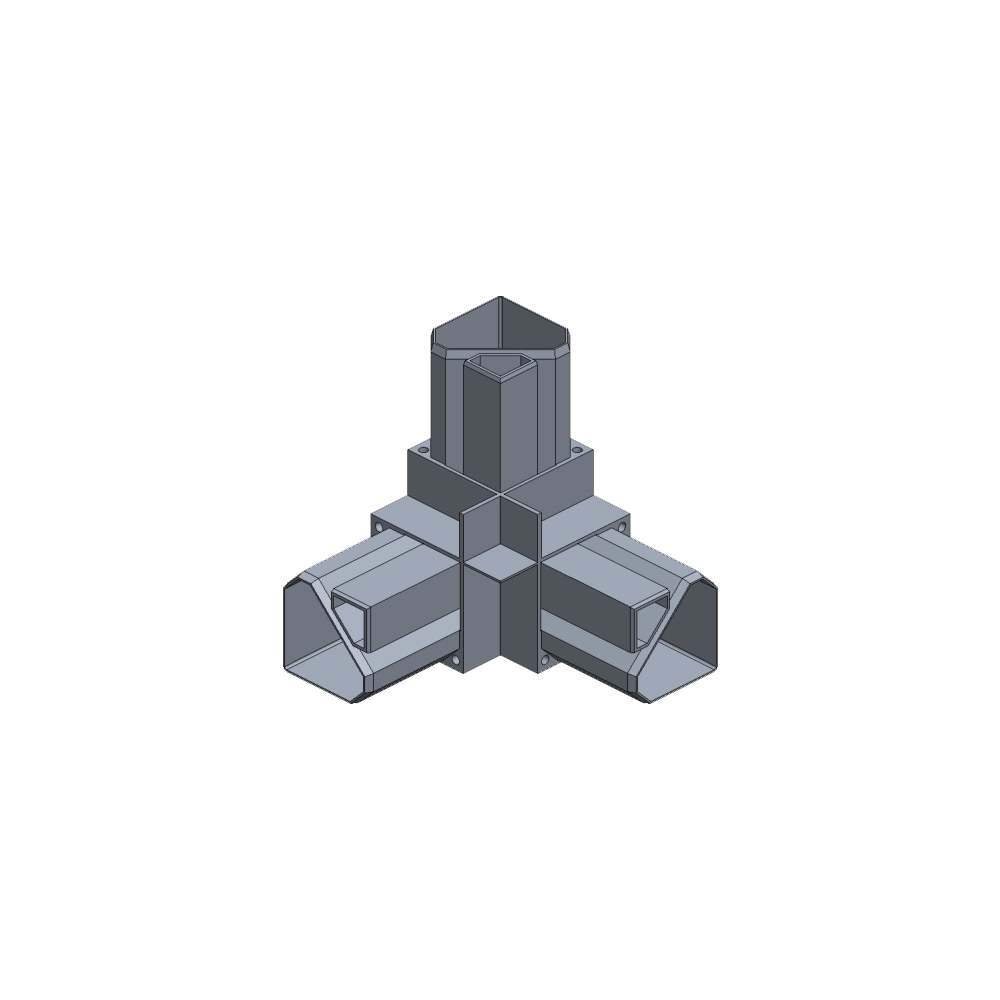

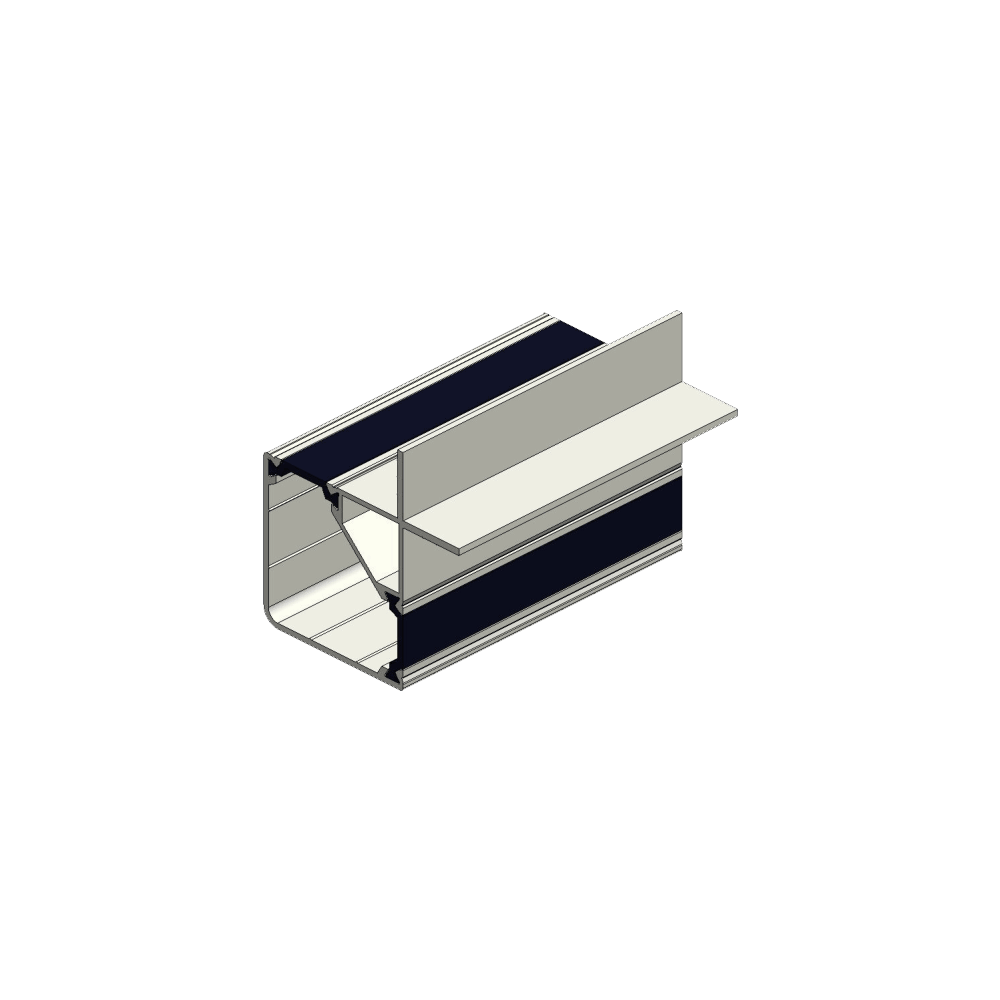

| 50-45-90DEG | 45 mm | TB ALC 5045 90DEG | TB NYC 5045 90DEG | TB ALO 5045 90DEG | TB NYO 5045 90DEG | 90 Degree variant |

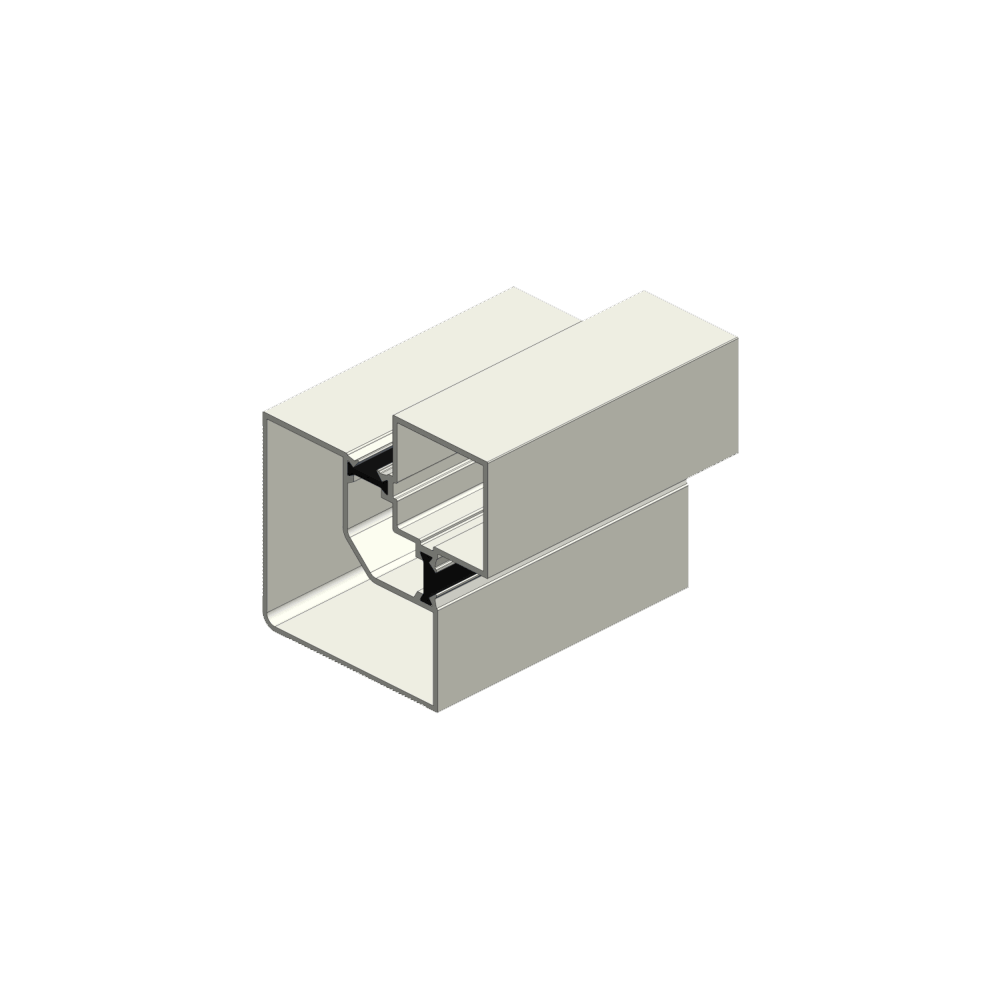

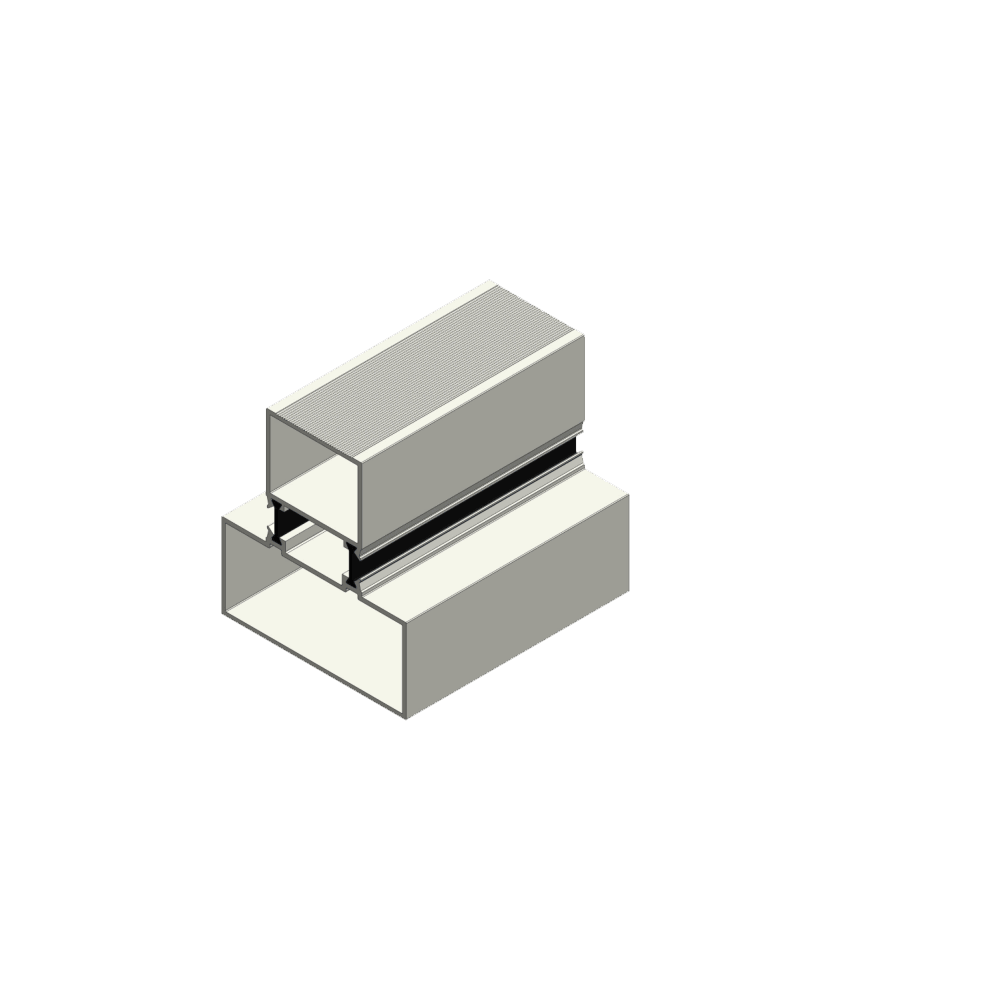

| 70-90-M2 | 90 mm | TB ALC 7090 M2 | TB NYC 7090 M2 | TB ALO 7090 M2 | TB NYO 7090 M2 | Heavy Duty · M2 variant |

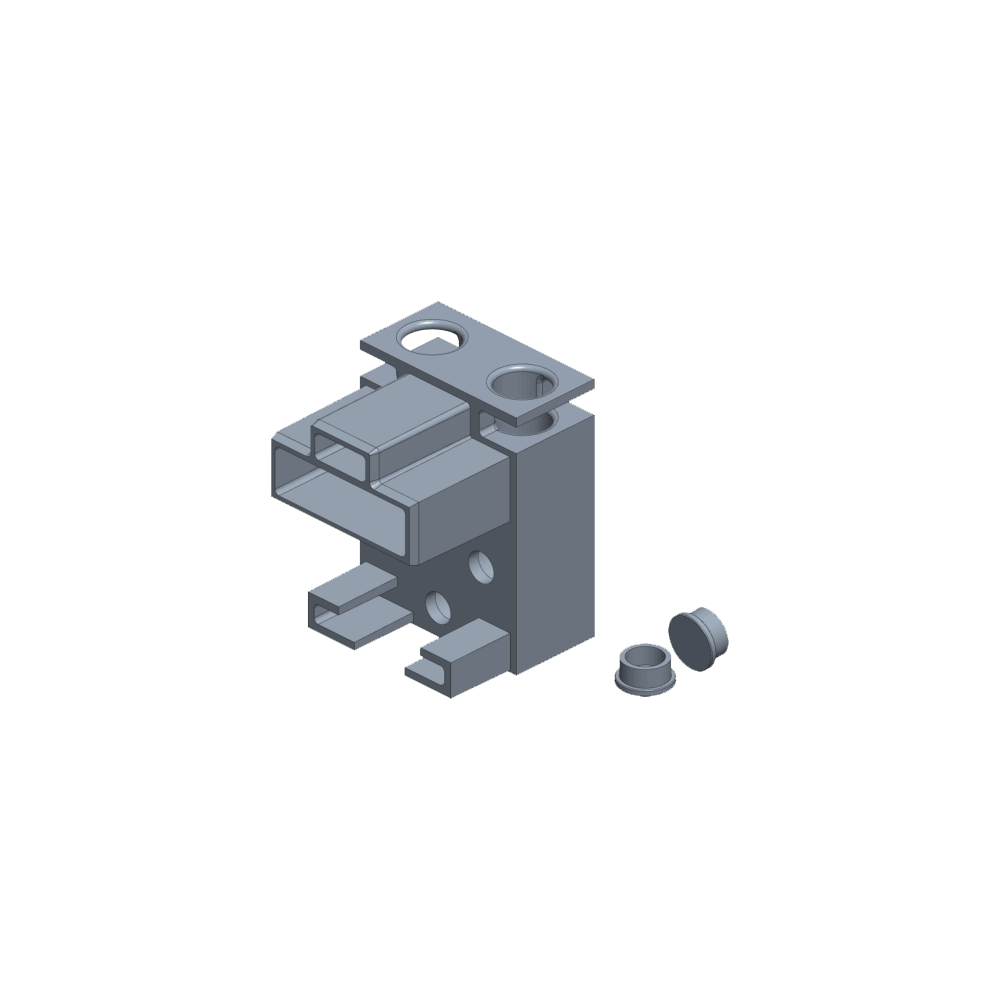

| 55-54-SF | 54 mm | TB ALC 5554 SF | TB NYC 5554 SF | TB ALO 5554 SF | TB NYO 5554 SF | Snap Fix |

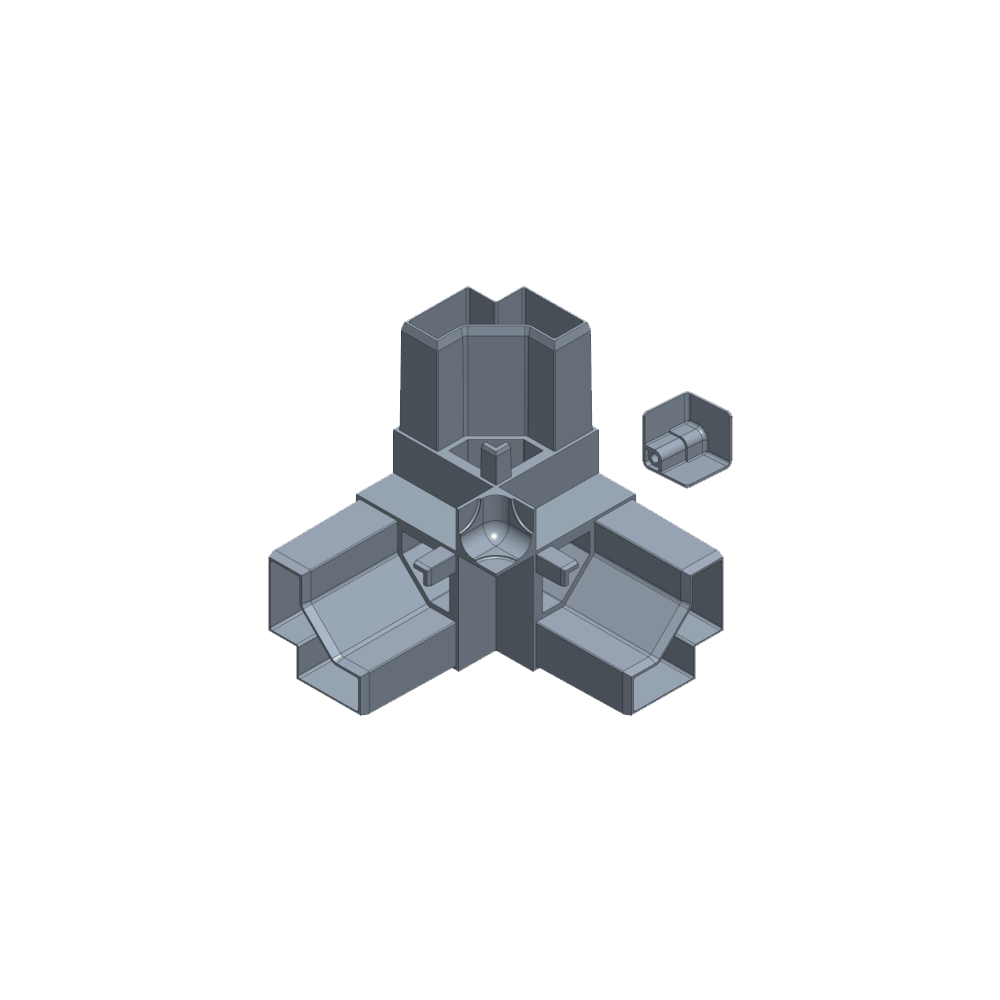

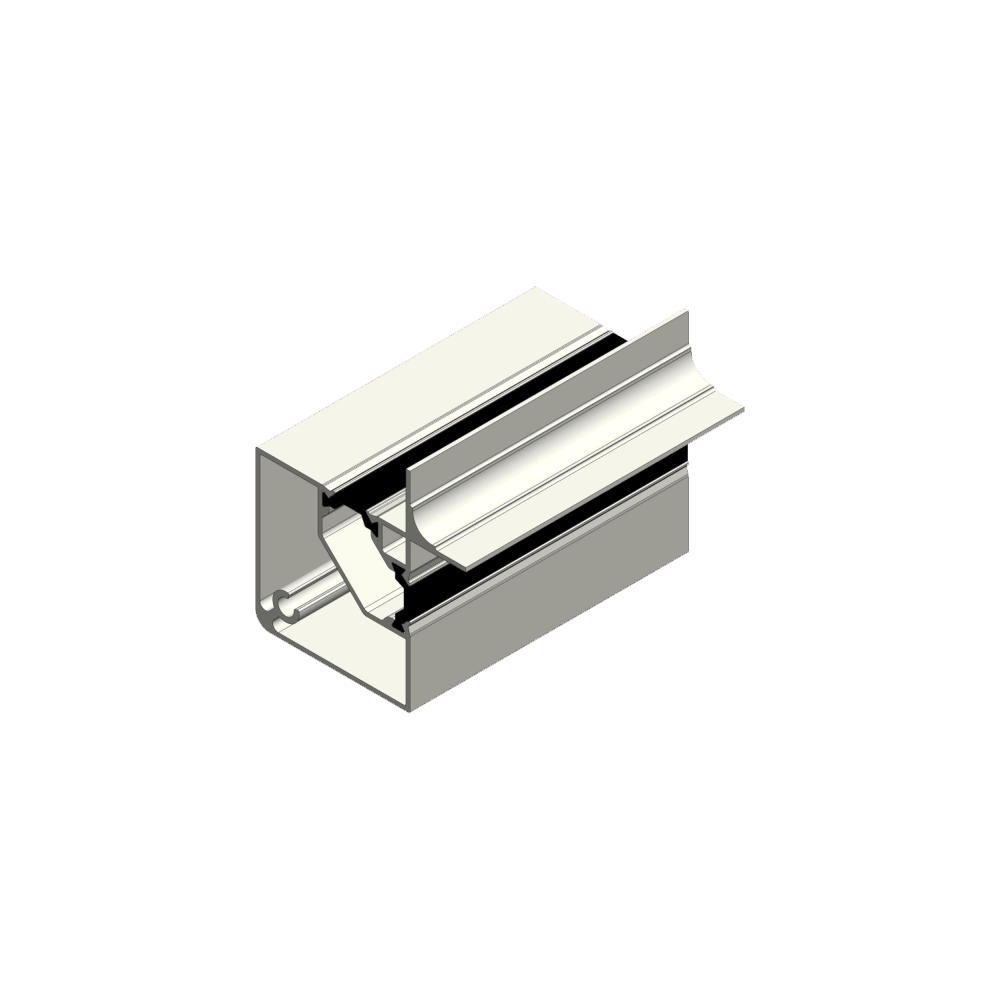

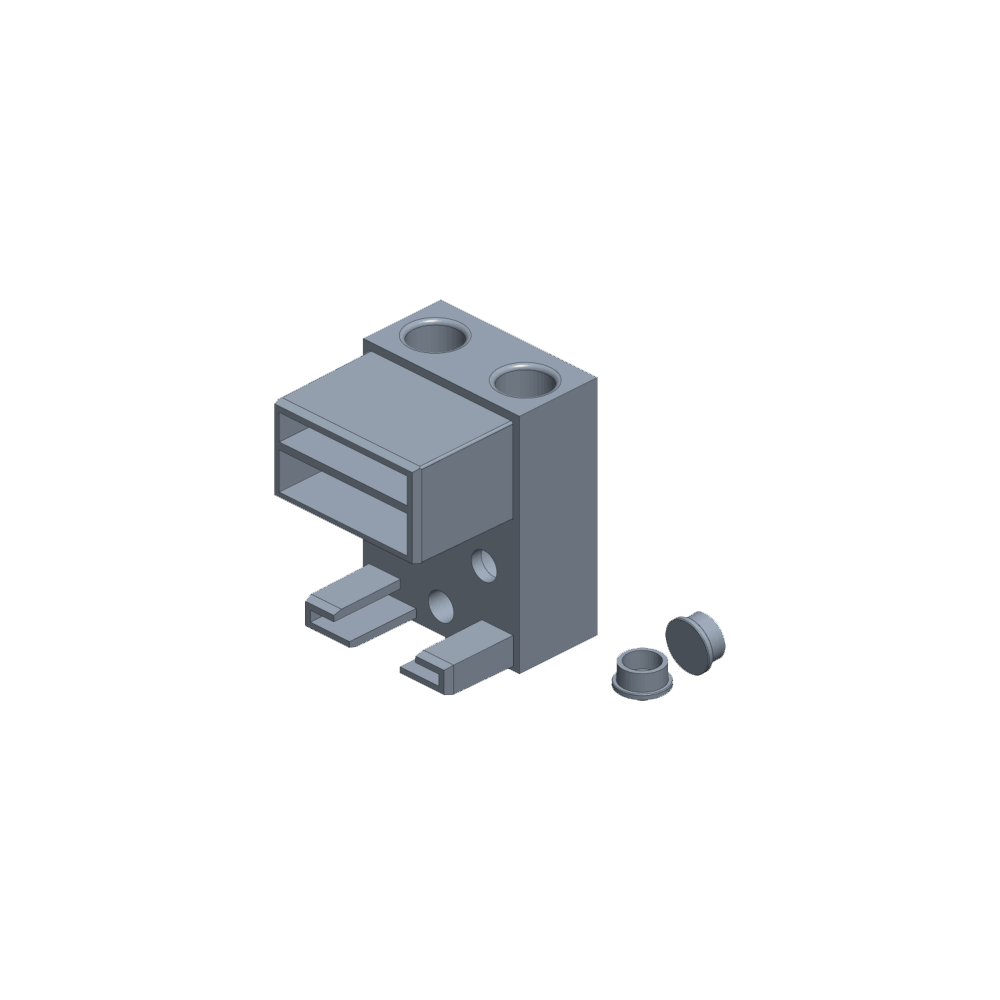

| 55-54-M2 | 54 mm | TB ALC 5554 SF M2 | TB NYC 5554 SF M2 | TB ALO 5554 SF M2 | TB NYO 5554 SF M2 | M2 variant |

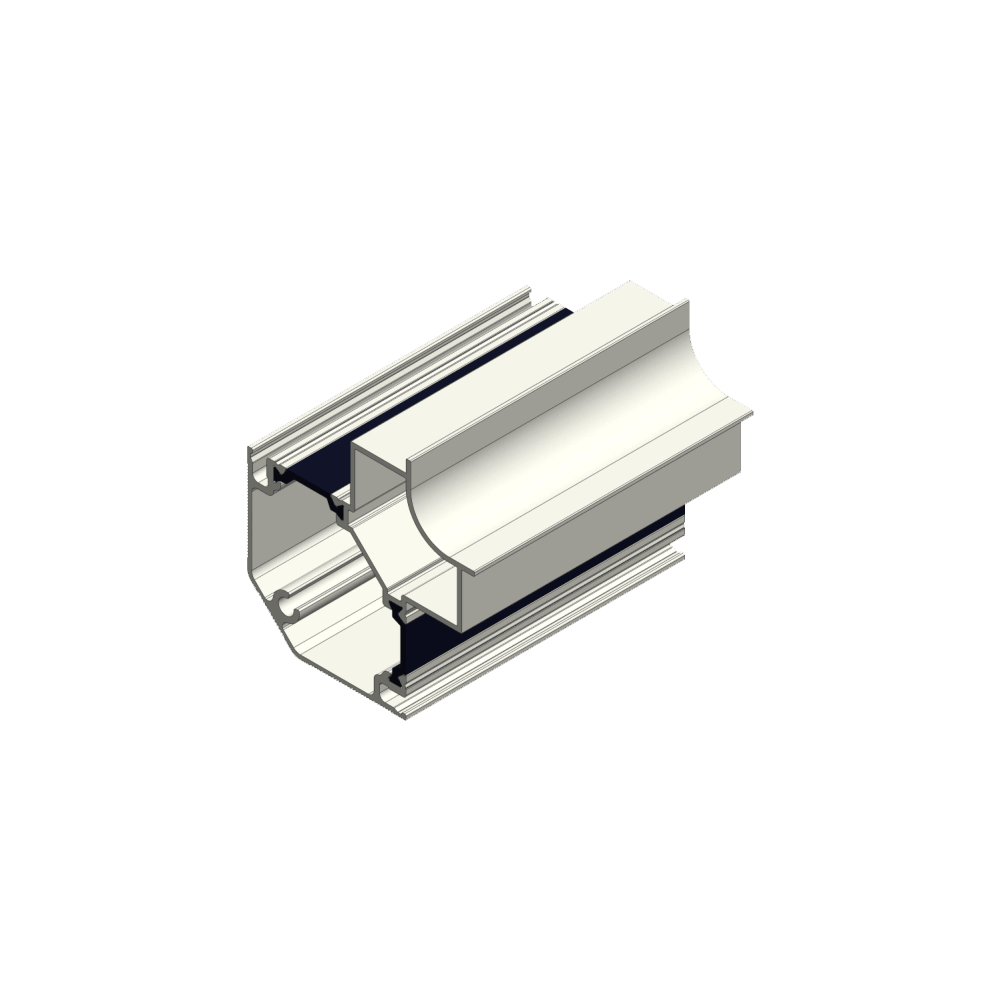

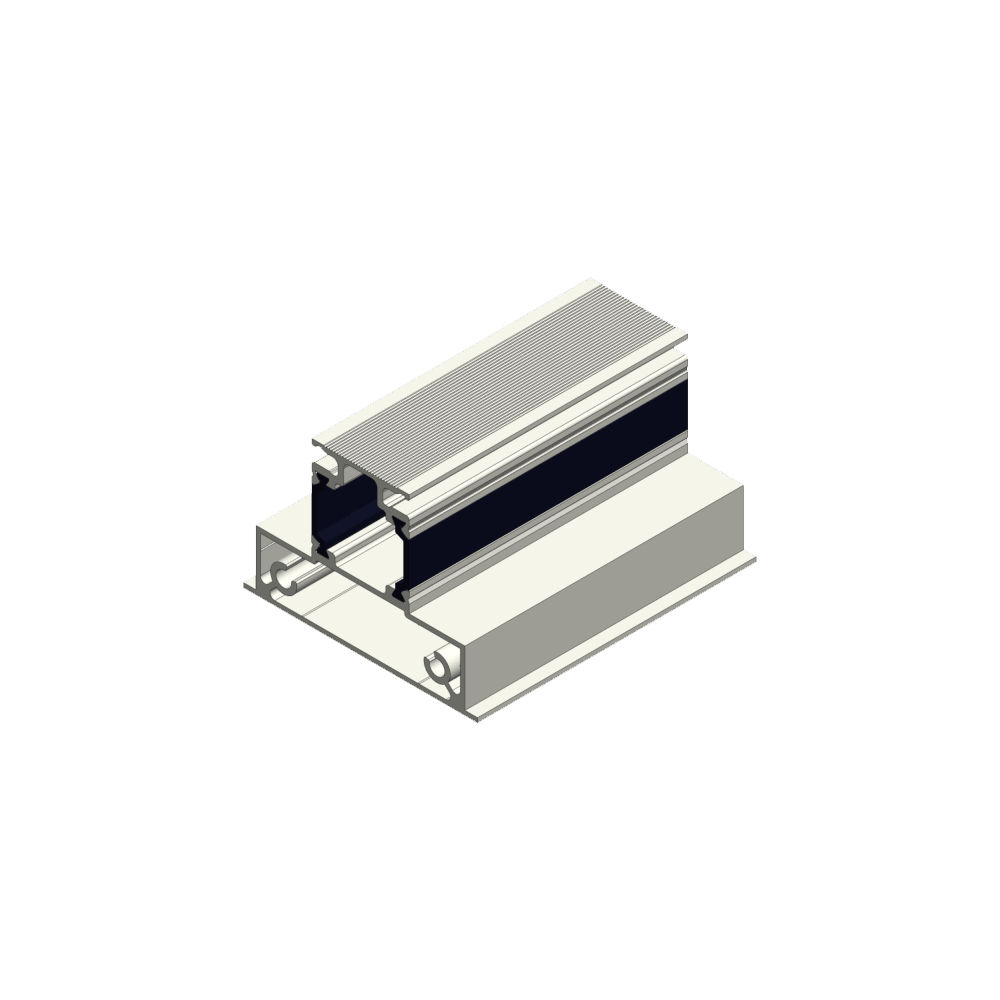

| 57-57-SF-SR | 50 mm | TB ALC 5757 SF SR | TB NYC 5757 SF SR | TB ALO 5757 SF SR | TB NYO 5757 SF SR | Snap Fix · Serration Surface · + Section Joining |

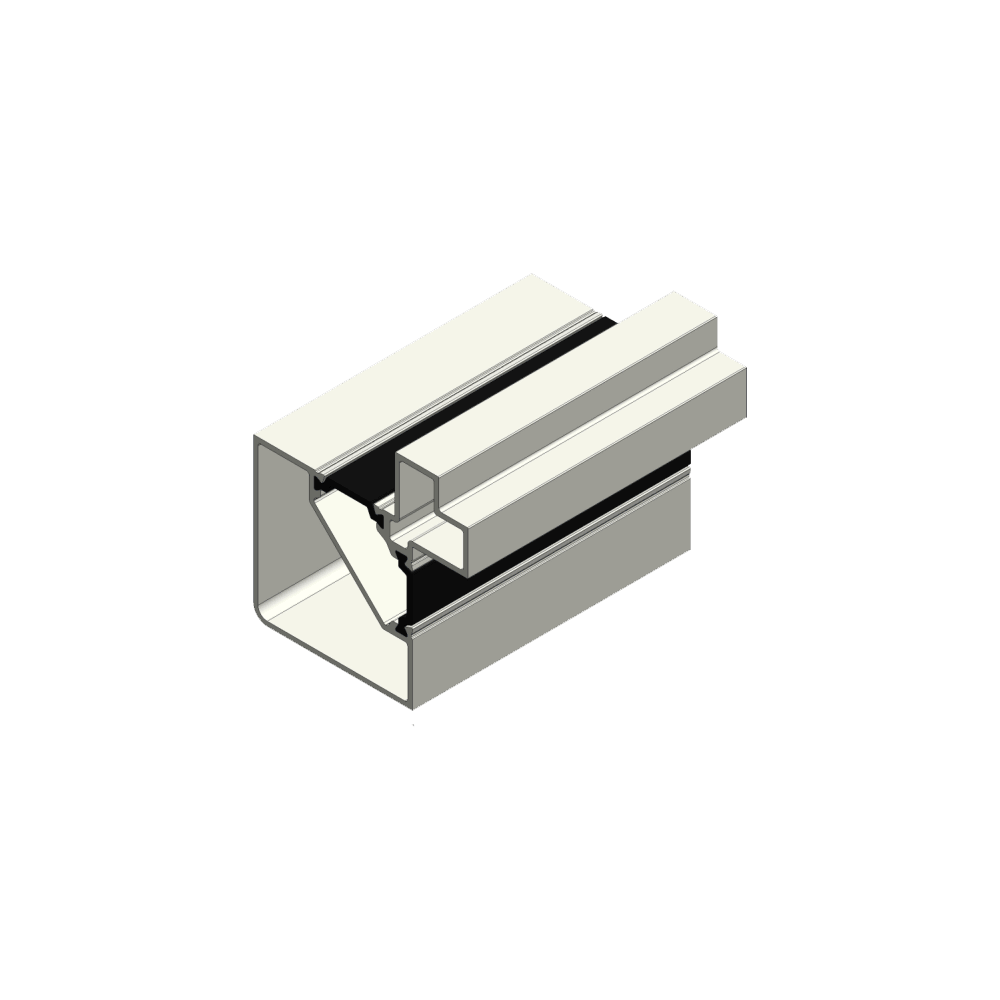

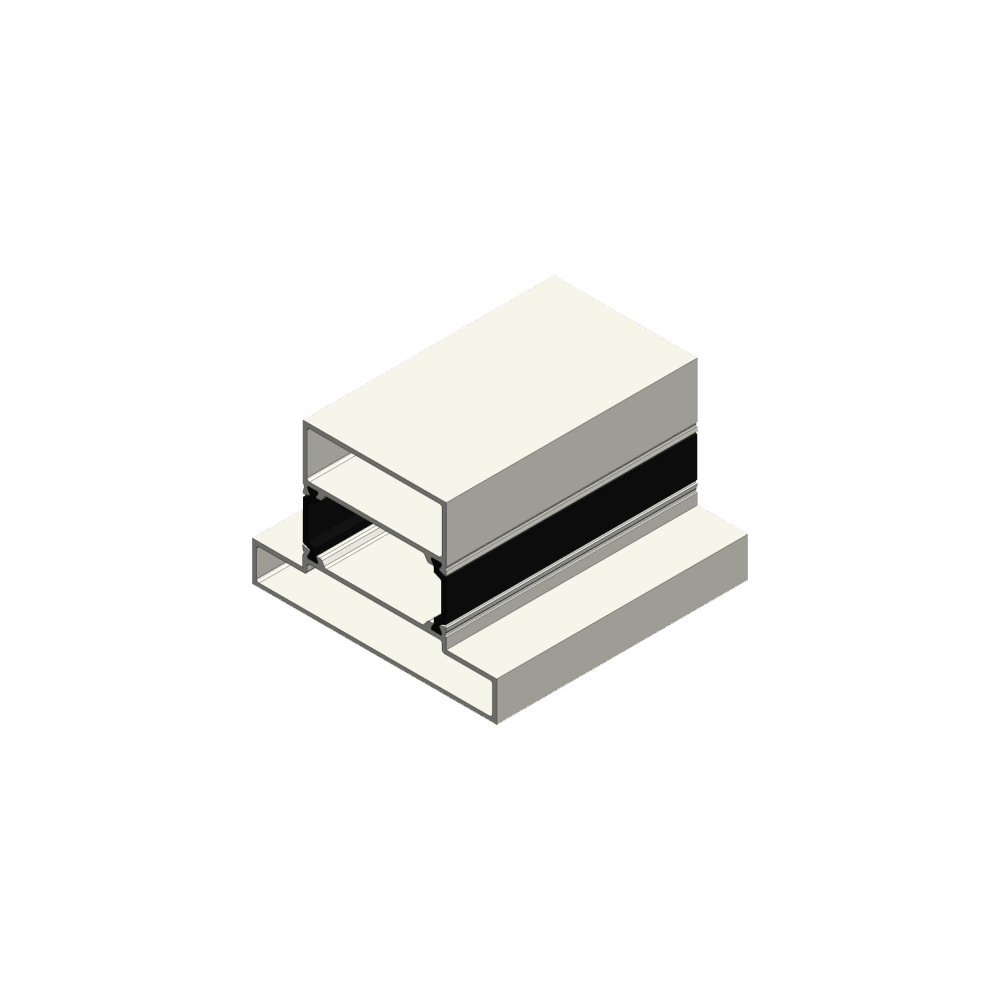

| 57-50 | 50 mm | TB ALC 5750 | TB NYC 5750 | TB ALO 5750 | TB NYO 5750 | Includes Door Panel profile (DP) |

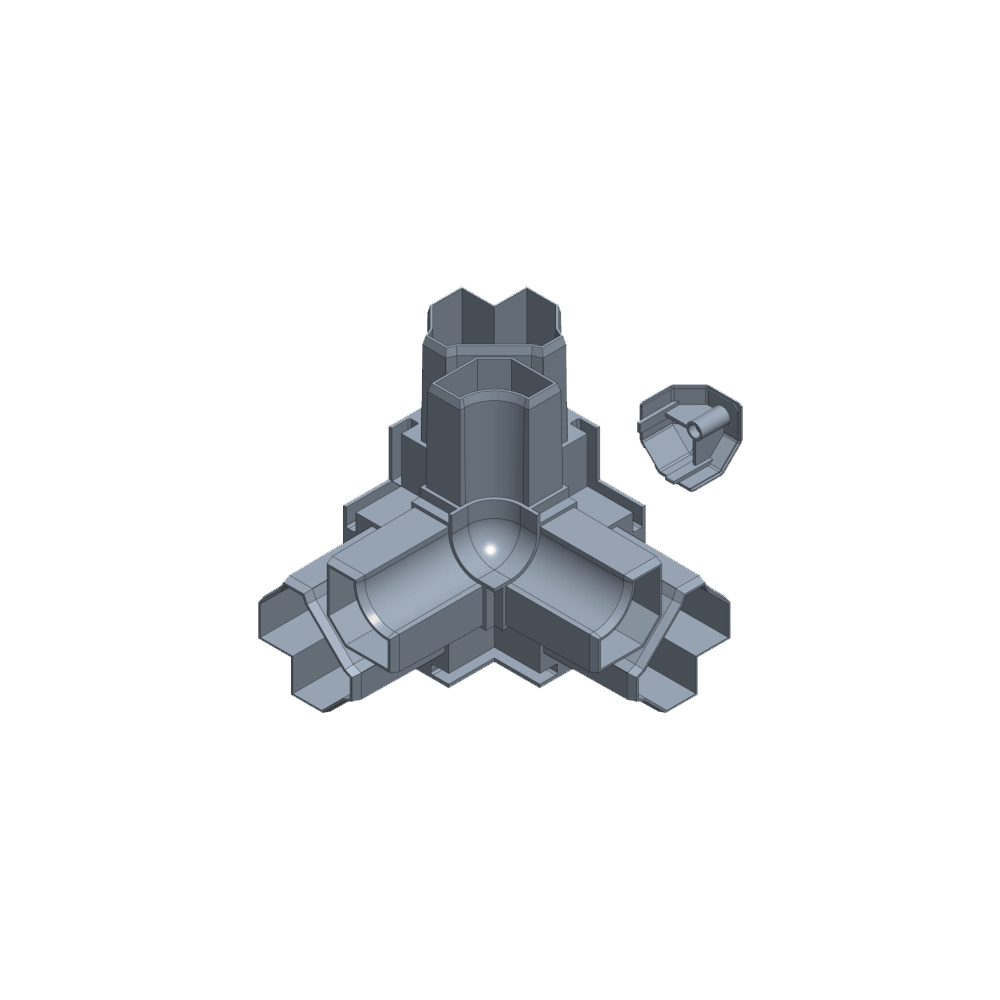

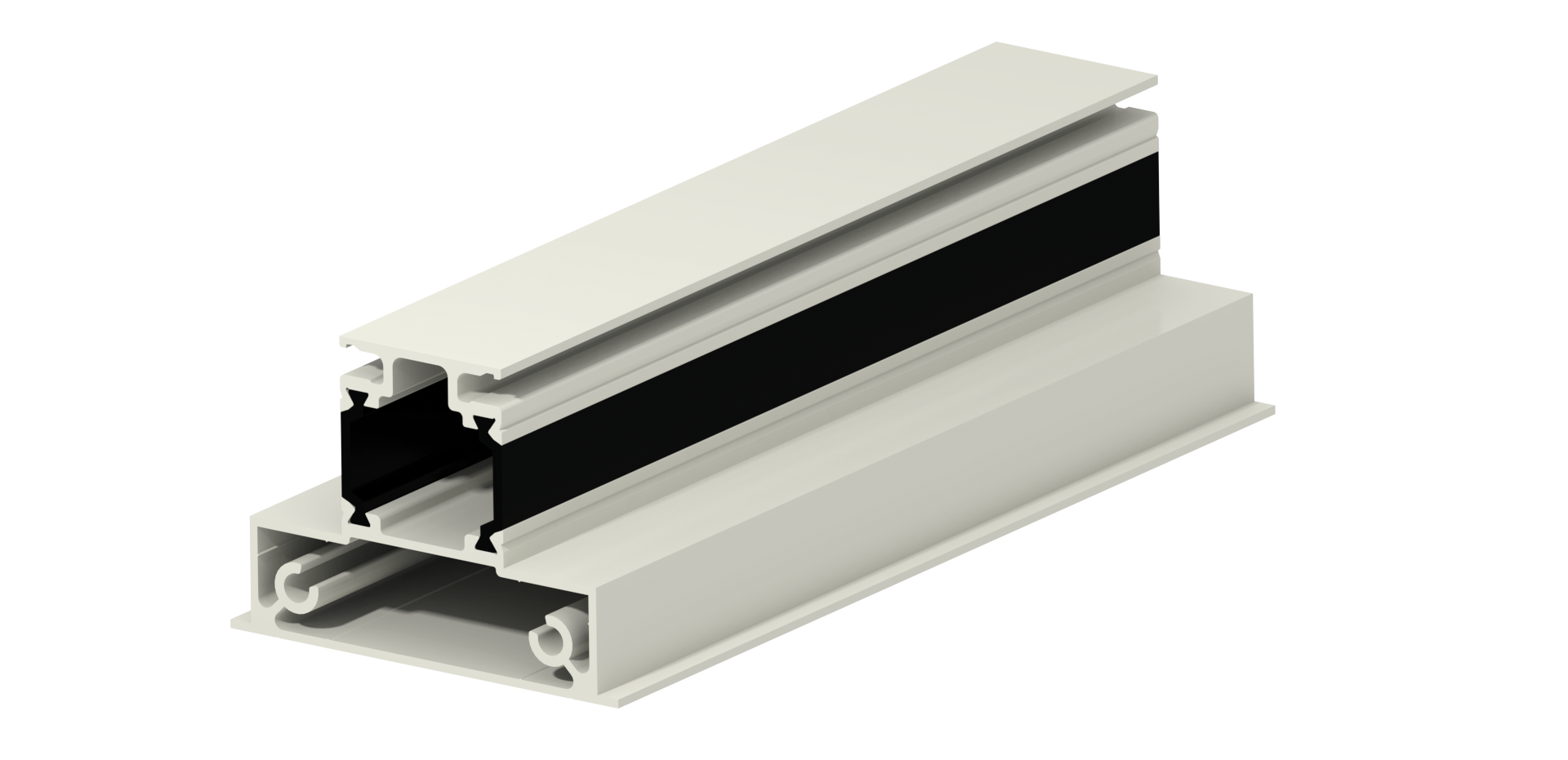

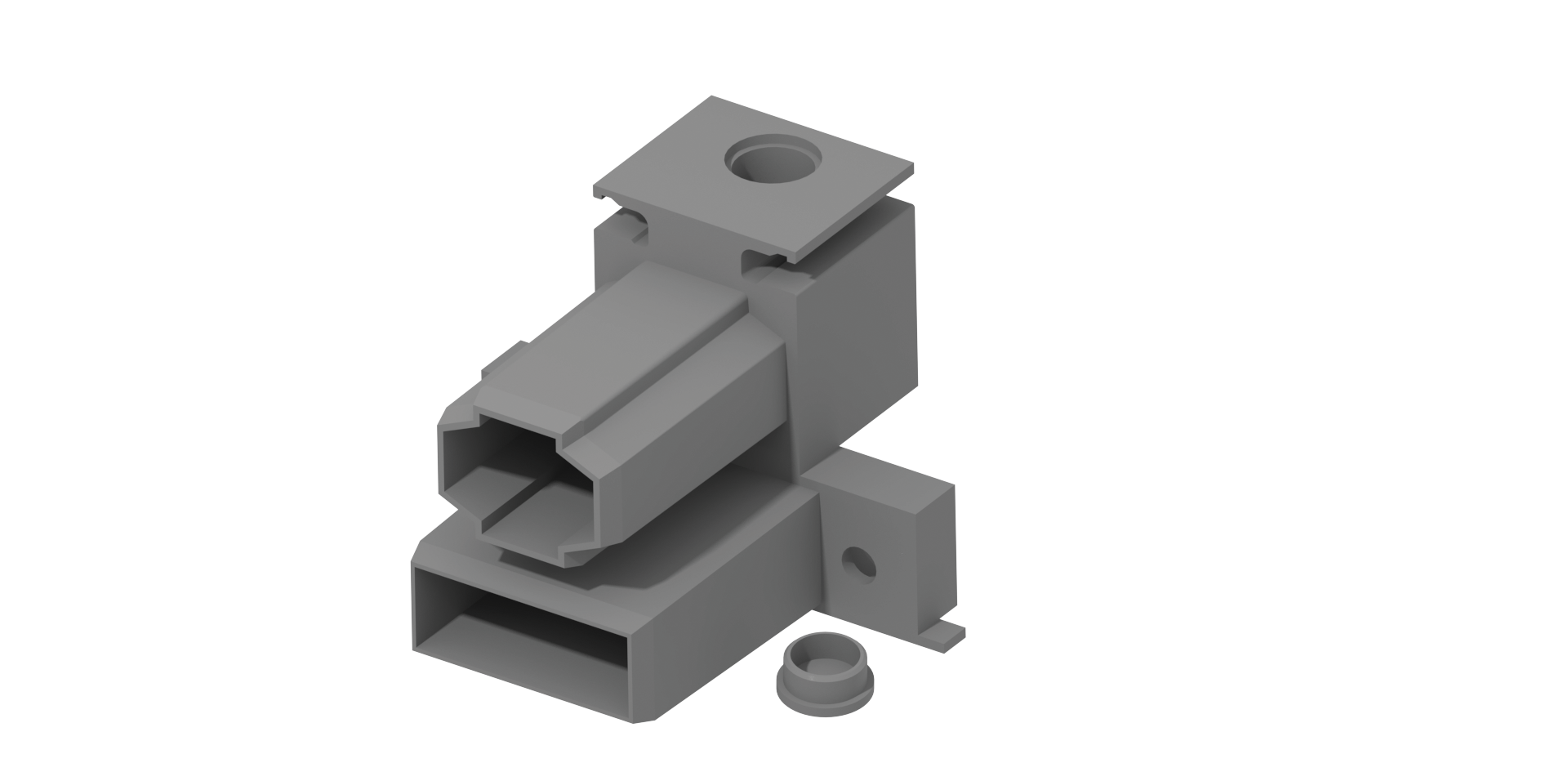

| 57-57-SF | 50 mm | TB ALSFC 5750 | TB NYSFC 5750 | TB ALSFO 5750 | TB NYSFO 5750 | Snap Fix · + Section Joining |
| 52-50 | 50 mm | TB ALC 5250 | TB NYC 5250 | TB ALO 5250 | TB NYO 5250 | |

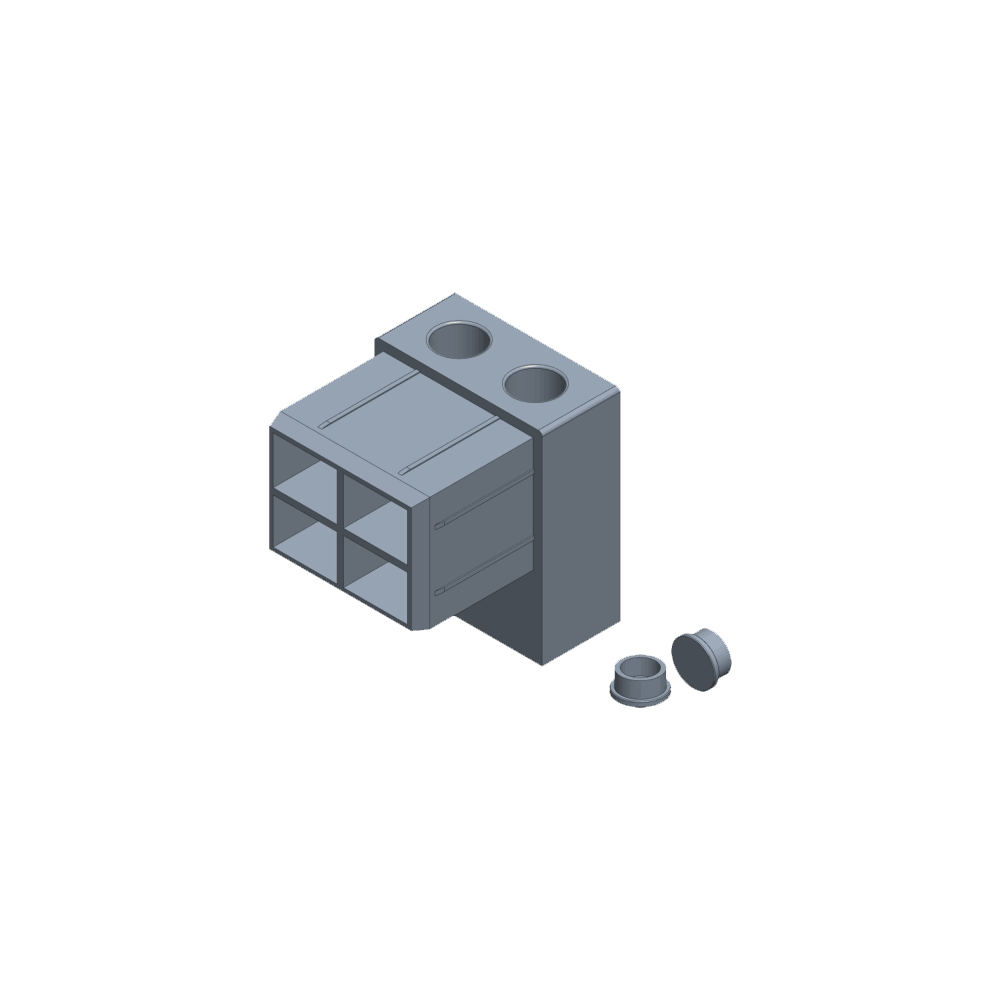

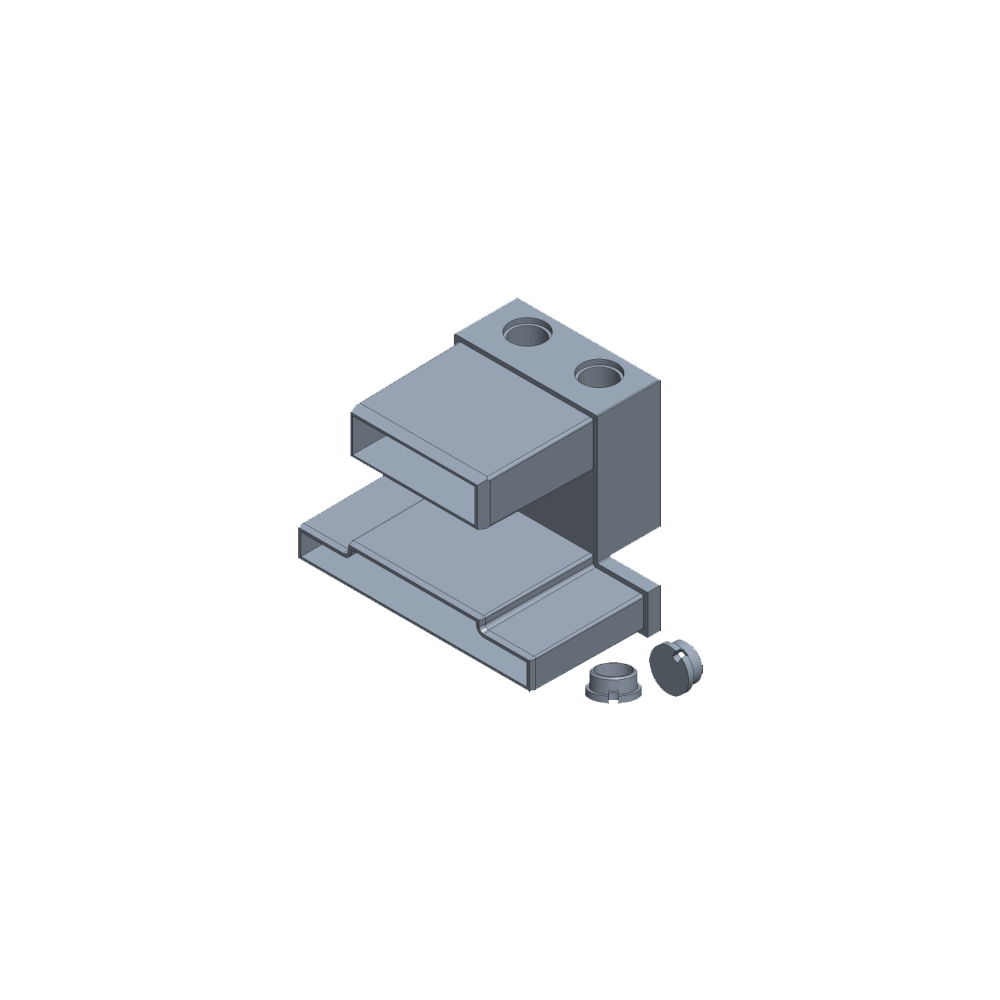

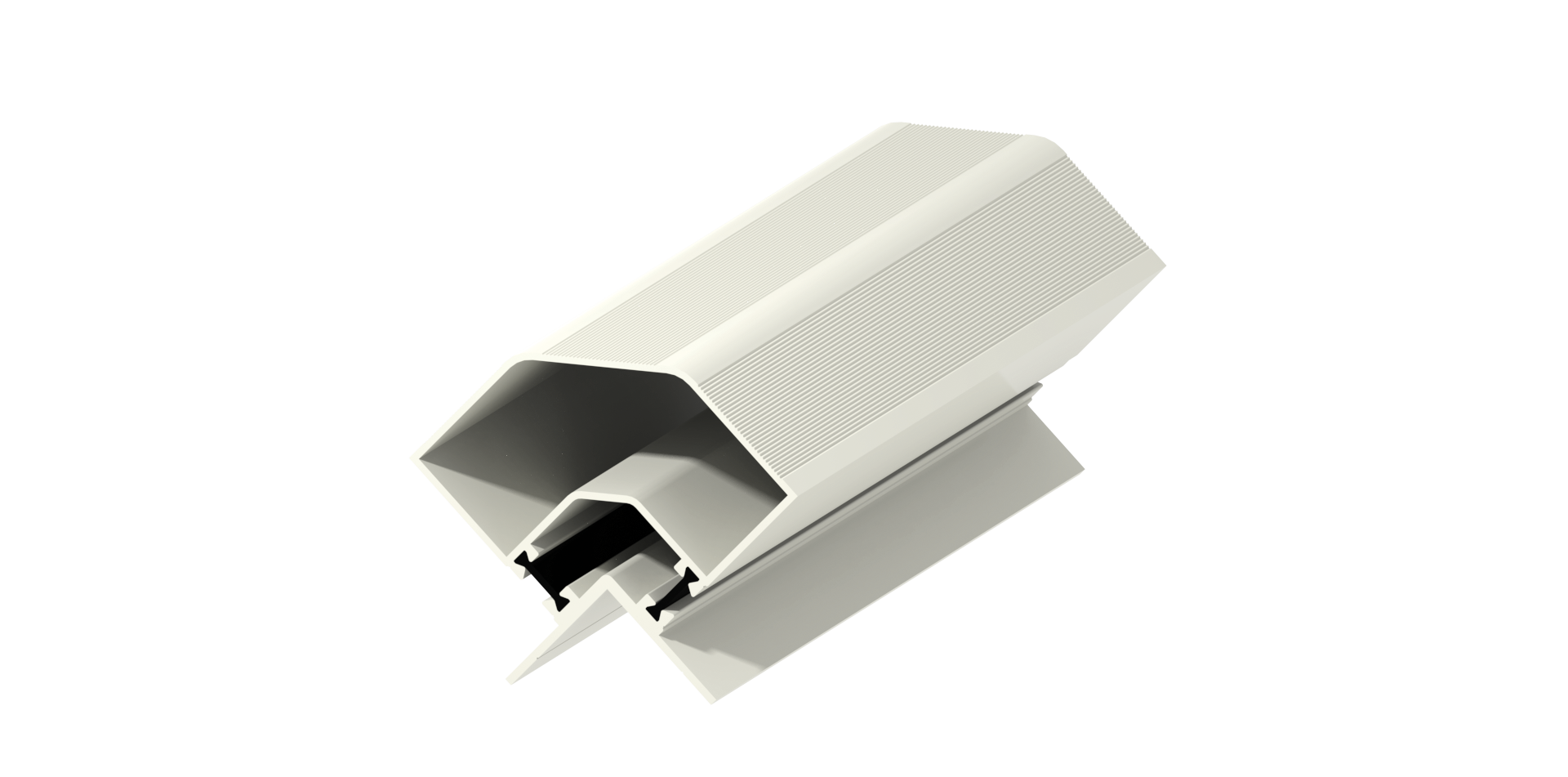

| 70-50 | 50 mm | TB ALC 7050 | TB NYC 7050 | TB ALO 7050 | TB NYO 7050 | Heavy Duty |
What is Serration Surface?
Serration surface profiles (SR 42-45 and SR 42-50 series) have a textured outer face on the aluminium extrusion - providing a mechanical key for panel adhesive or gasket materials, improving the bond between panel and frame in high-performance AHU builds.
What is the Clean Room profile?
The Clean Room profile system is designed for pharmaceutical-grade AHU construction where all internal surfaces must be smooth, sealed, and free of joints that could harbour contamination. Compatible with the 42-45 thermal break series.
What is Snap Fix?
The SF 57-50 snap-fix series allows panels to clip into the frame without exposed fasteners. The panel strip locks panels from the outer channel - leaving a smooth, unbroken internal surface.
MATERIAL REFERENCE
| Code | Meaning |
|---|---|
| NTB | Non-Thermal Break |
| TB | Thermal Break |
| AL | Aluminium - EN AW6063 |
| NY | Nylon - VDI 6022 Standard |
| SR | Serration Surface |
| SF | Snap Fix |
At a Glance
How The System Works
A - Corner Joiner
B - Corner Profile
C - Omega Joiner
D - Omega Profile
Series Overview
Non-Thermal Break
20-15
15 mm

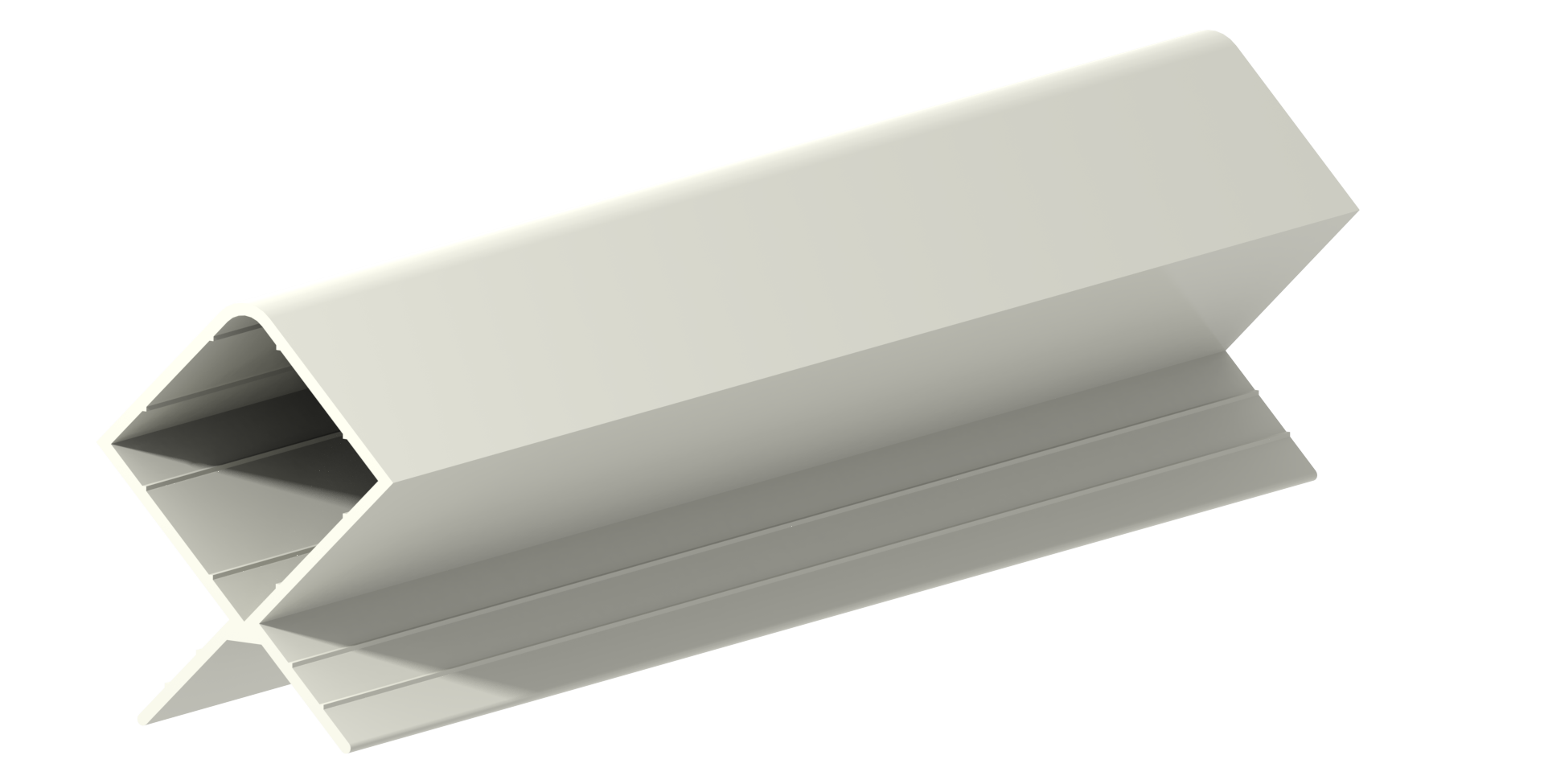

NTB ALC 2015 · NTB NYC 2015
- -
30-25
25 mm

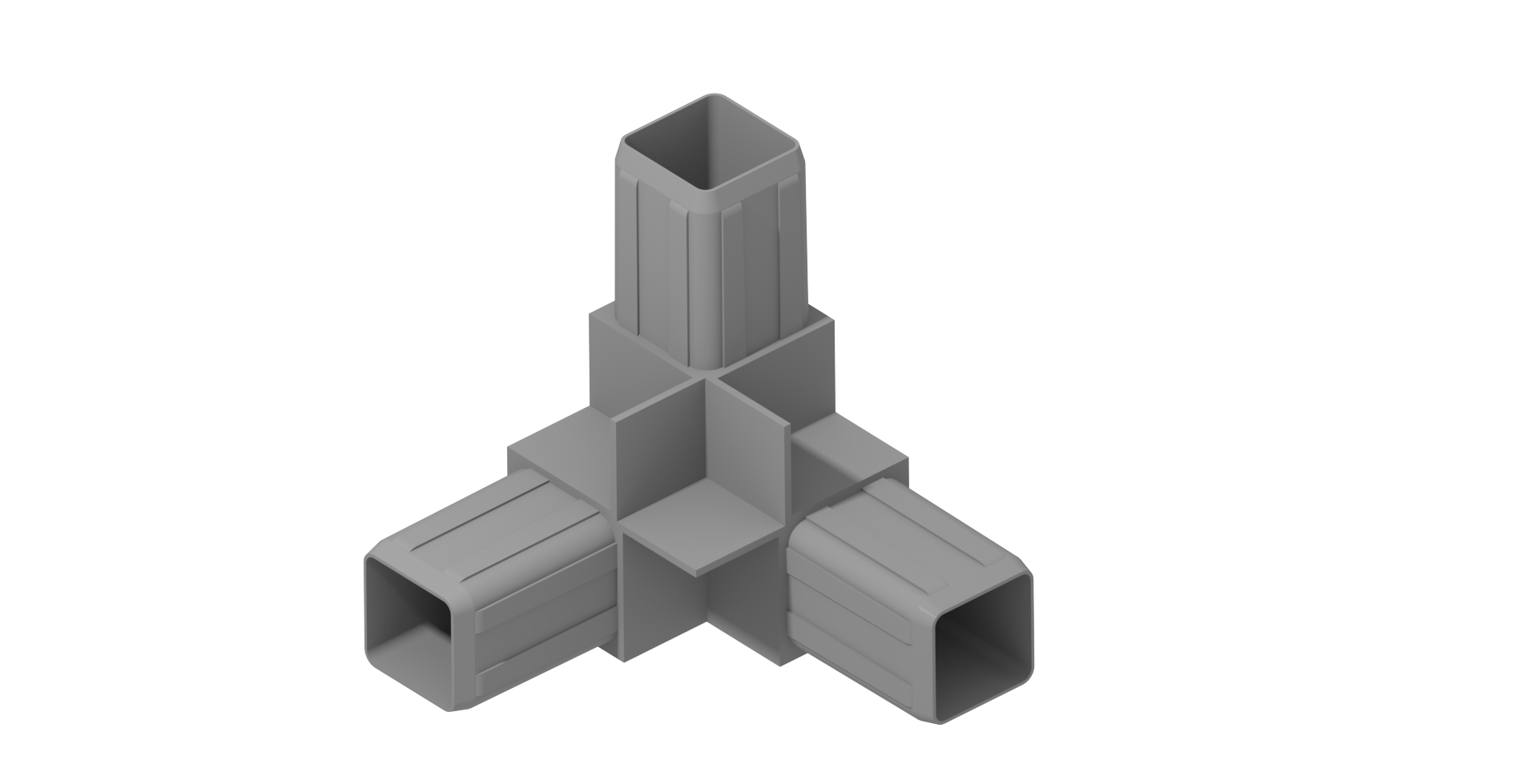

NTB ALC 3025 · NTB NYC 3025 · NTB ALO 3025 · NTB NYO 3025
- -
30-25-R
25 mm
NTB ALRC 3025 · NTB NYRC 3025
- R-type corner · uses 30-25 omega components

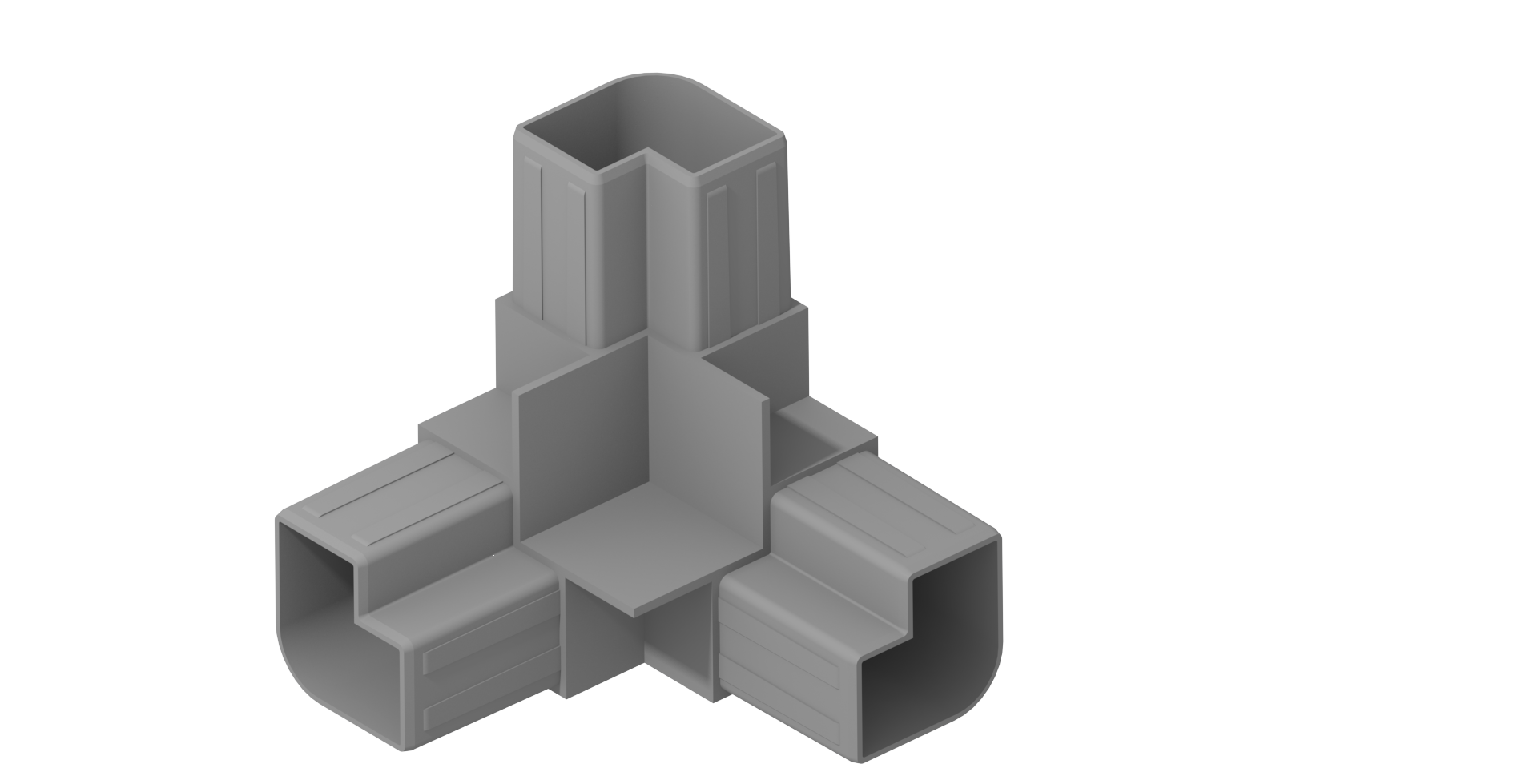

40-23
23 mm
NTB ALC 4023 · NTB NYC 4023 · NTB ALO 4023 · NTB NYO 4023
- -
40-25 NTB
25 mm

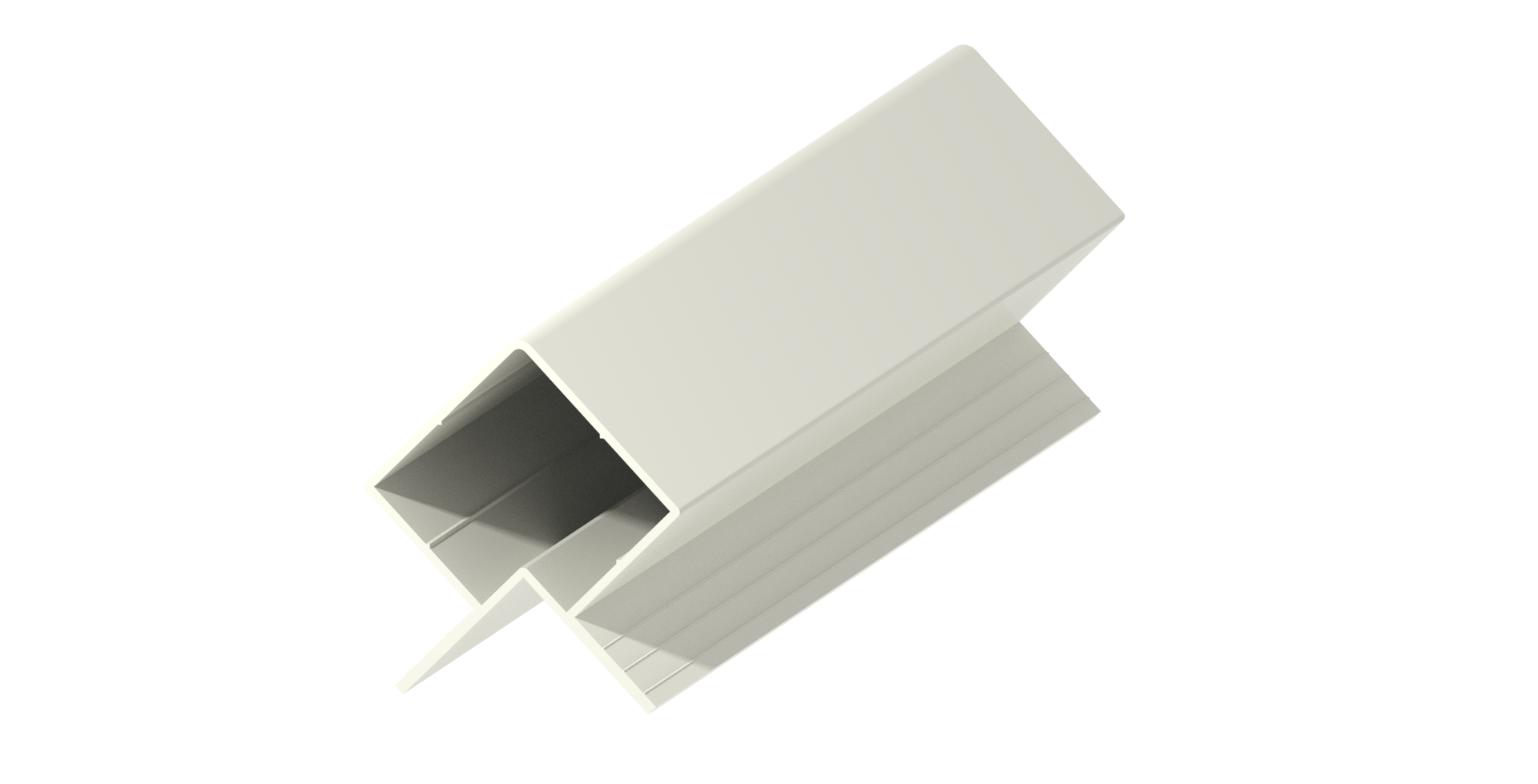

NTB ALC 4025 · NTB NYC 4025 · NTB ALO 4025 · TB NYO 4025
- -

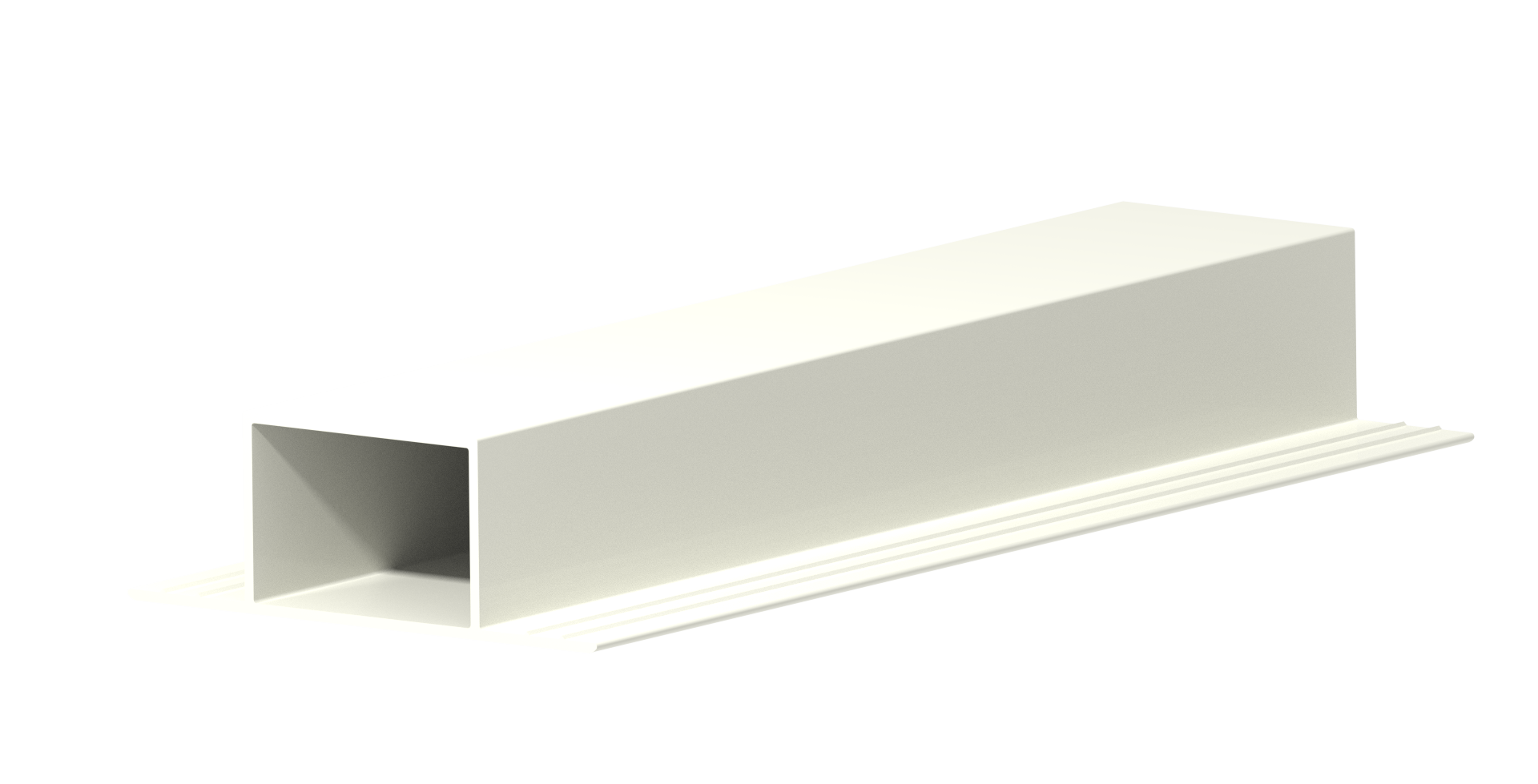

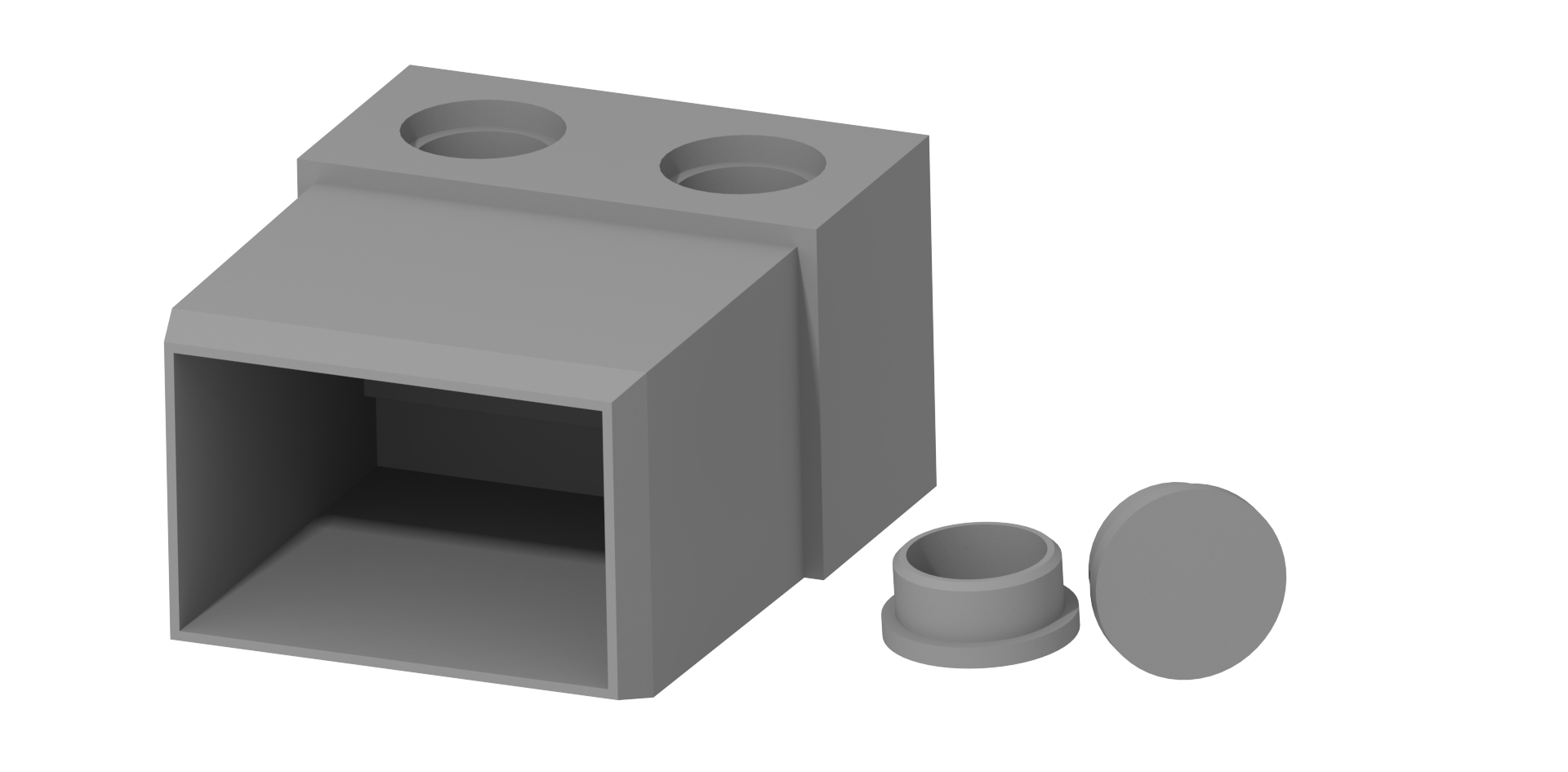

42-25
25 mm

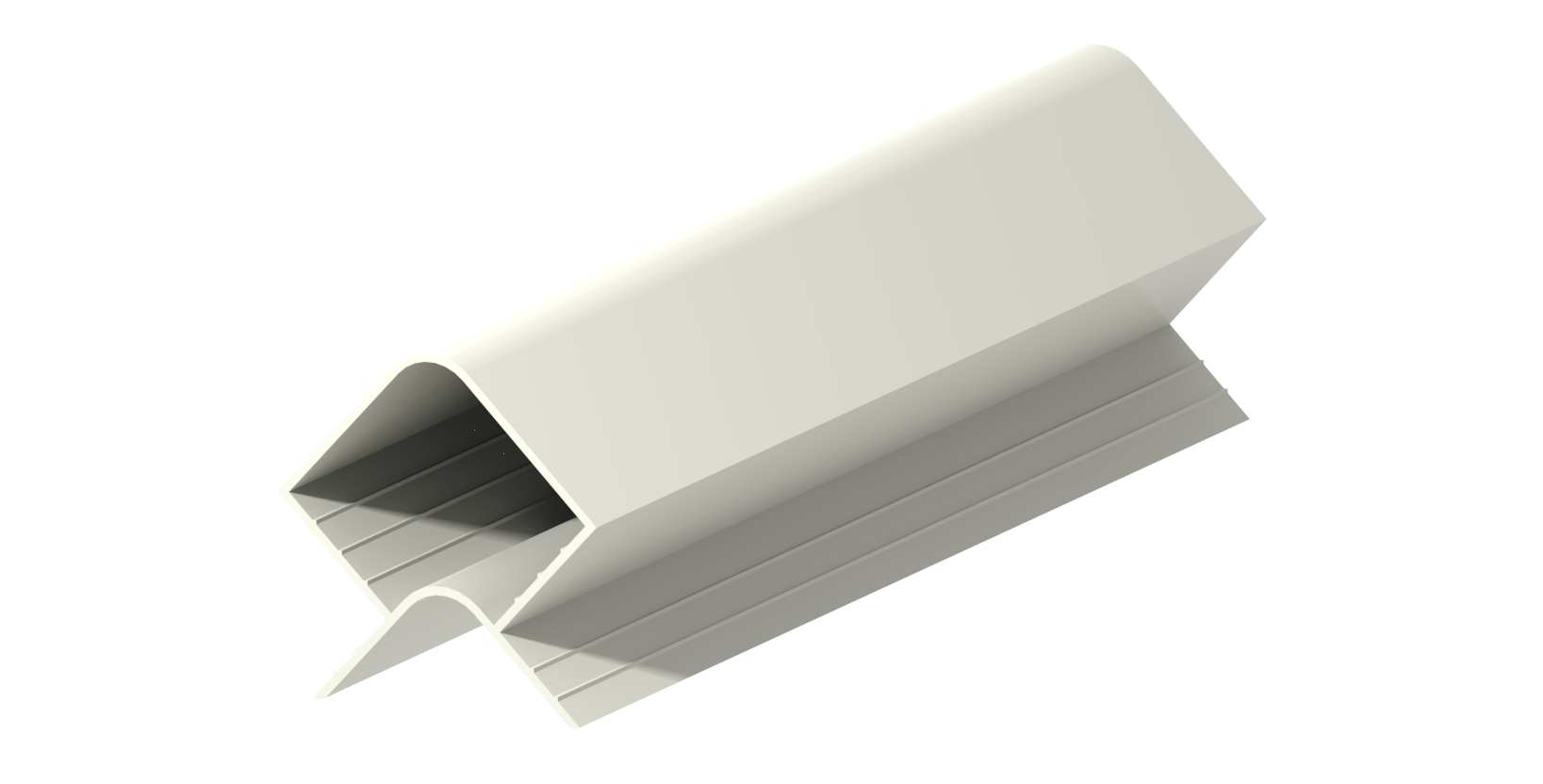

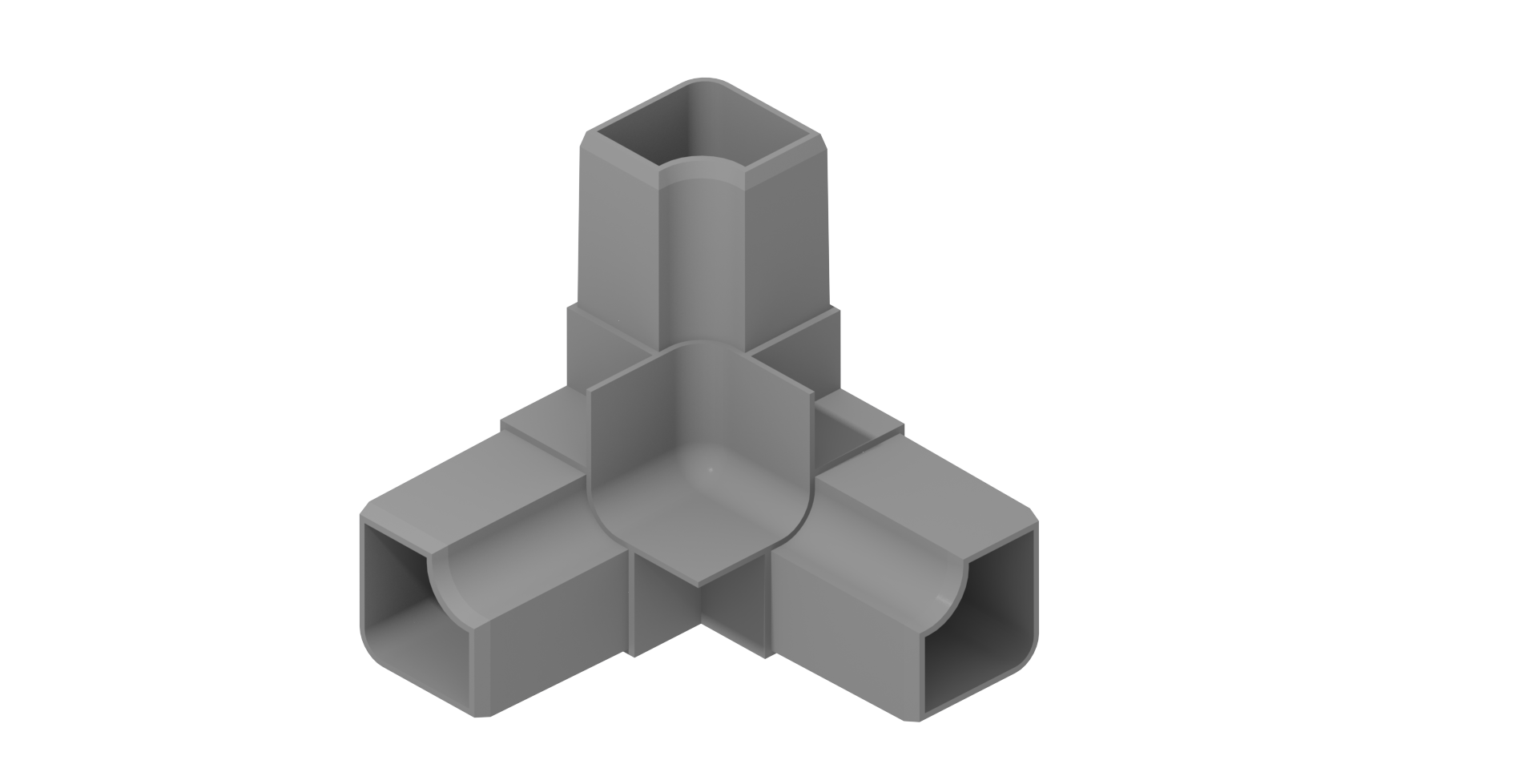

NTB ALC 4225 · NTB NYC 4225 · NTB ALO 4225 · NTB NYO 4225
- -
50-25
25 mm

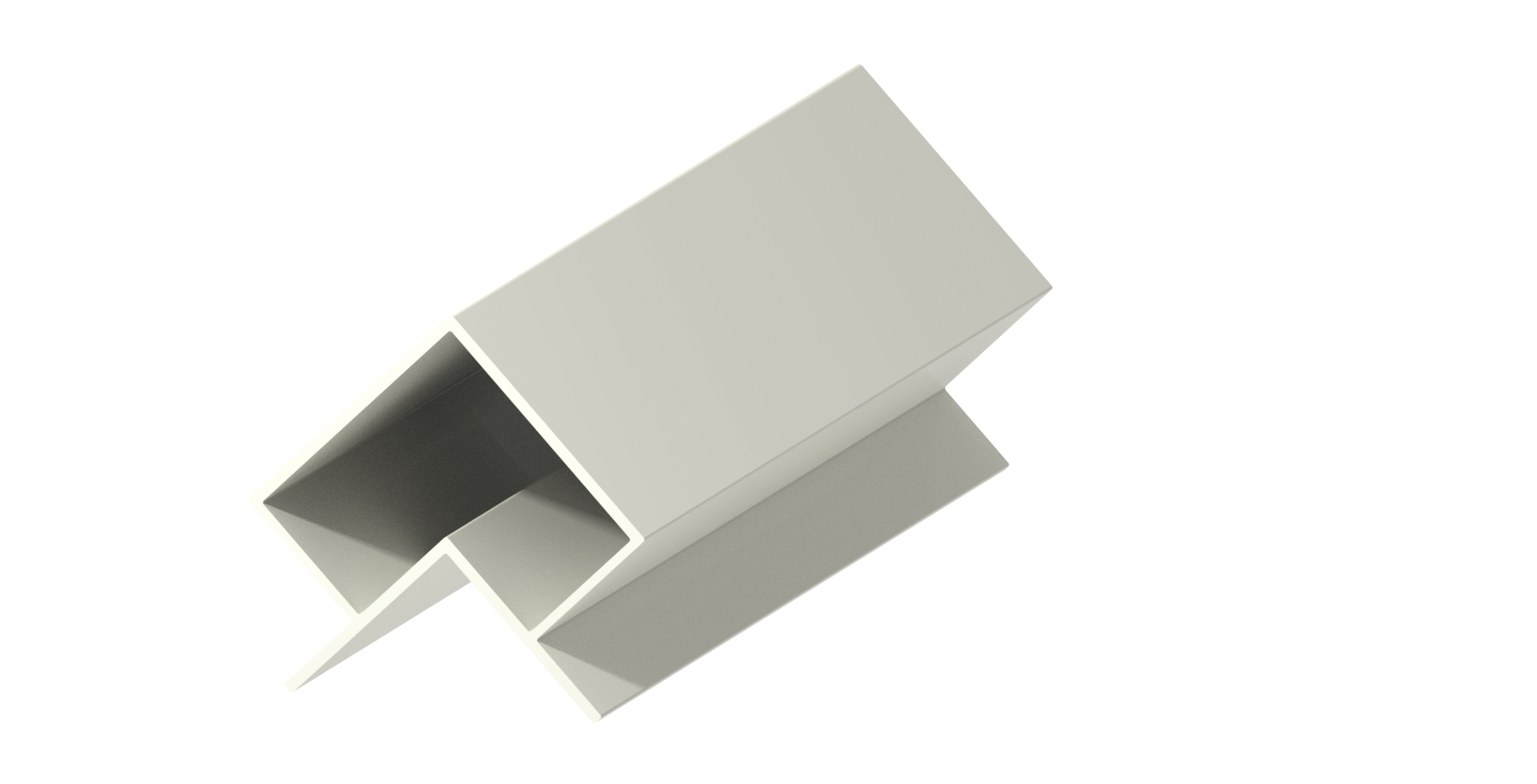

NTB ALC 5025 · NTB NYC 5025 · NTB ALO 5025 · NTB NYO 5025
- -
50-45-1
45 mm

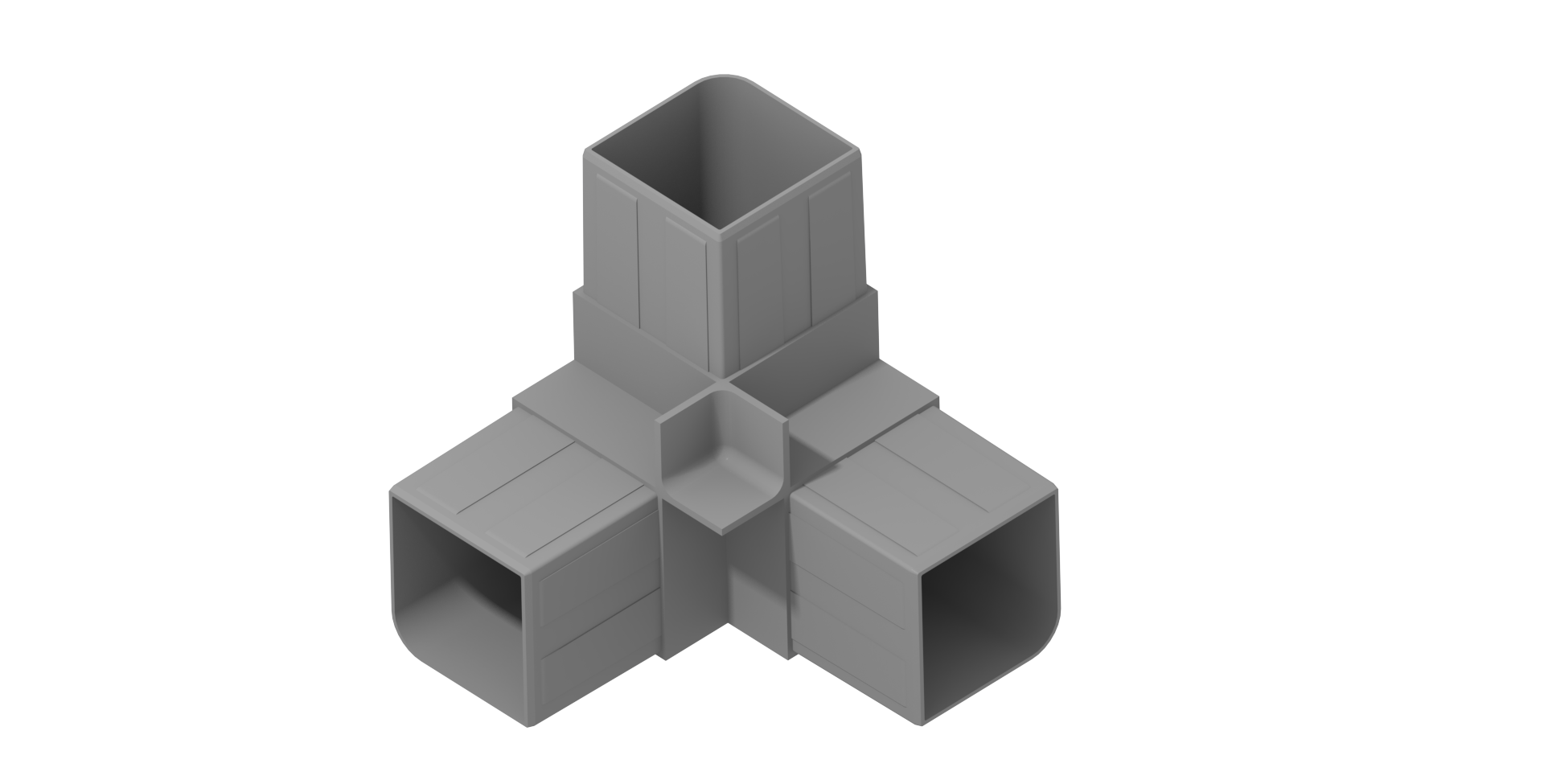

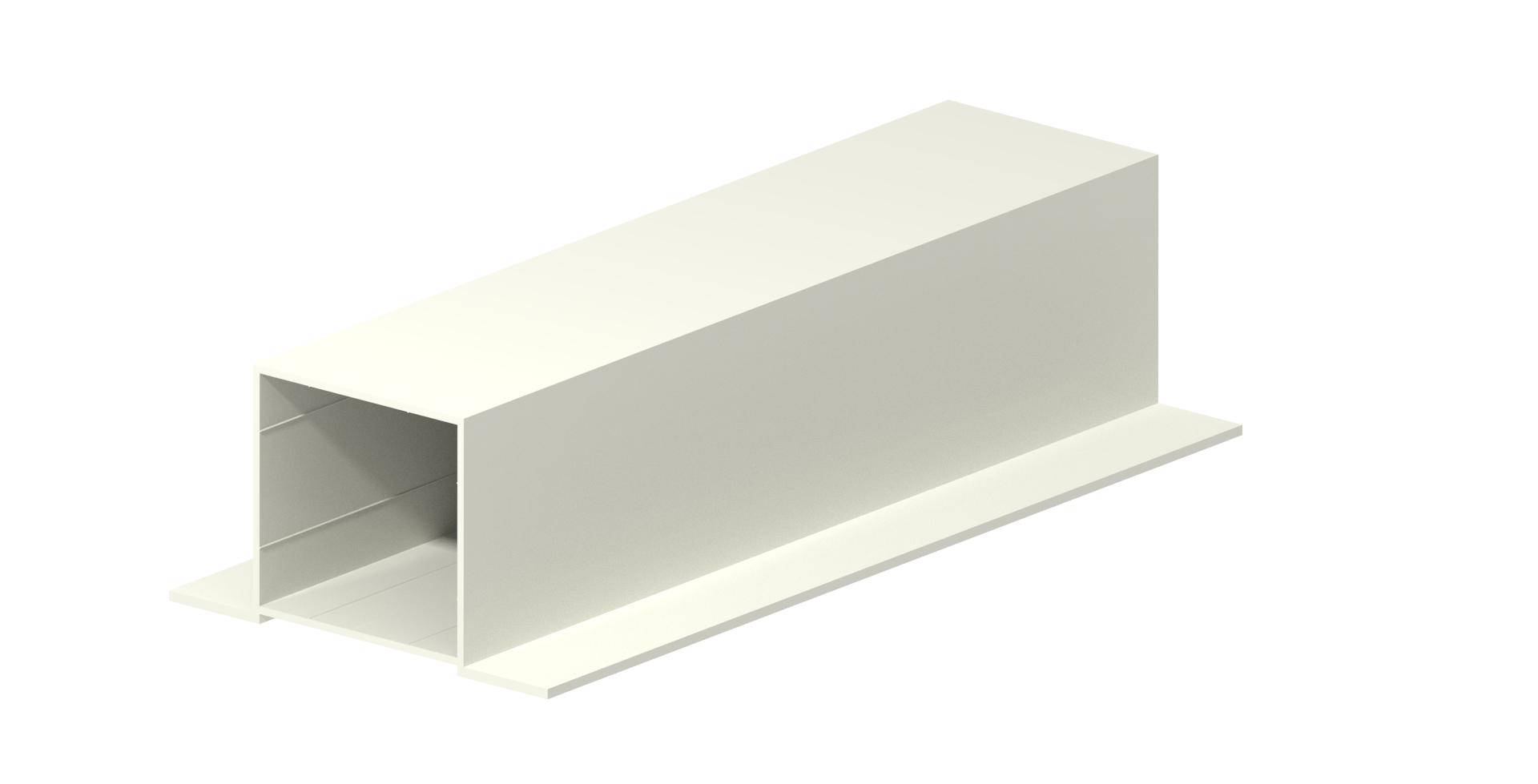

NTB ALC 5045-1 · NTB NYC 5045-1 · NTB ALO 5045-1 · NTB NYO 5045-1
- -
50-45-2
45 mm
NTB ALC 5045-2 · TB NYCC 5045 · NTB ALO 5045-2 · TB NYO 5045
- NTB profile + TB joiner
Thermal Break
40-25 TB
25 mm

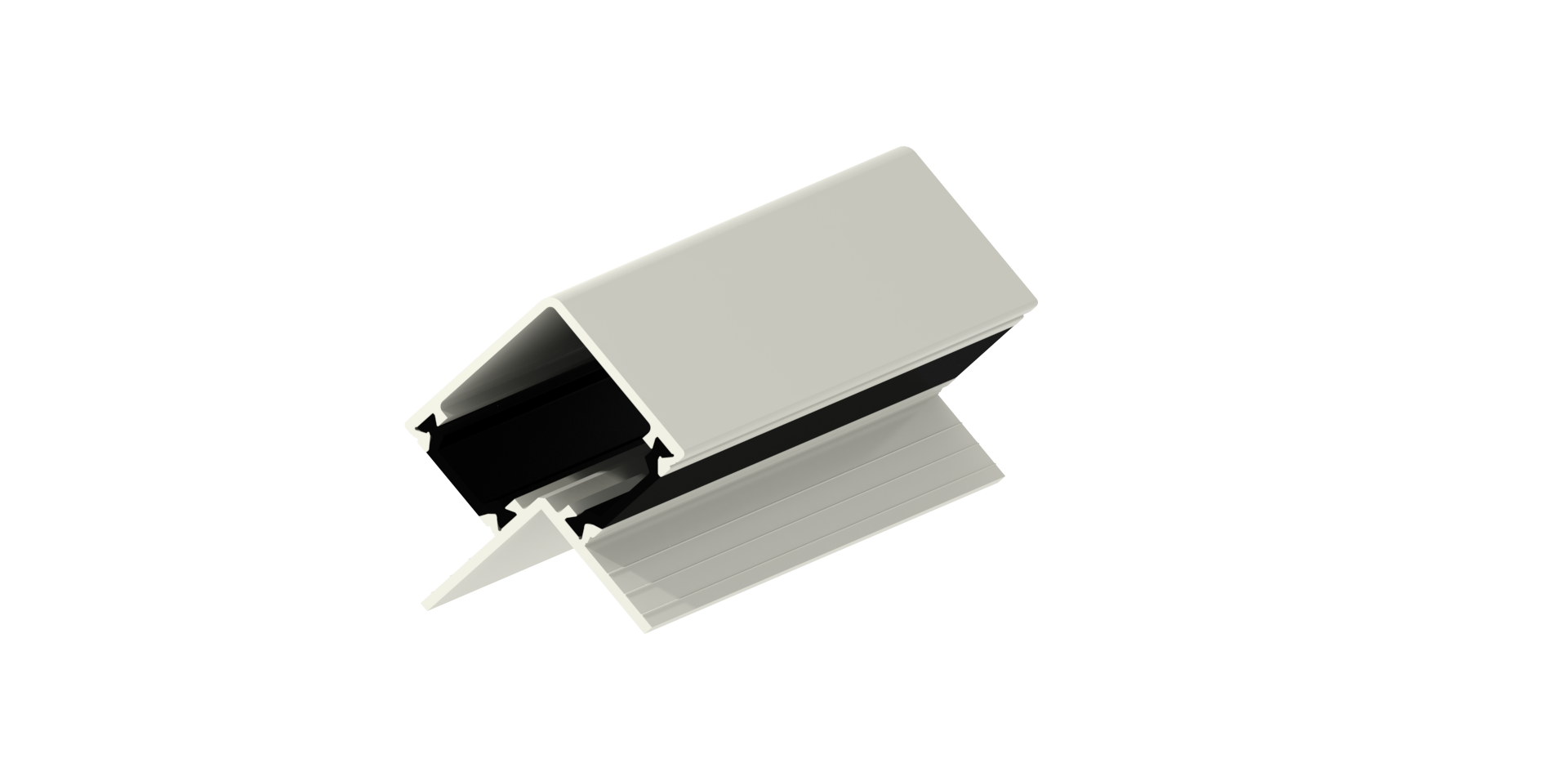

TB ALC 4025 · TB NYC 4025 · TB ALO 4025 · TB NYO 4025
- -
40-42
42 mm
TB ALC 4042 · TB NYC 4042 · TB ALO 4042 · TB NYO 4042
- -

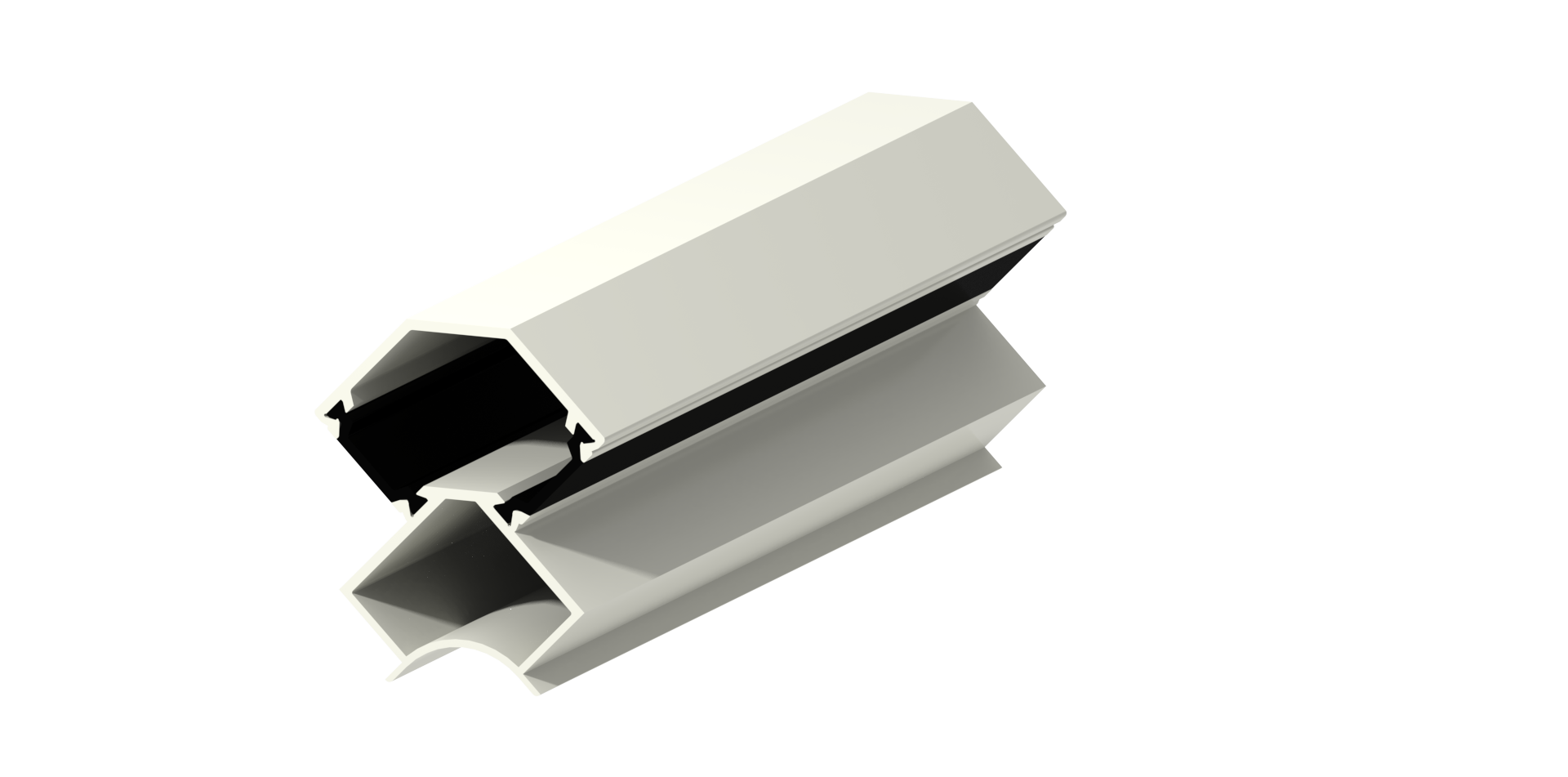

42-45
45 mm

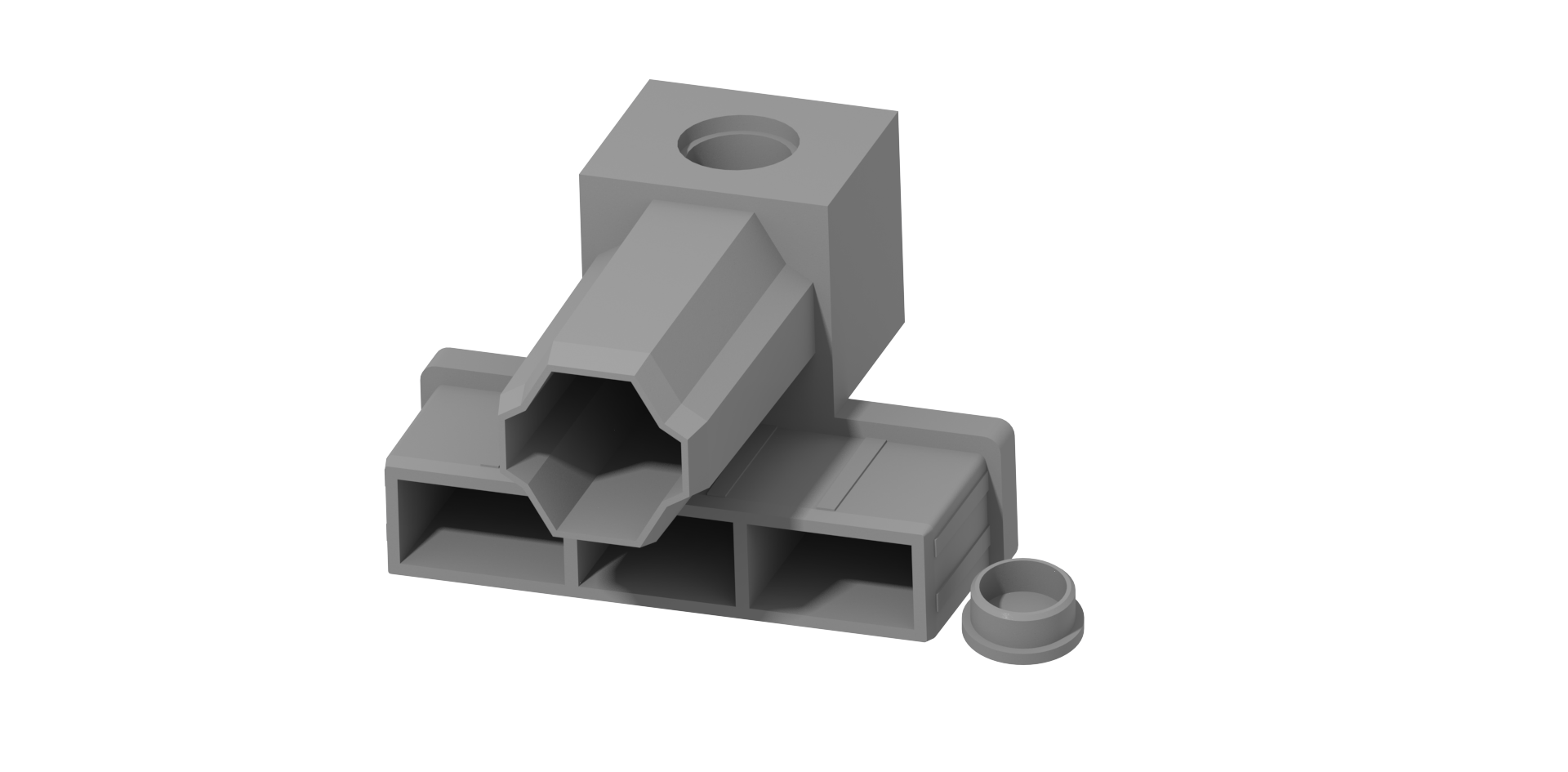

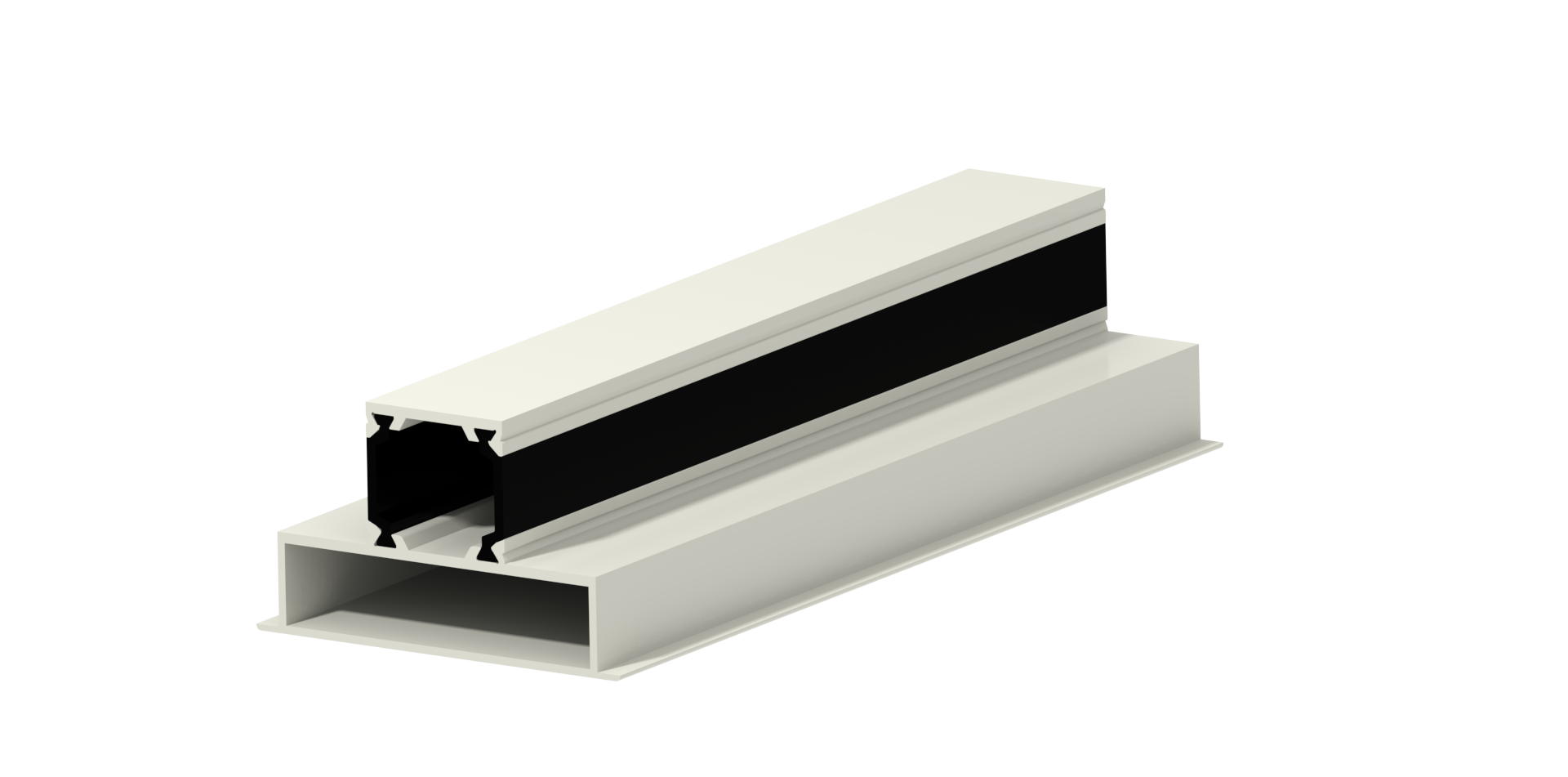

TB ALC 4245 · TB NYC 4245 · TB ALO 4245 · TB NYO 4245
- + Section Joining · Inner Open Door · Clean Room compatible
SR 42-45
45 mm
TB ALSRC 4245 · TB ALSRO 4245
- Serration Surface · + Section Joining
42-50
50 mm
TB ALC 4250 · TB NYC 4250 · TB ALO 4250 · TB NYO 4250
- + Section Joining

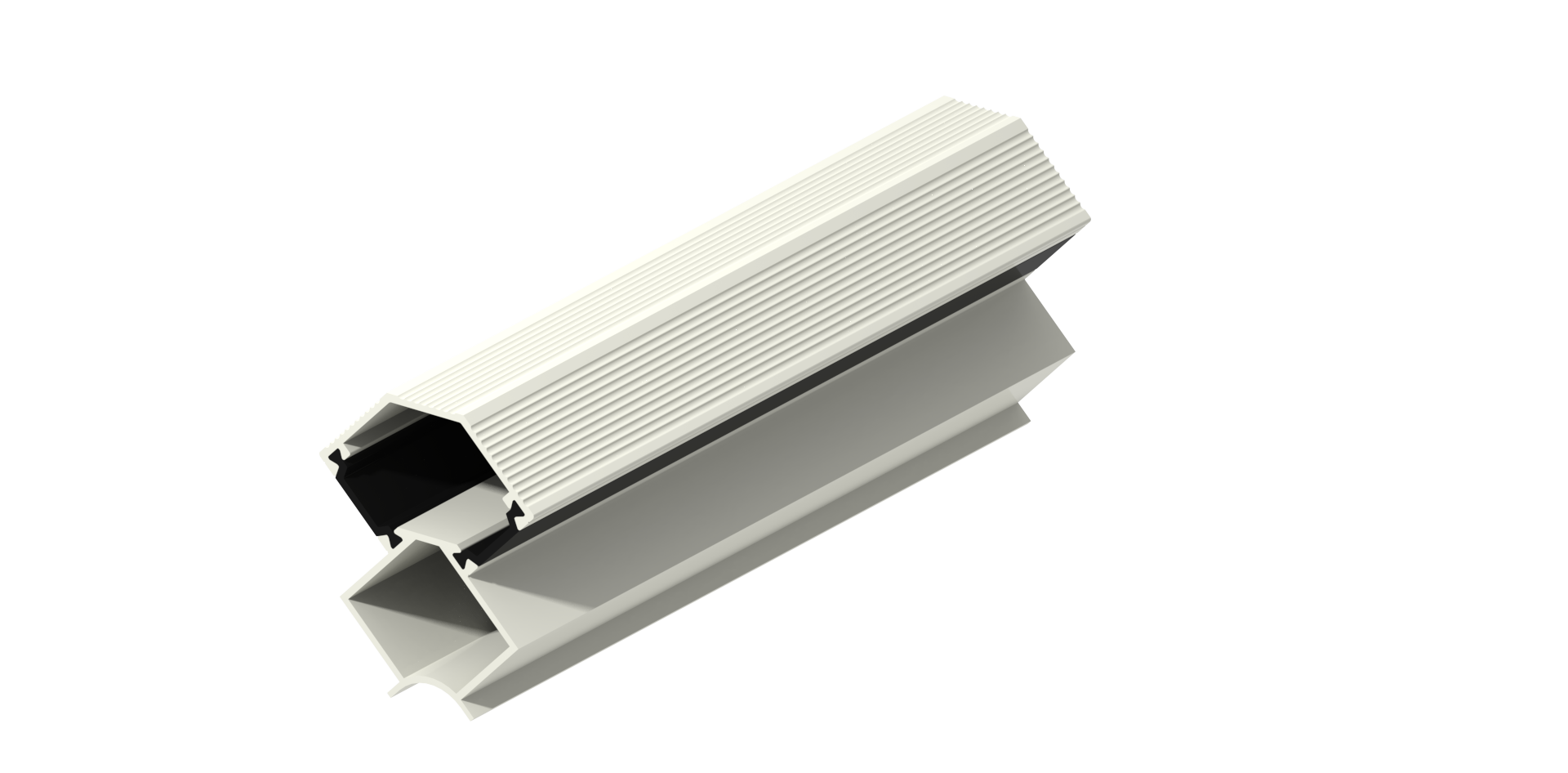

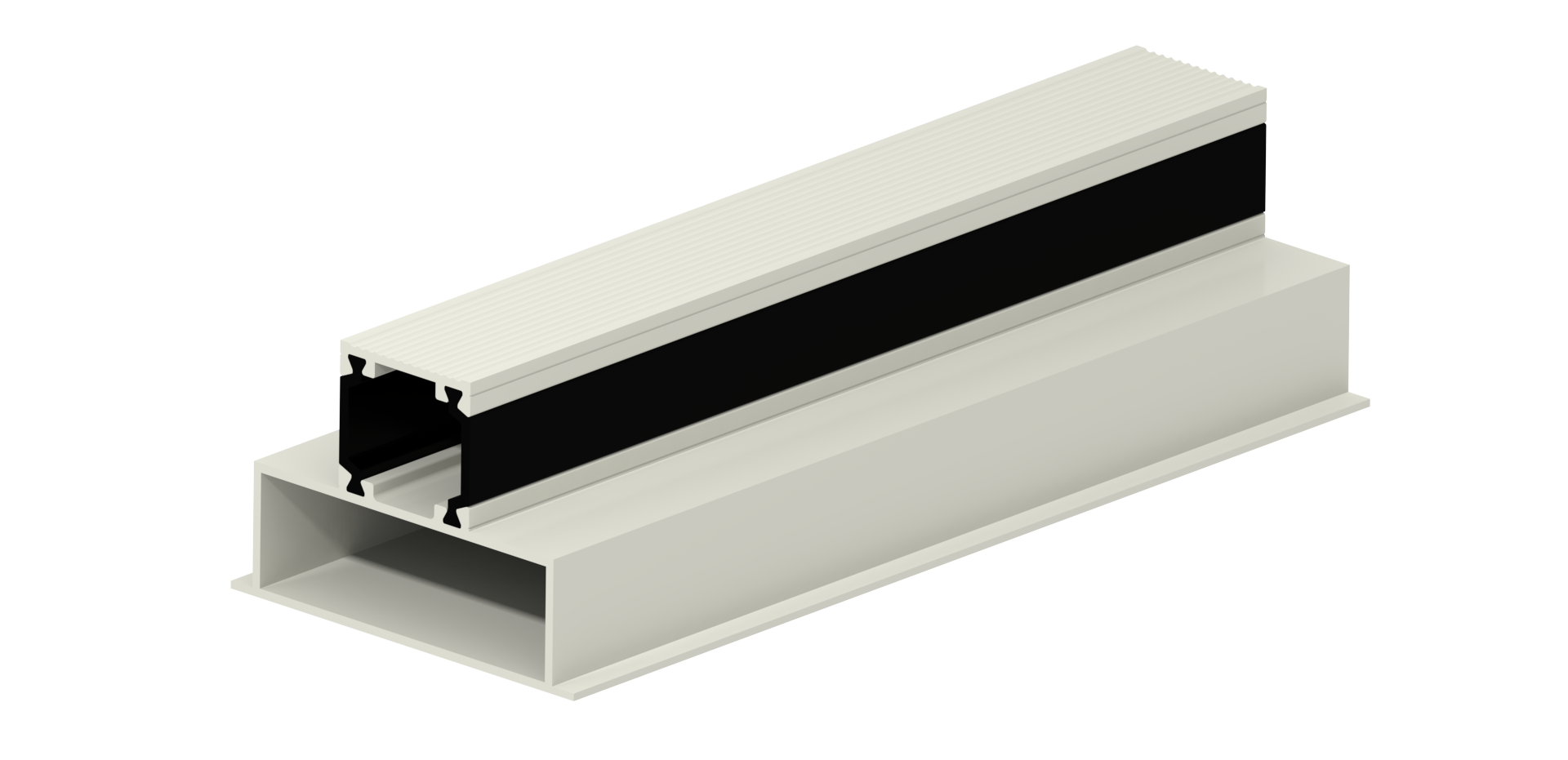

SR 42-50
45 mm
TB ALSRC 4250 · TB ALSRO 4250
- Serration Surface · + Section Joining

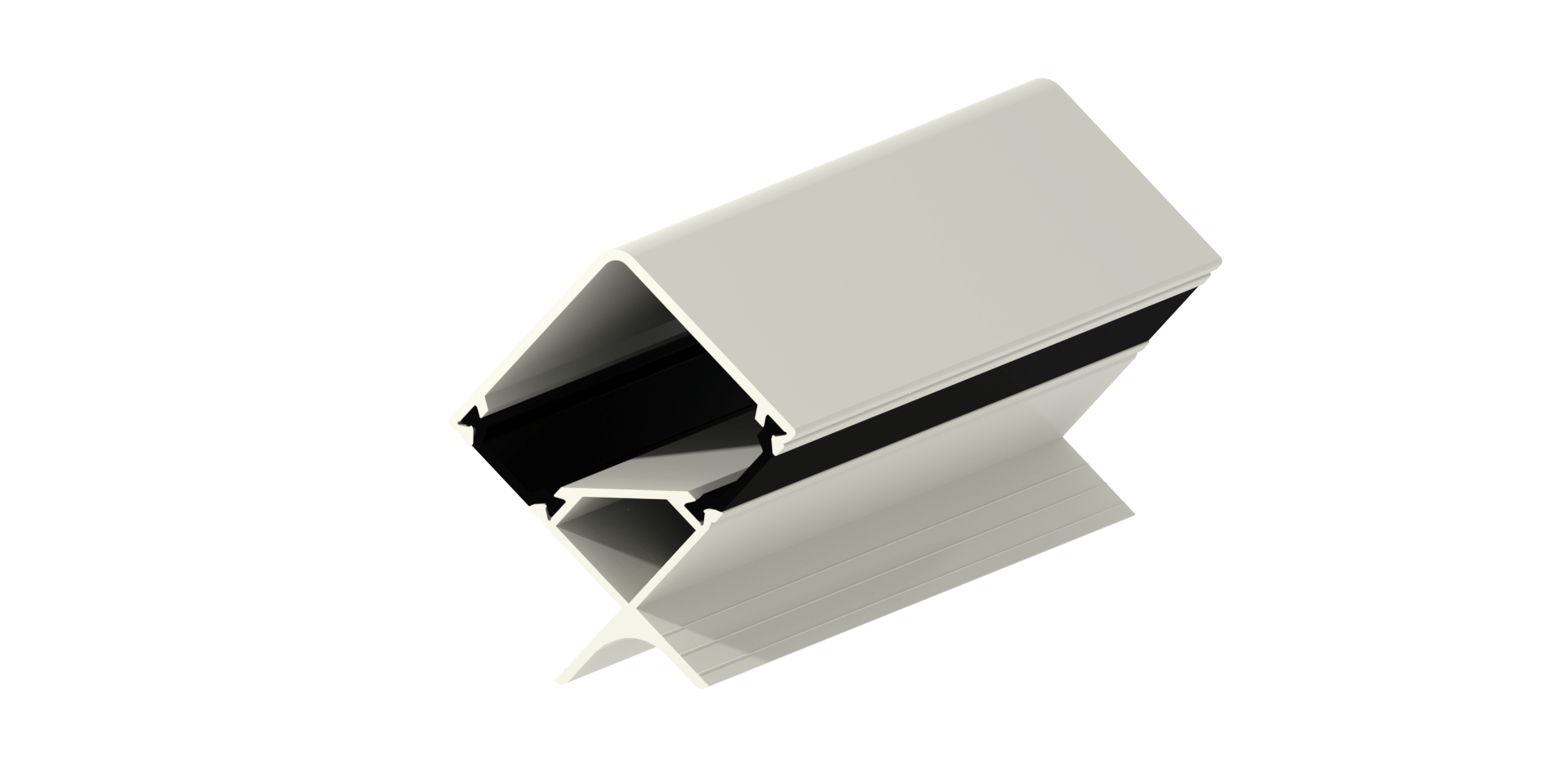

50-45 ★
45 mm
TB ALCC 5045 · TB NYCC 5045 · TB ALO 5045 · TB NYO 5045
- TÜV NORD Tested · EN 1886:2007 · + Section Joining

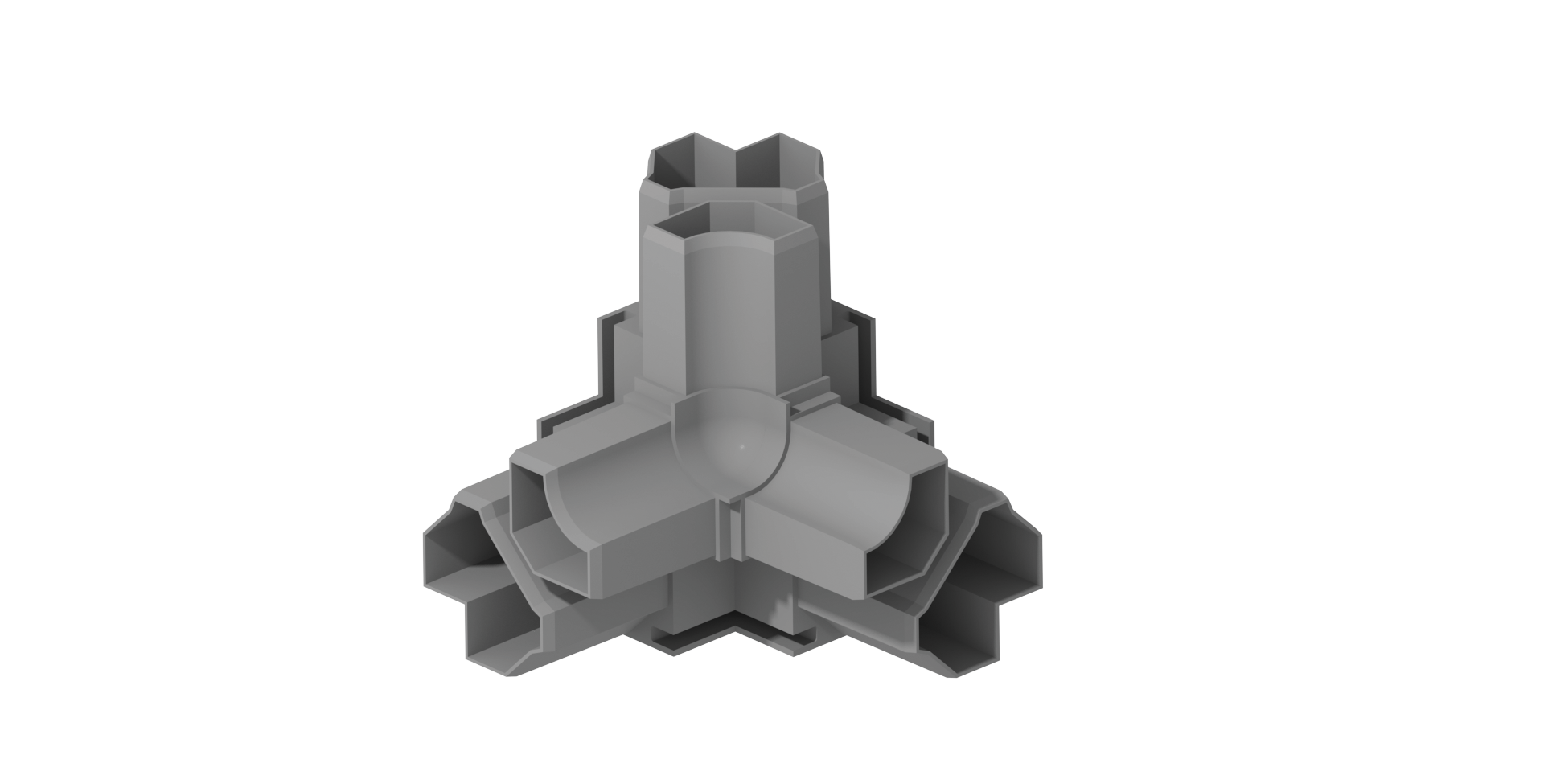

SF 57-50
50 mm

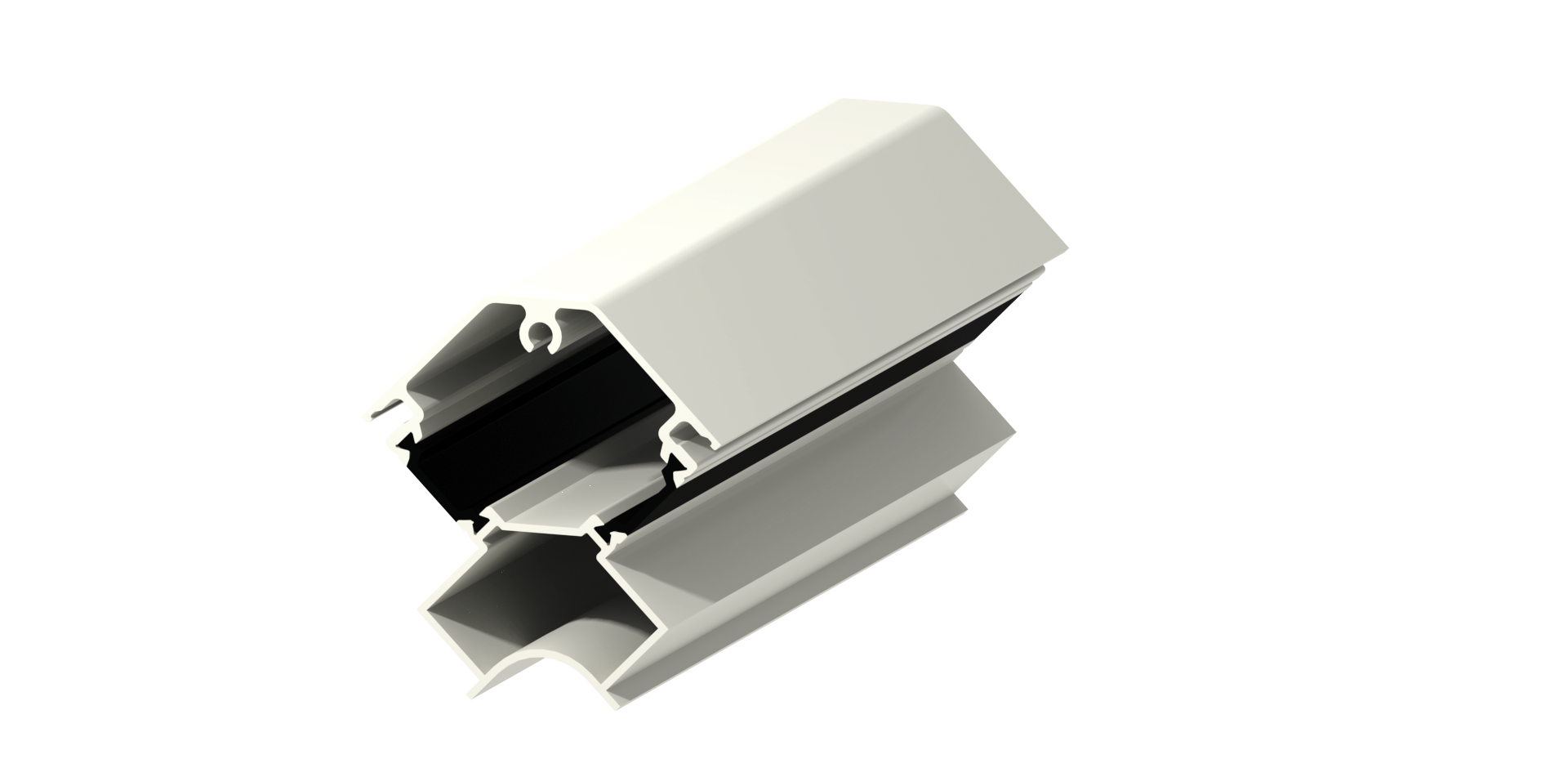

TB ALSFC 5750 · TB NYSFC 5750 · TB ALSFO 5750 · TB NYSFO 5750
- Snap Fix · + Section Joining · Panel Strip

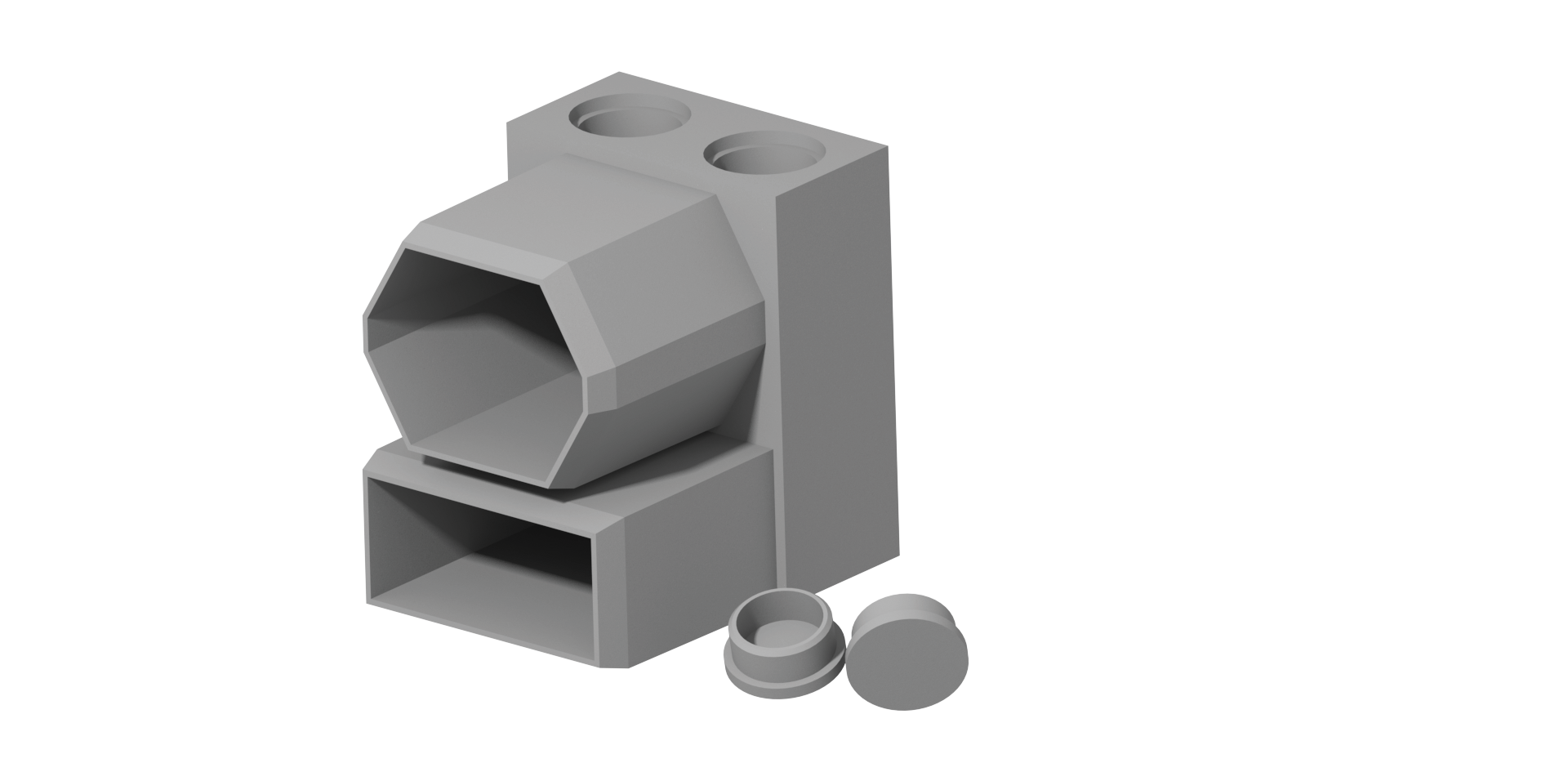

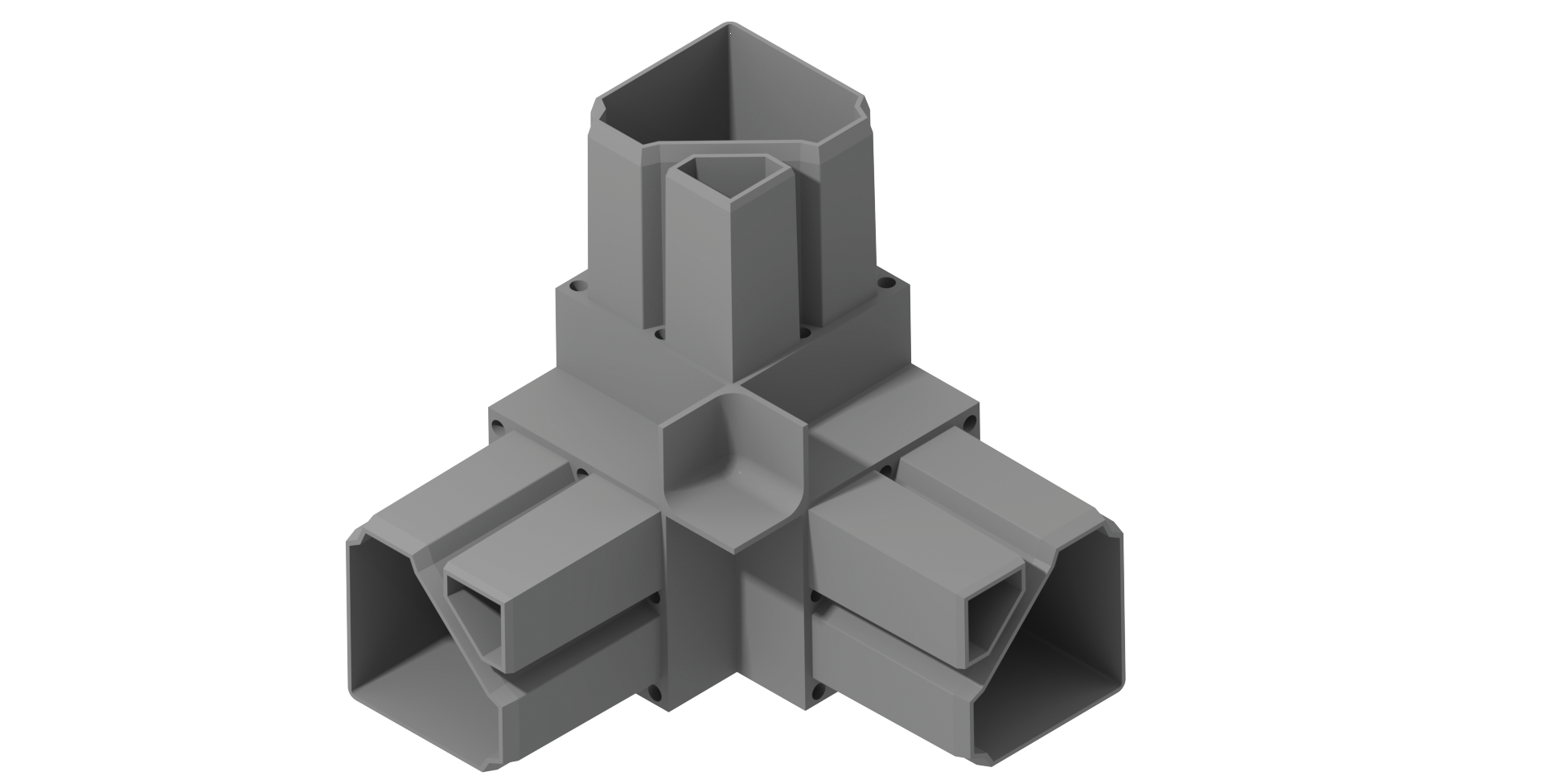

52-48
48 mm

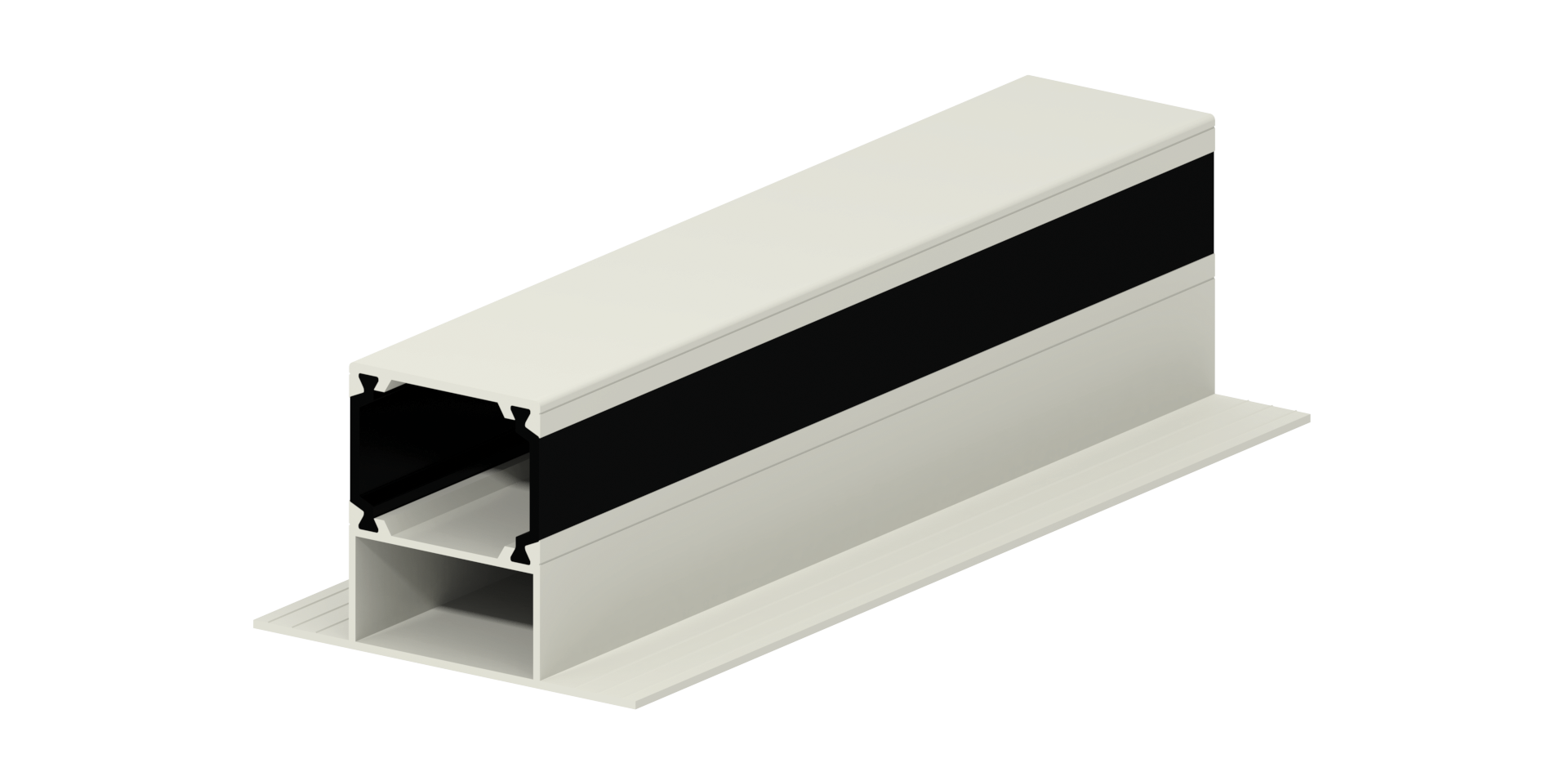

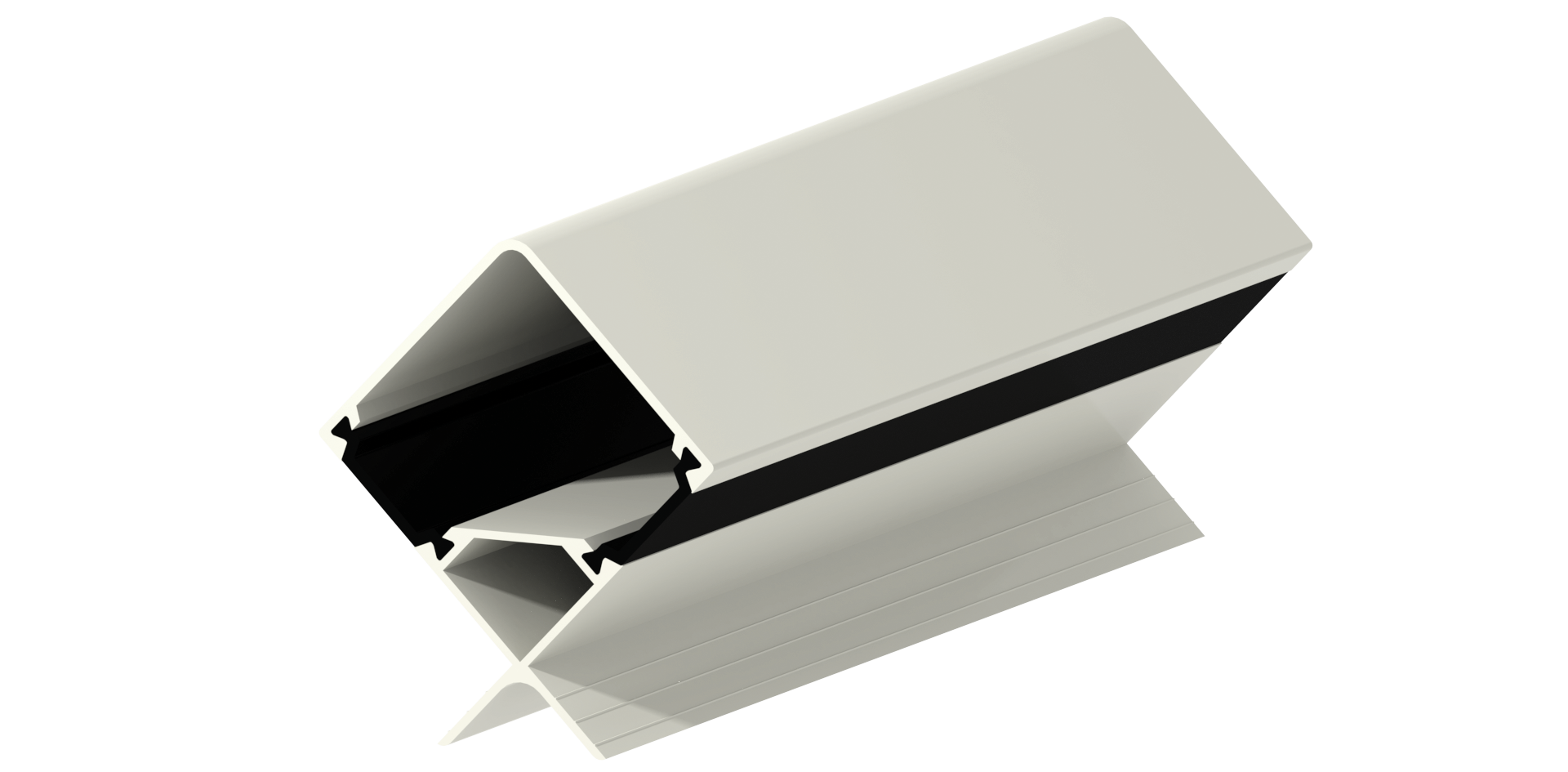

TB ALCC 5248 · TB NYCC 5248 · TB ALO 5248 · TB NYO 5248
- + Section Joining

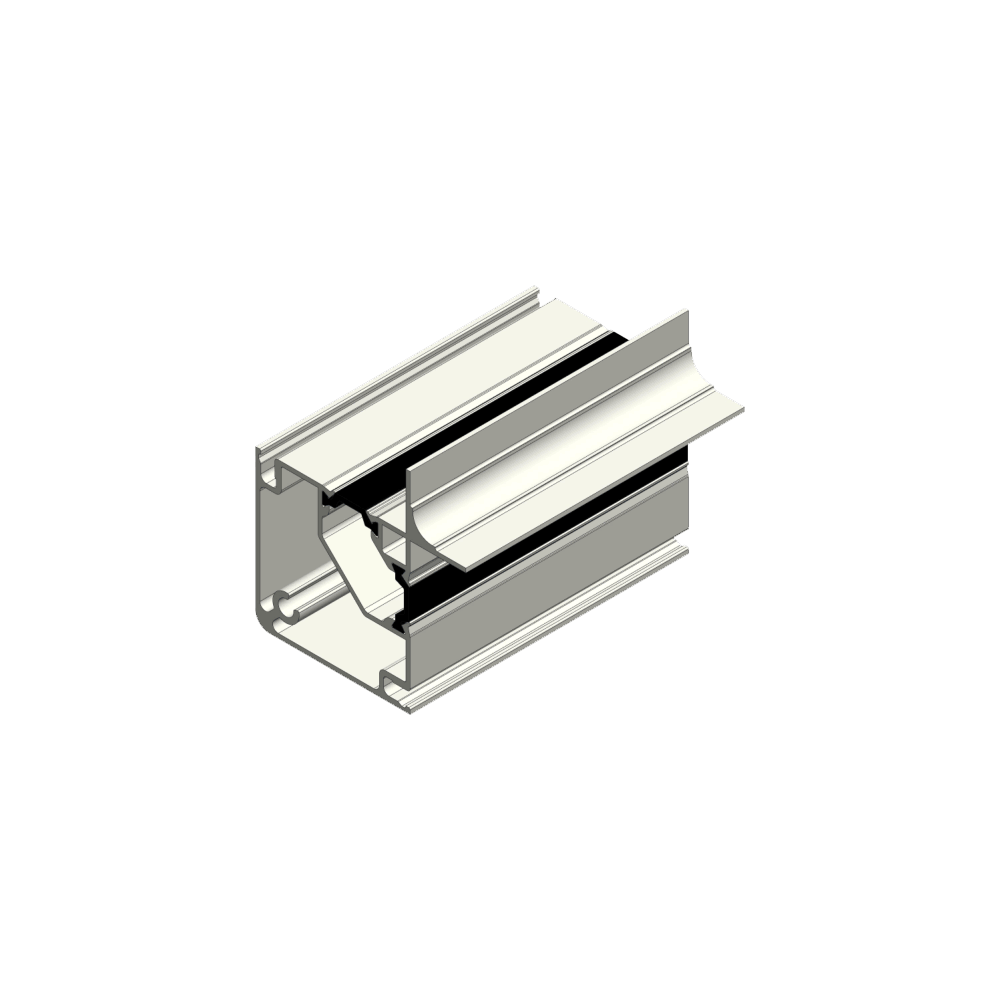

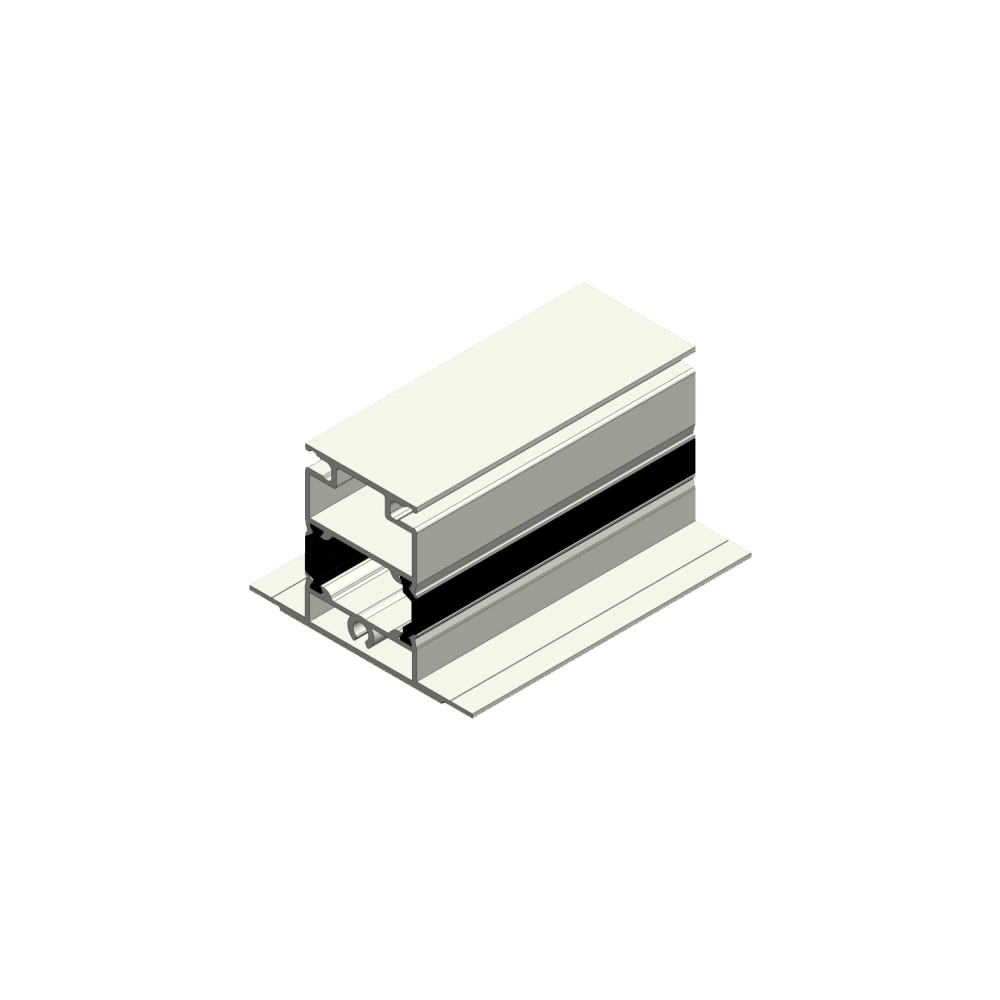

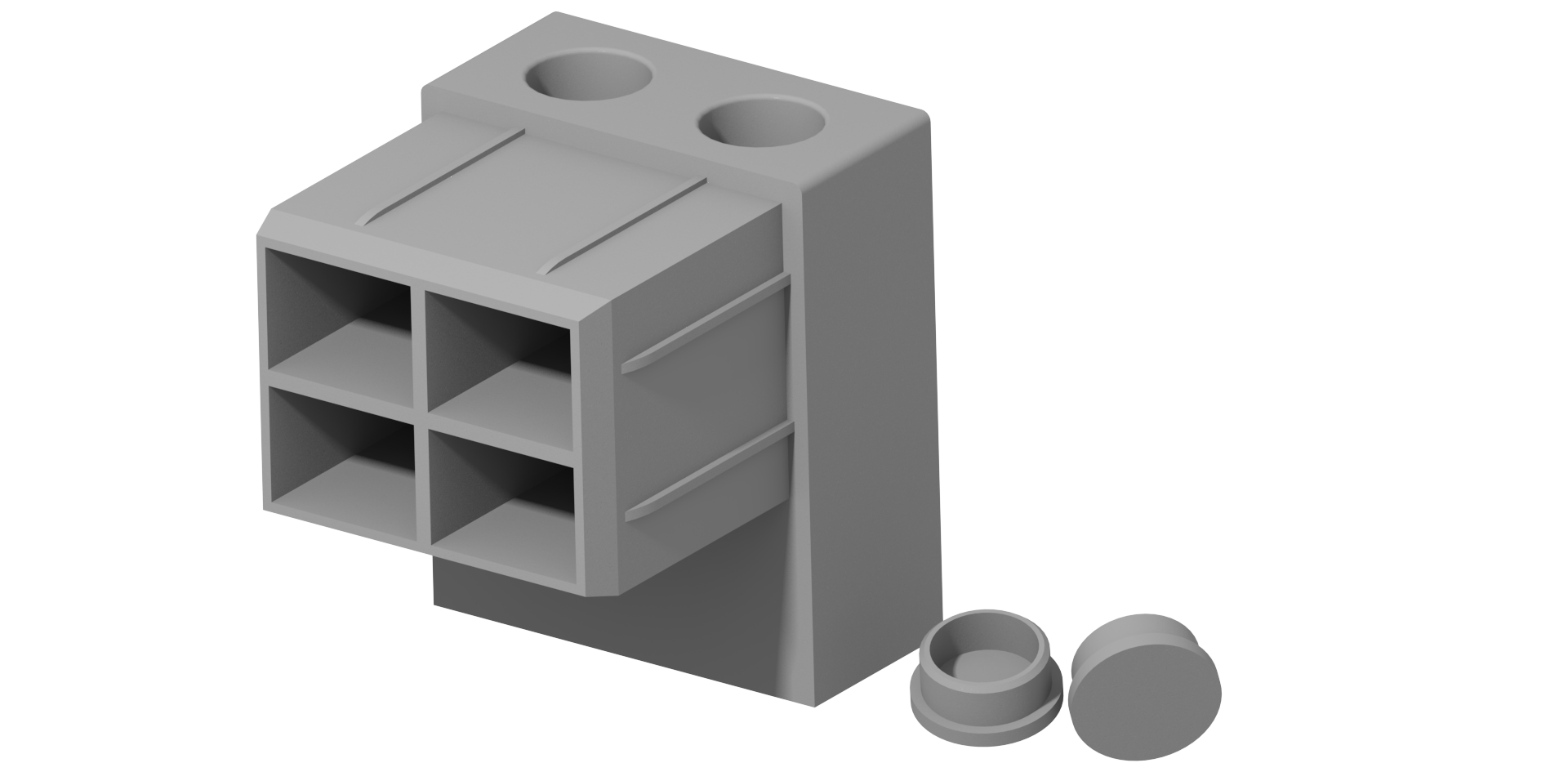

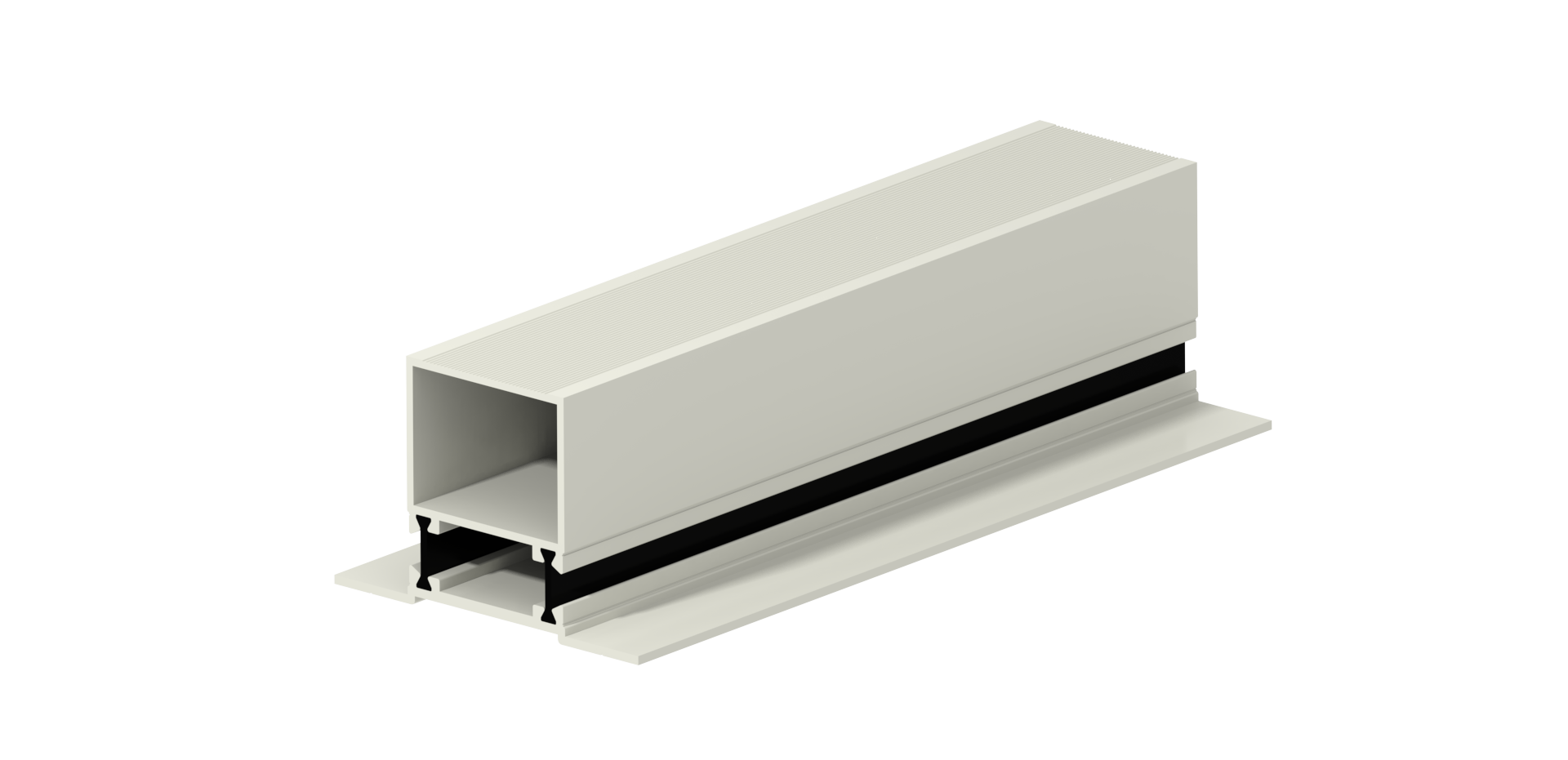

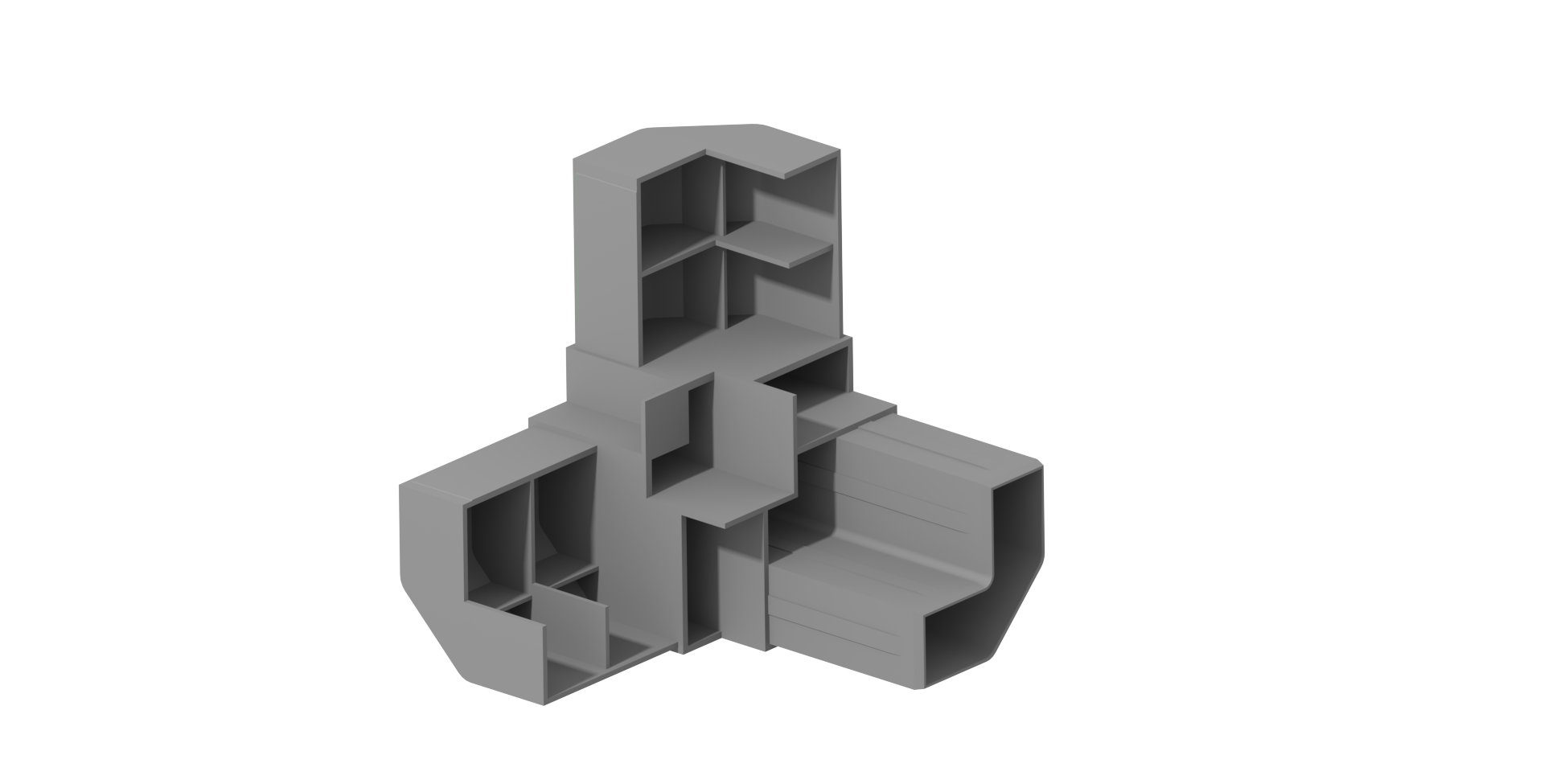

70-50
50 mm

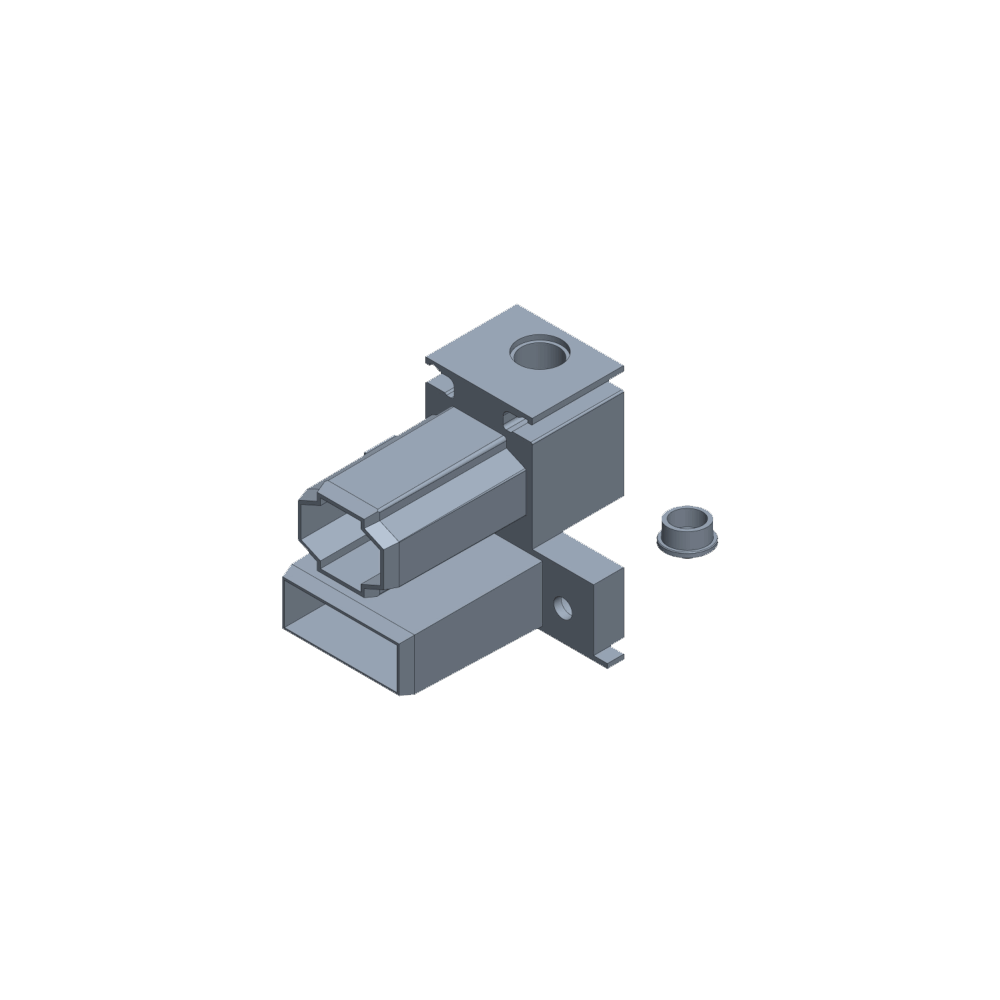

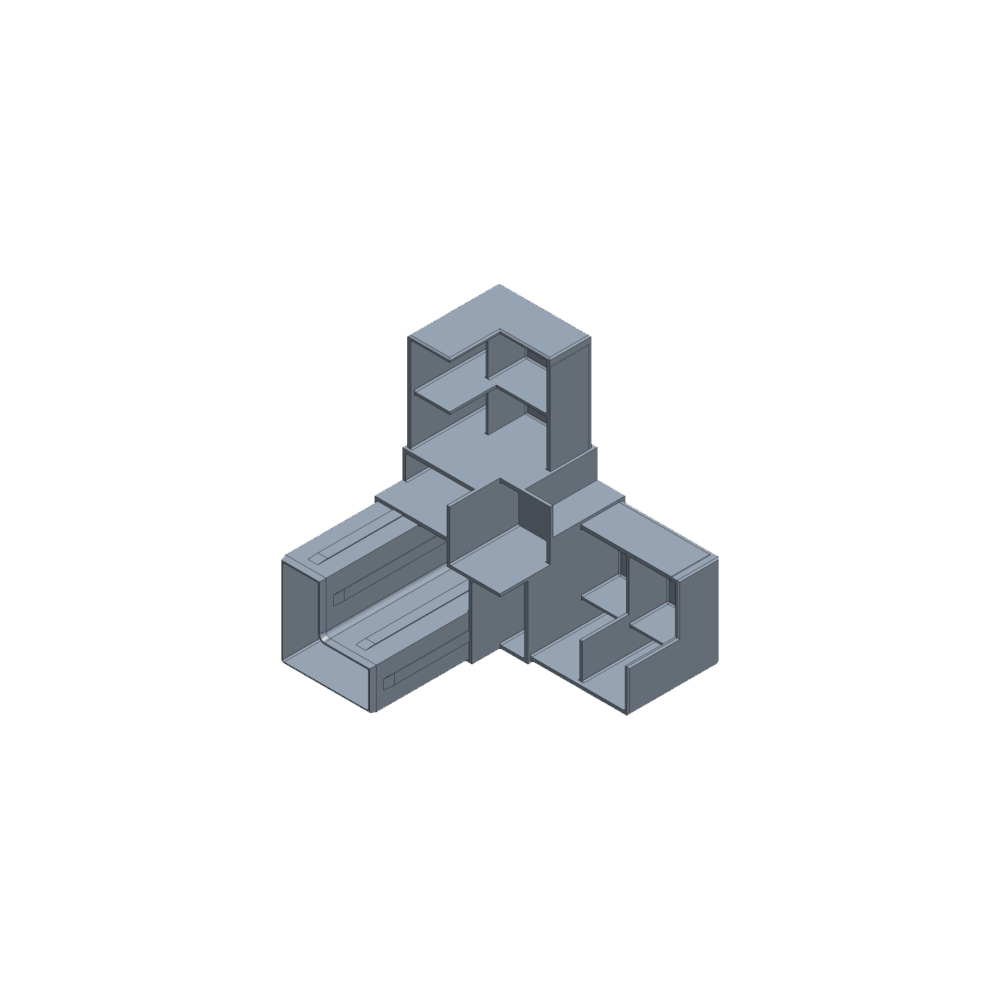

TB ALC 7050 · TB NYC 7050 · TB ALO 7050 · TB NYO 7050
- Heavy Duty
Engineering Features
Advanced Profile Technologies
Purpose-built profile systems designed for high-performance AHU manufacturing applications including cleanrooms, thermal isolation, and fast assembly systems.
