50-25 Series

Non-Thermal Break

A non-thermal break profile system for AHU panel frames with 25 mm panel thickness.

Get a Quote Download DataSheet
Non-Thermal Break
VDI 6022 Certified

System Specs

50-25 Series System Section Profile Layout Configuration
Panel Thickness 25 mm
Type Non-Thermal Break
Nylon Standard VDI 6022 Standard
Profile Length 5.8 Meters
Finish Mill Finished

Components Table

Component
Part Code
Material
Role
Corner Profile
NTB ALC 5025
Aluminium EN AW6063
Main framing corner system border line
Corner Joiner
NTB NYC 5025
Nylon VDI 6022
Angle structural connection intersection node
Omega Profile
NTB ALO 5025
Aluminium EN AW6063
Intermediate support structure division support
Omega Joiner
NTB NYO 5025
Nylon VDI 6022
Split-T cross section alignment unit

Product Components

Corner Profile

NTB ALC 5025 Aluminium Profile Layout Diagram
Part Code NTB ALC 5025
Material Aluminium EN AW6063
Role Main framing corner system border line

Corner Joiner

NTB NYC 5025 Corner Joiner Component Detail
Part Code NTB NYC 5025
Material Nylon VDI 6022
Role Angle structural connection intersection node

Omega Profile

NTB ALO 5025 Omega Profile Structural Configuration Section
Part Code NTB ALO 5025
Material Aluminium EN AW6063
Role Intermediate support structure division support

Omega Joiner

NTB NYO 5025 Omega Joiner Component Detail
Part Code NTB NYO 5025
Material Nylon VDI 6022
Role Split-T cross section alignment unit

Additional Variants

Section Joining Profile

Section Joining Variant Profile Component
Type / Context Section joining framework component
Material Spec Aluminium EN AW6063

Inner Door / Snap Fix Variant

Snap Fix Inner Door System Layout
Type / Context Clean room integrated flush casing setups
Material Spec Nylon Standard Assembly

Related Series

TB ALO 4025 Framework Asset

40-25 Series NTB

Available in both non-thermal break and thermal break configurations for 25 mm panel AHU construction.

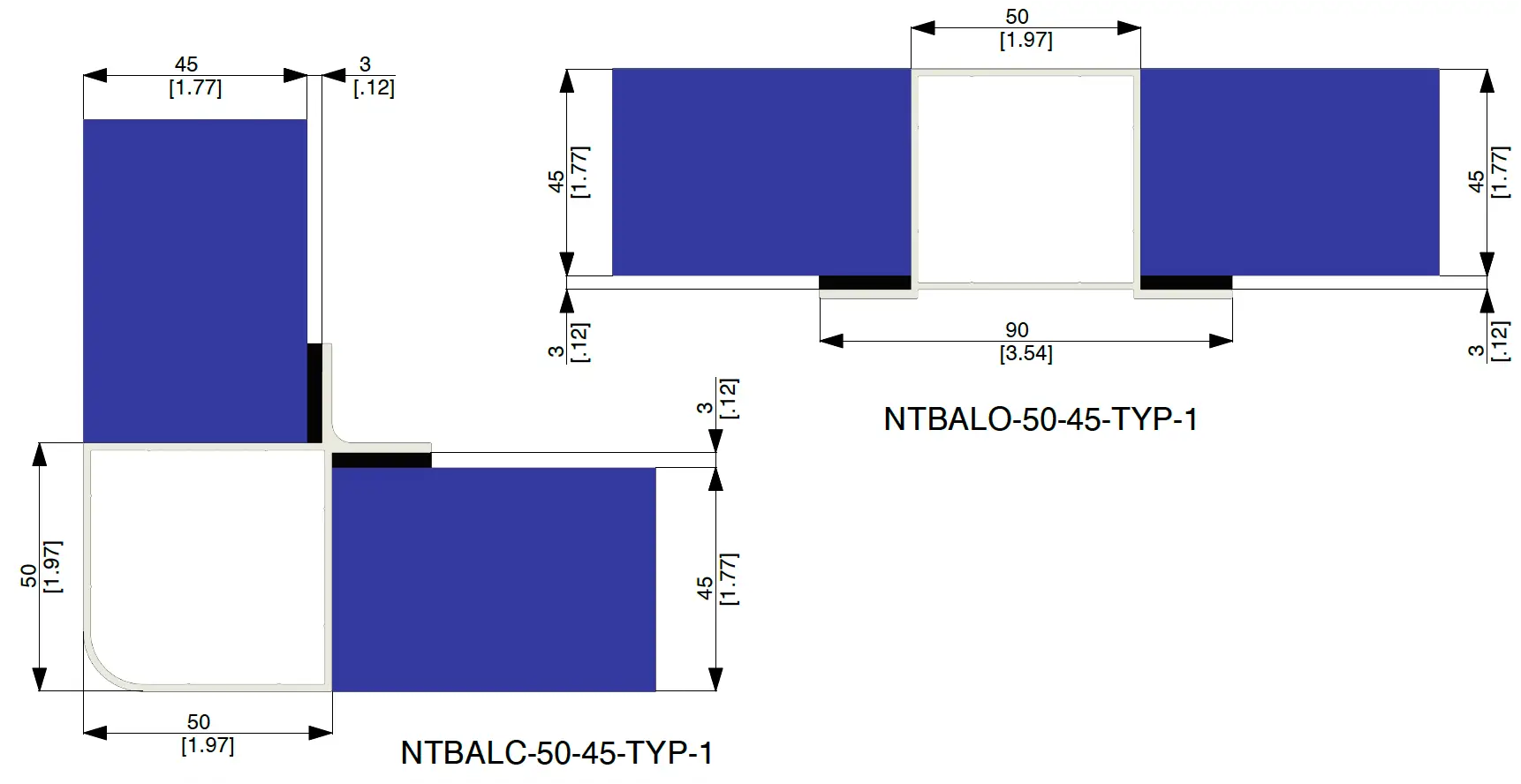

50-45-2 Hybrid Air Handling Framework Profile Layout

50-45-1 Series

A non-thermal break profile system for AHU panel frames with 45 mm panel thickness.

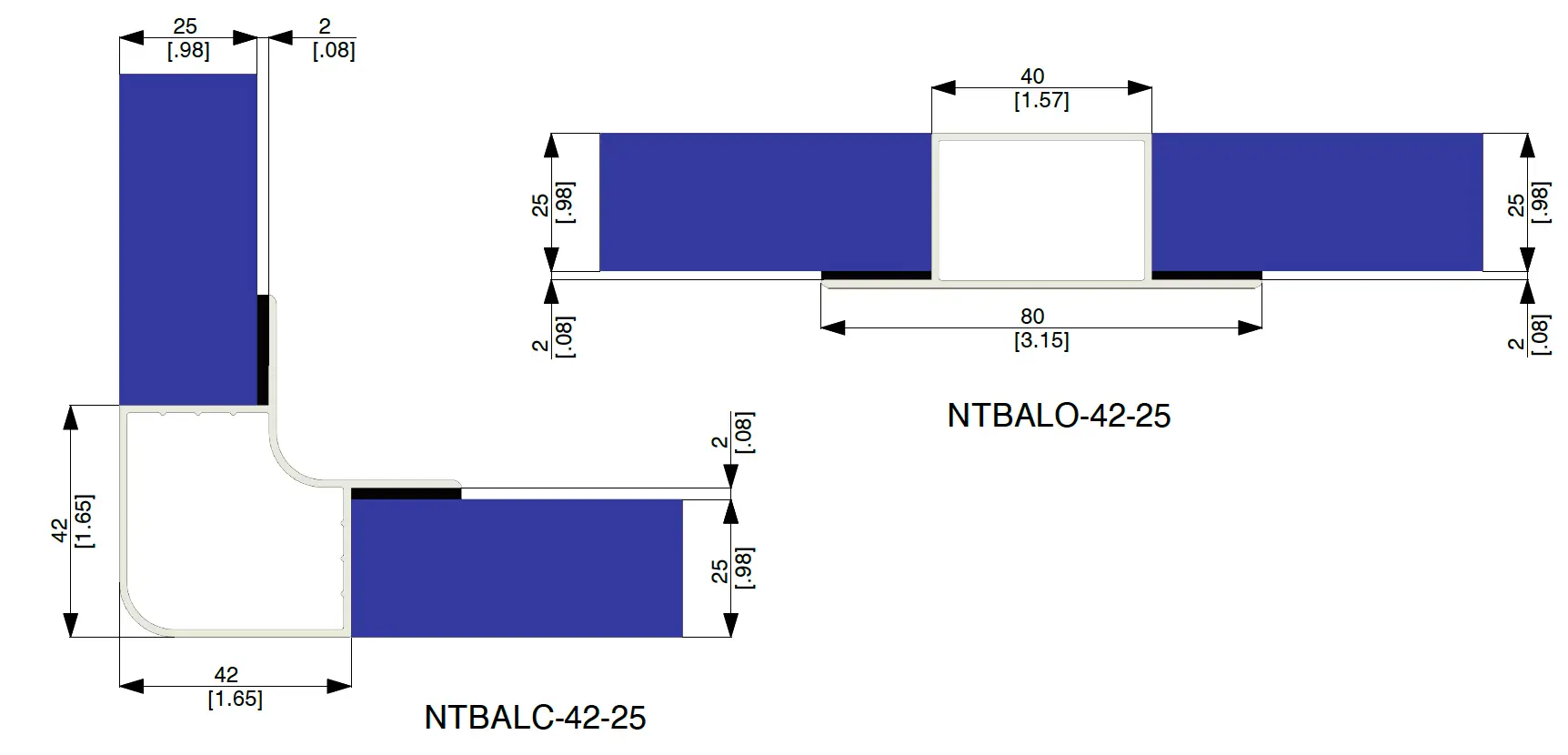

40-25 Series Framework
