50-45-1 Series
Non-Thermal Break
A non-thermal break profile system for AHU panel frames with 45 mm panel thickness.
Non-Thermal Break
VDI 6022 Certified
System Specs
Panel Thickness
45 mm
Frame Architecture
Non-Thermal Break
Nylon Certification
VDI 6022 Standard
Components Table
Component
Part Code
Material
Corner Profile
NTB ALC 5045-1
Aluminium EN AW6063
Corner Joiner
NTB NYC 5045-1
Nylon VDI 6022
Omega Profile
NTB ALO 5045-1
Aluminium EN AW6063
Omega Joiner
NTB NYO 5045-1
Nylon VDI 6022
Product Components

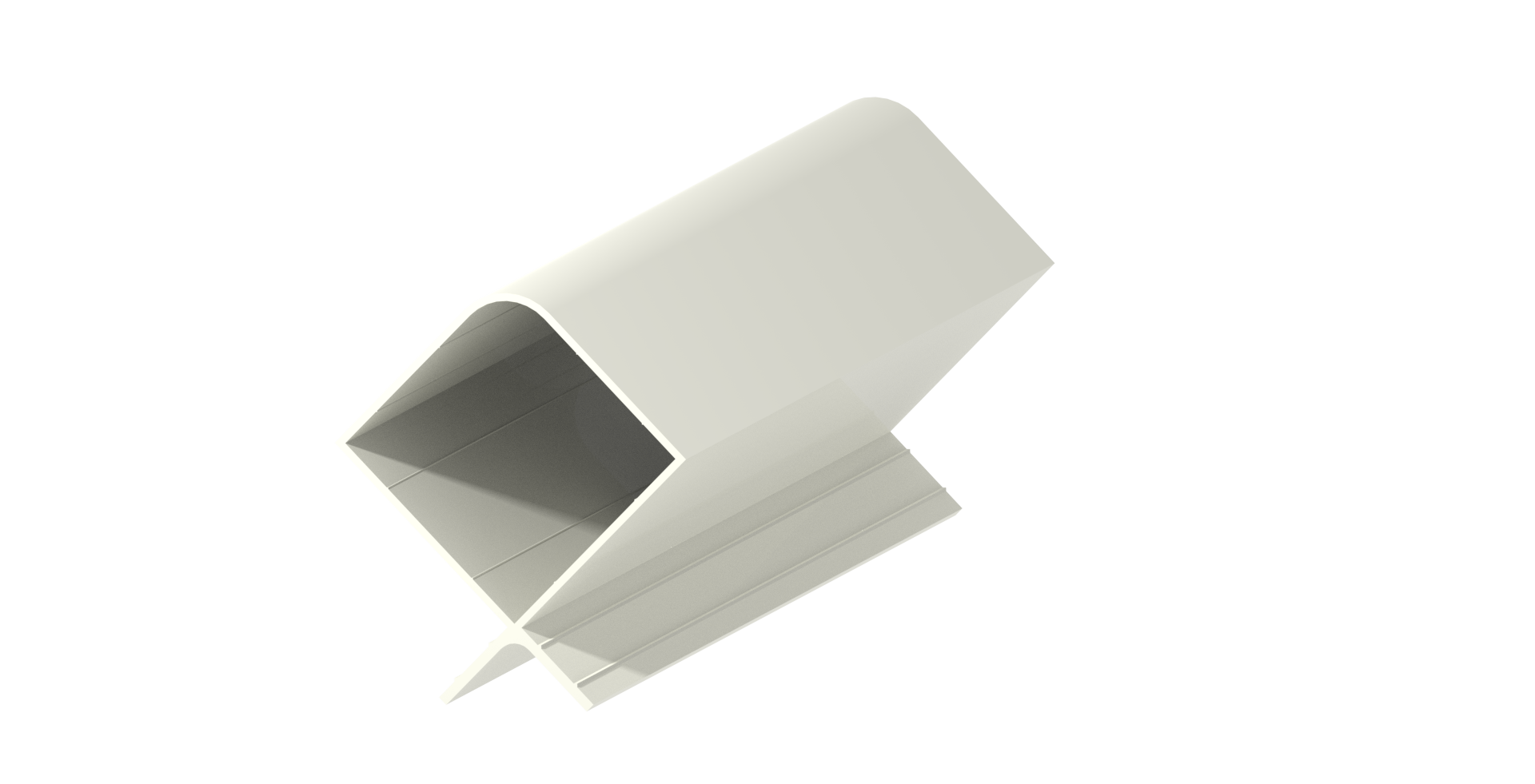

Corner Profile

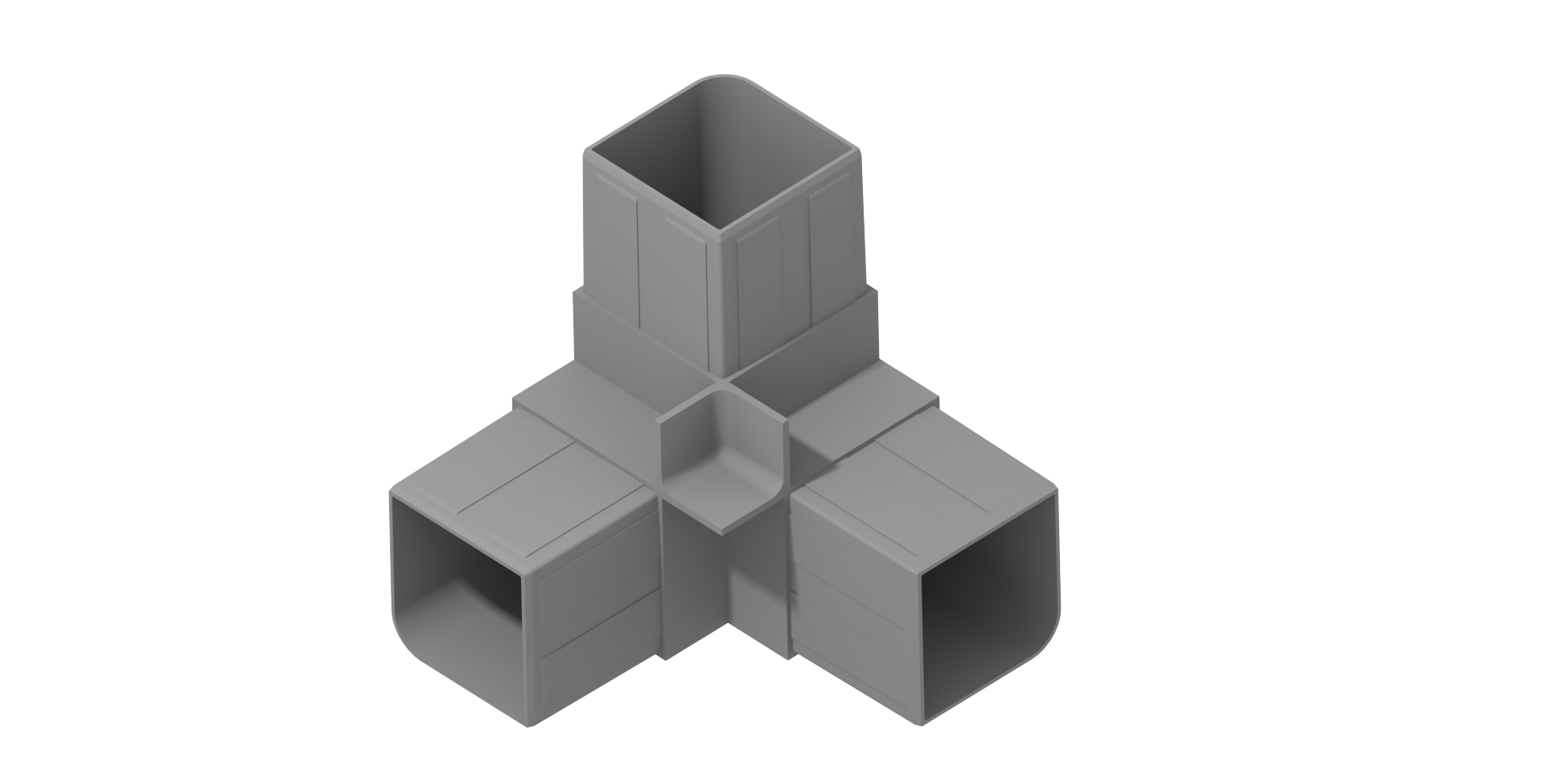

Corner Joiner

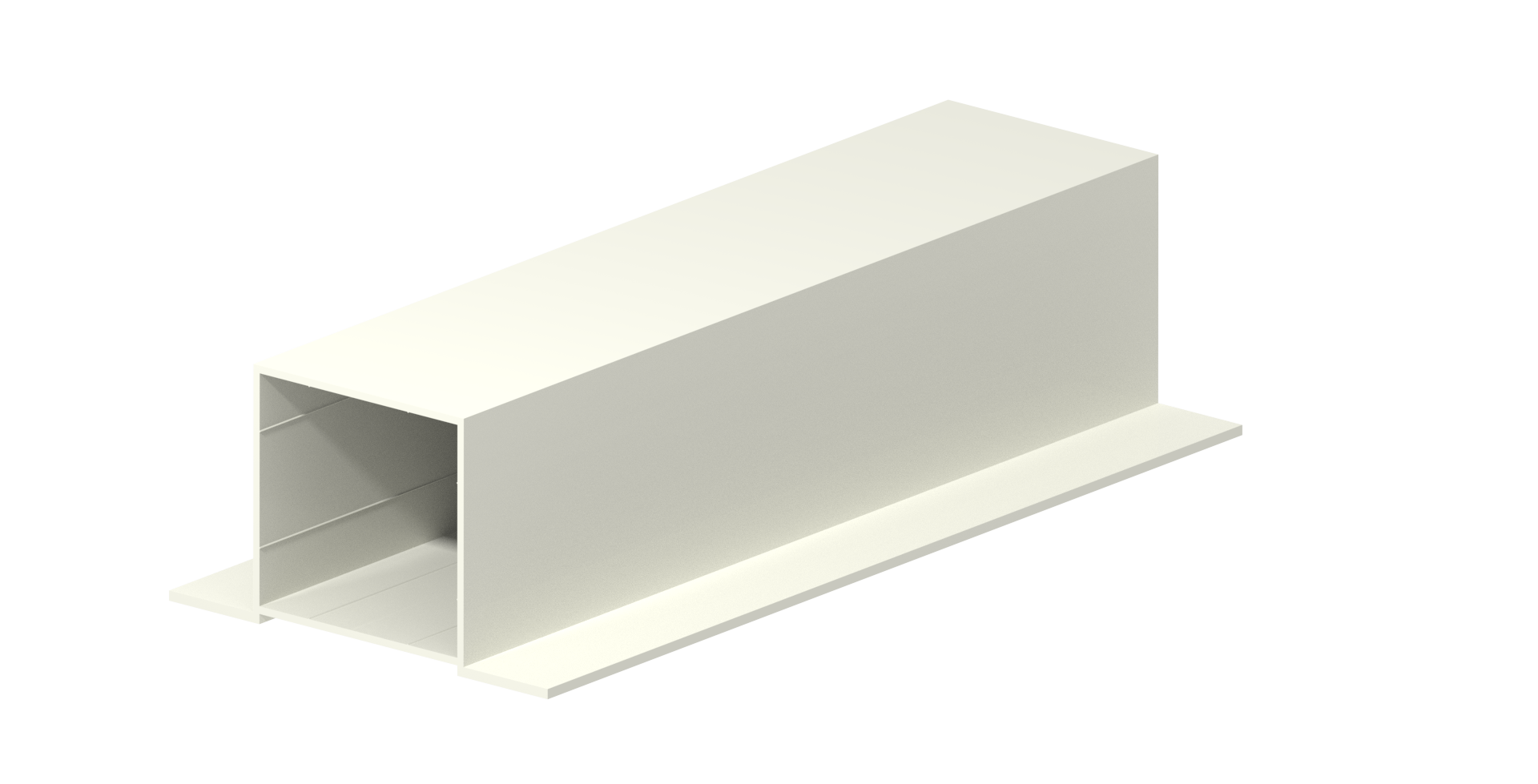

Omega Profile
Omega Joiner
