50-45-2 Series

Non-Thermal Break Profile · Thermal Break Joiner

A hybrid configuration - non-thermal break aluminium profiles paired with thermal break nylon joiners for 45 mm panel AHU construction.

Get a Quote Download DataSheet
Non-Thermal Break
VDI 6022 Certified

System Specs

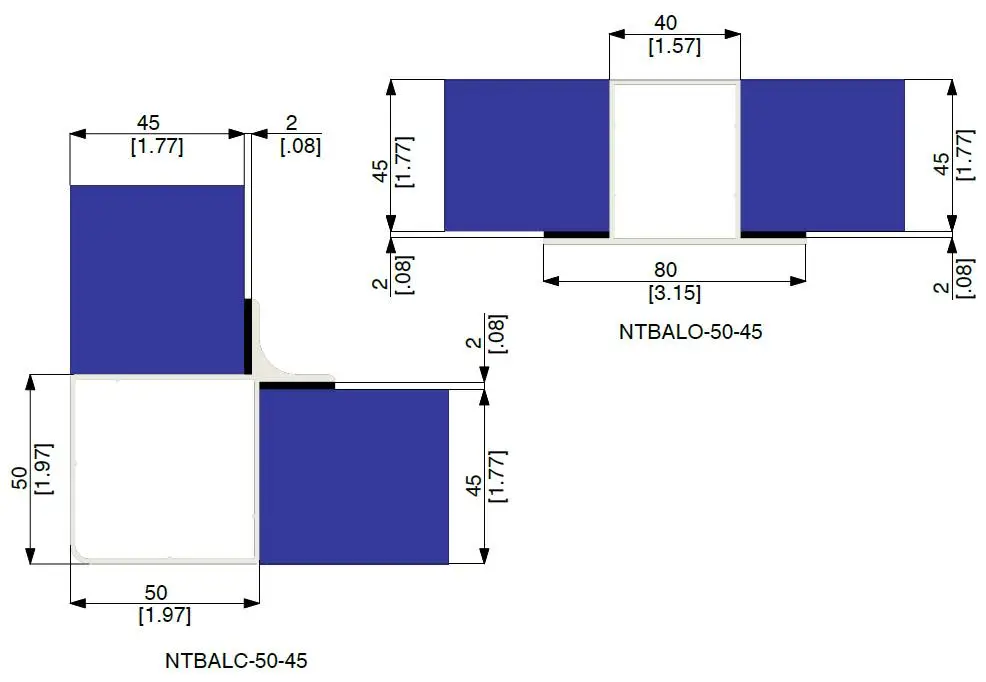

Non-Thermal Break Profile with Thermal Break Joiner System Section Profile Configuration
Panel Thickness 45 mm
Frame Architecture Non-Thermal Break Profile with Thermal Break Joiner
Nylon Certification VDI 6022 Standard

Components table

Component
Part Code
Material
Type
Corner Profile
NTB ALC 5045-2
Aluminium EN AW6063
Non-Thermal Break
Corner Joiner
TB NYCC 5045
Nylon VDI 6022
Thermal Break
Omega Profile
NTB ALO 5045-2
Aluminium EN AW6063
Non-Thermal Break
Omega Joiner
TB NYO 5045
Nylon VDI 6022
Thermal Break

Product Components

Corner Profile

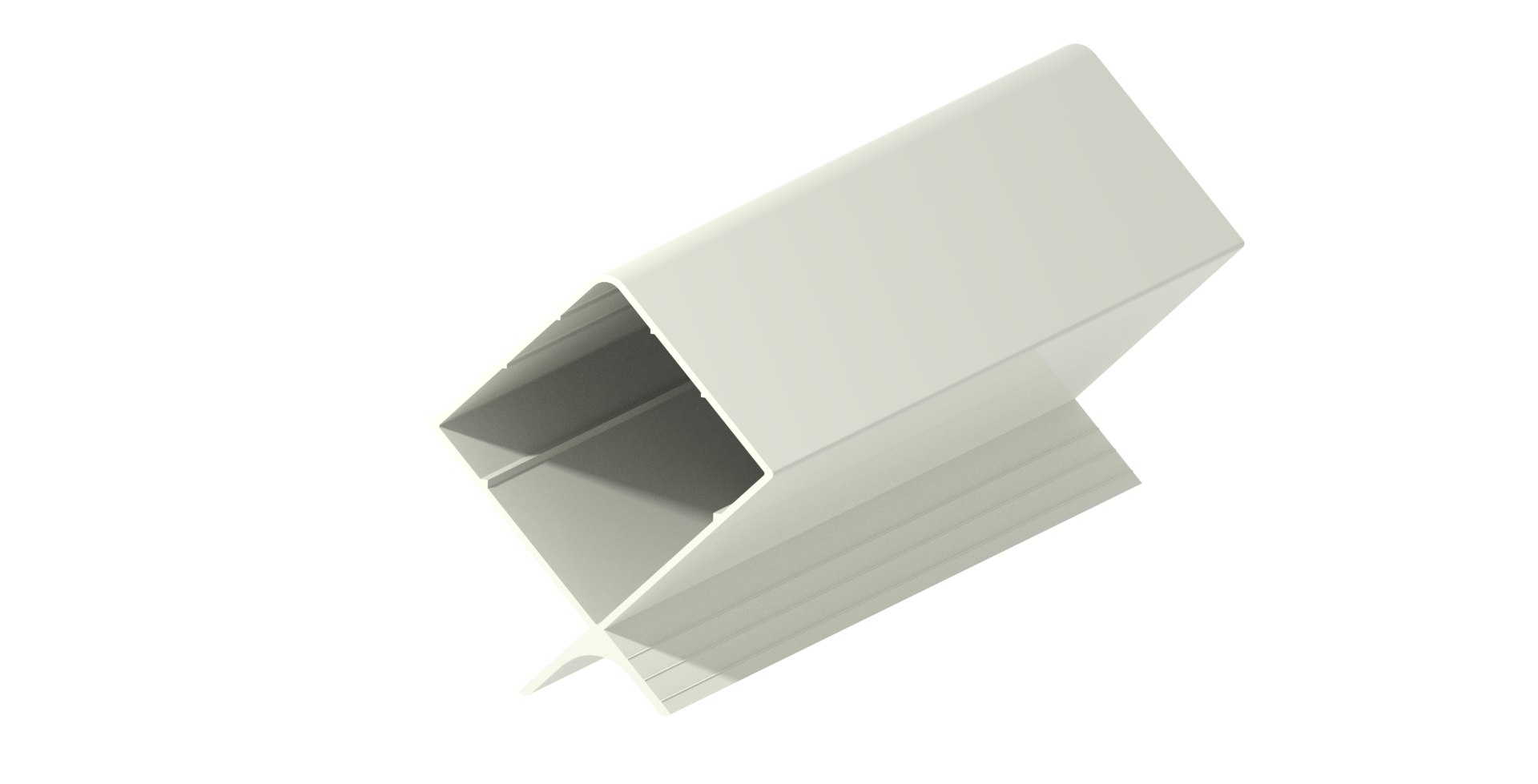

TB ALC 4042 Aluminium Profile Layout
Part Code NTB ALC 5045-2
Material Aluminium EN AW6063
Type Non-Thermal Break

Corner Joiner

TB NYC 4042 Corner Joiner Component
Part Code TB NYCC 5045
Material Nylon VDI 6022
Type Thermal Break

Omega Profile

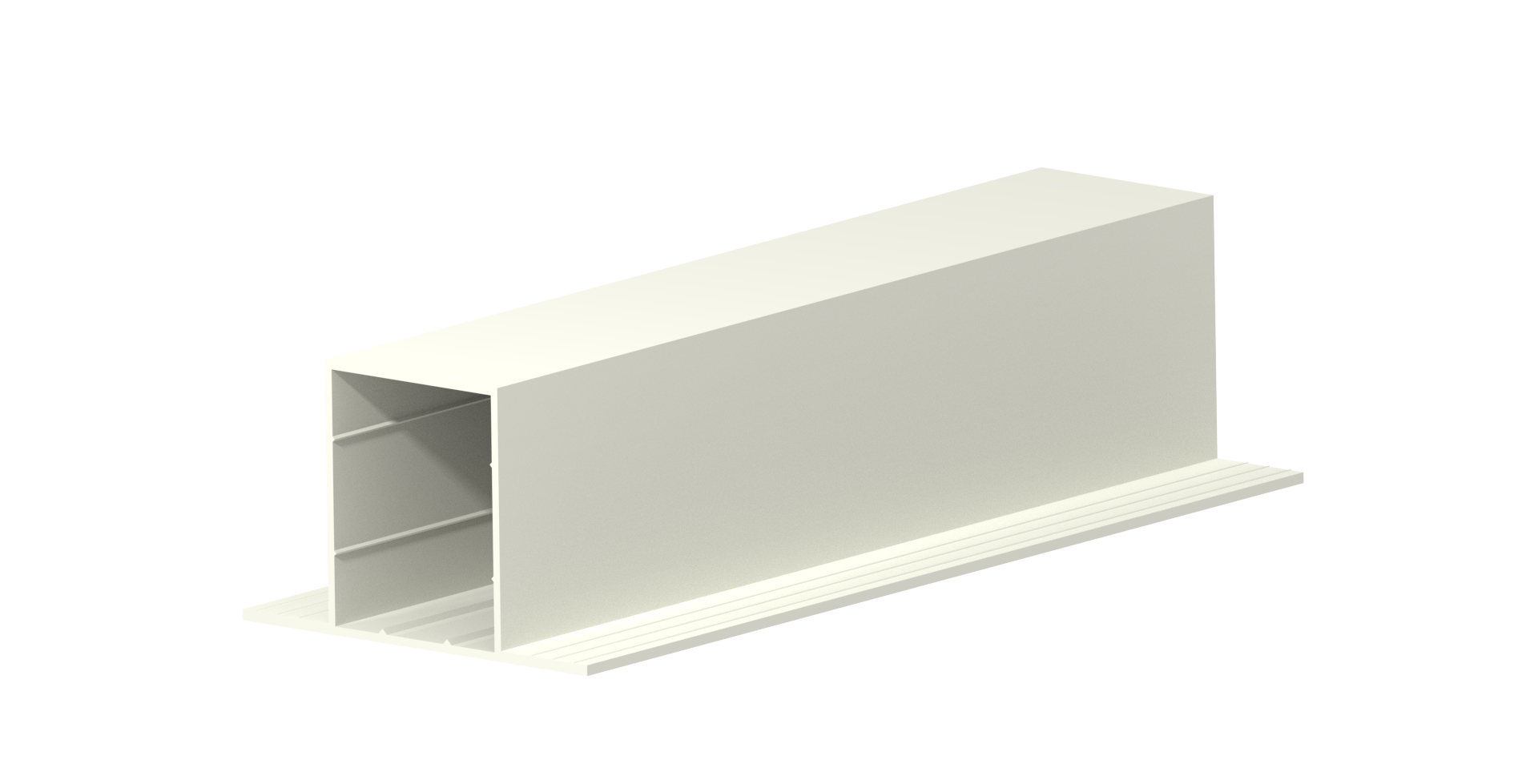

TB ALO 4042 Omega Profile Line Section
Part Code NTB ALO 5045-2
Material Aluminium EN AW6063
Type Non-Thermal Break

Omega Joiner

TB NYO 4042 Omega Joiner Component
Part Code TB NYO 5045
Material Nylon VDI 6022
Type Thermal Break
