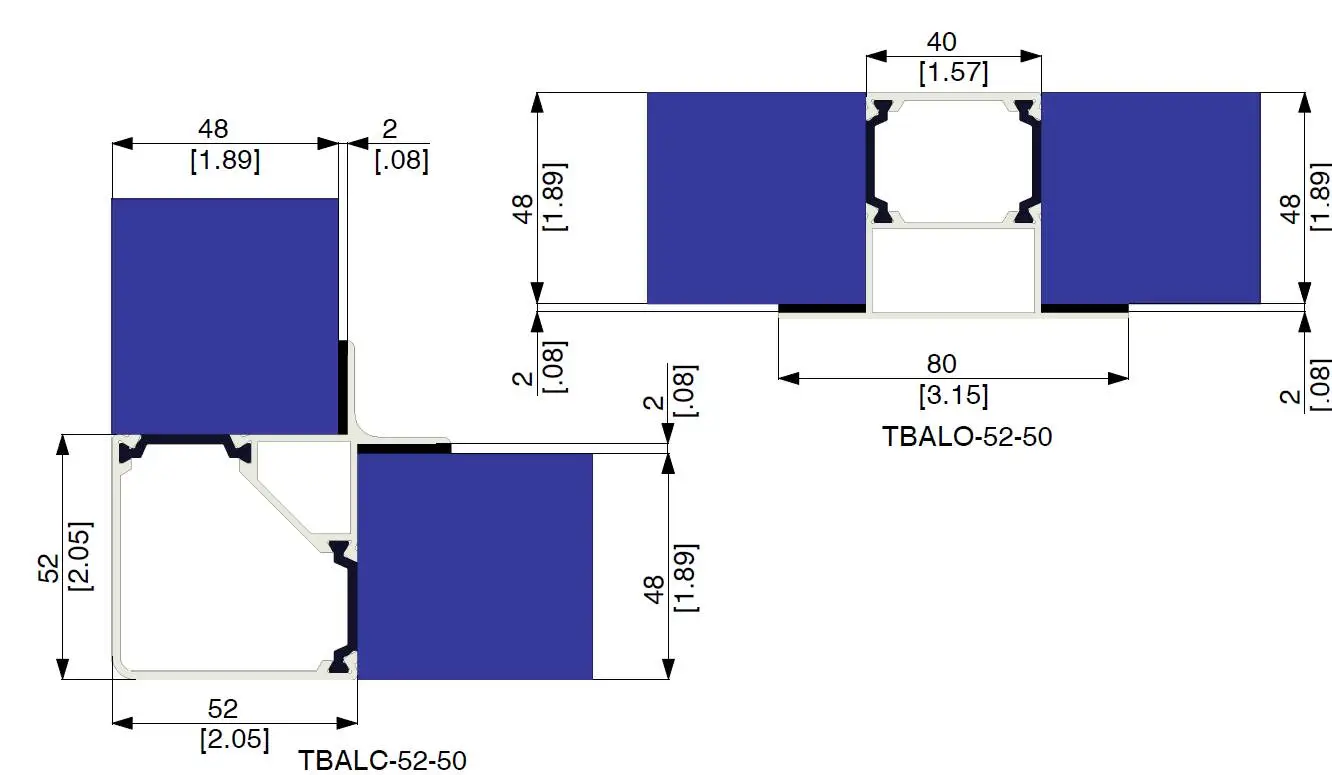

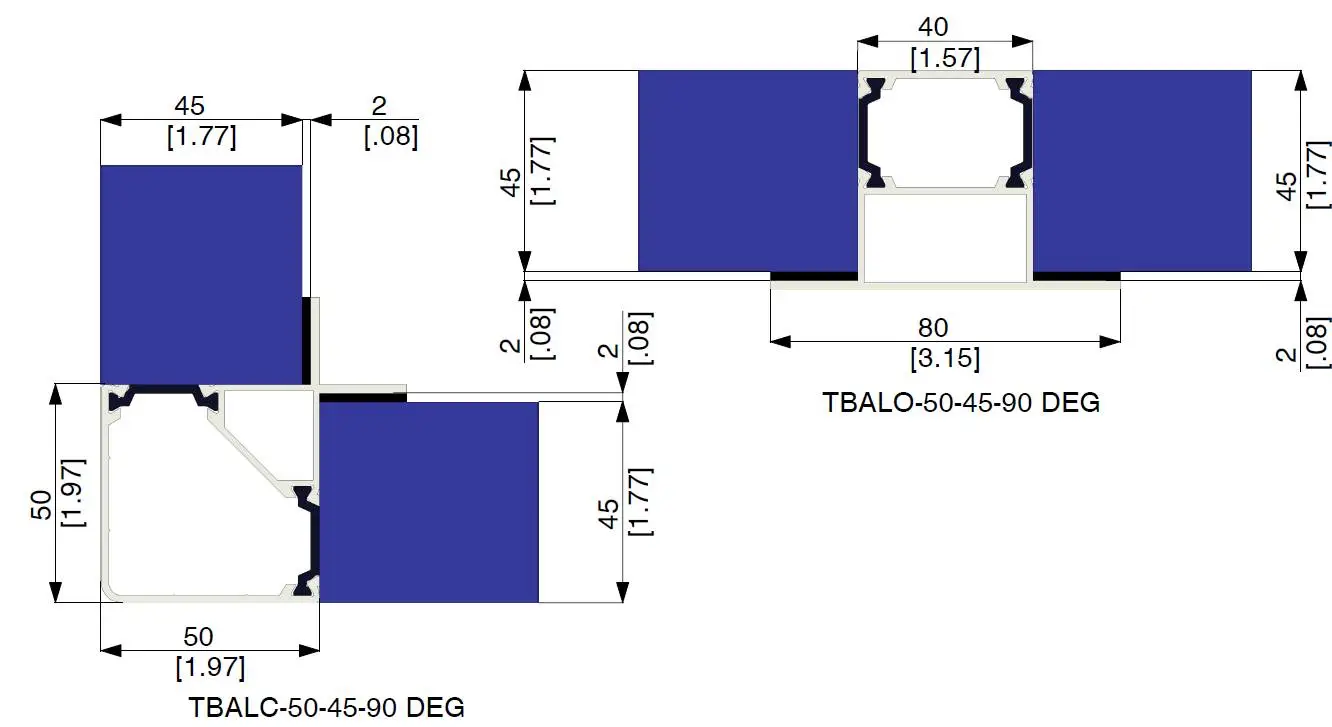

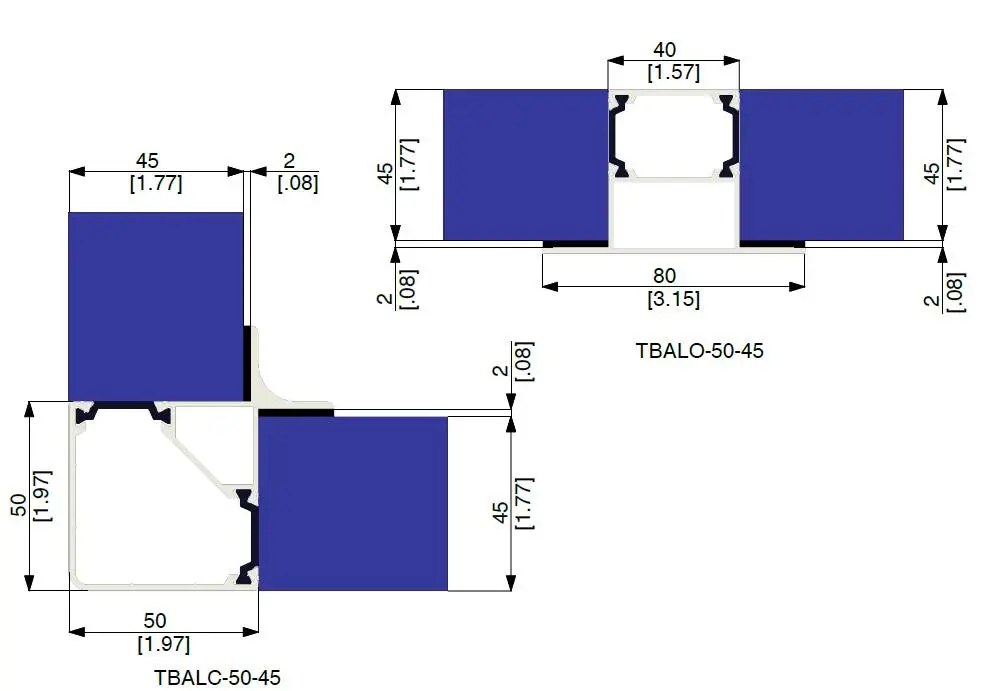

Products/Profiles & Joiners/52-50 Series – Thermal Break 52-50 Series Thermal Break A thermal break profile system for AHU panel frames with 48 mm panel thickness. Get a Quote Download DataSheet Thermal Break VDI 6022 Certified System Specs Panel Thickness 50 mm Frame Architecture Thermal Break Nylon Certification VDI 6022 Standard Components Table Component Part Code Material Corner Profile TB ALC 5250 Aluminium EN AW6063 Corner Joiner TB NYC 5250 Nylon VDI 6022 Omega Profile TB ALO 5250 Aluminium EN AW6063 Omega Joiner TB NYO 5250 Nylon VDI 6022 Product Components Corner Profile Part Code TB ALC 5250 Material Aluminium EN AW6063 Corner Joiner Part Code TB NYC 5250 Material Nylon VDI 6022 Omega Profile Part Code TB ALO 5250 Material Aluminium EN AW6063 Omega Joiner Part Code TB NYO 5250 Material Nylon VDI 6022 Related Series 50-45 Series Vivant's most specified thermal break series - the only profile system independently tested by TÜV NORD Germany to EN 1886:2007. 50-45-90DEG Series A 90-degree variant thermal break profile system for AHU panel frames with 45 mm panel thickness. 70-50 Series A heavy-duty thermal break profile system for large-format AHU construction - 50 mm panel thickness, 70 mm nominal dimension.
