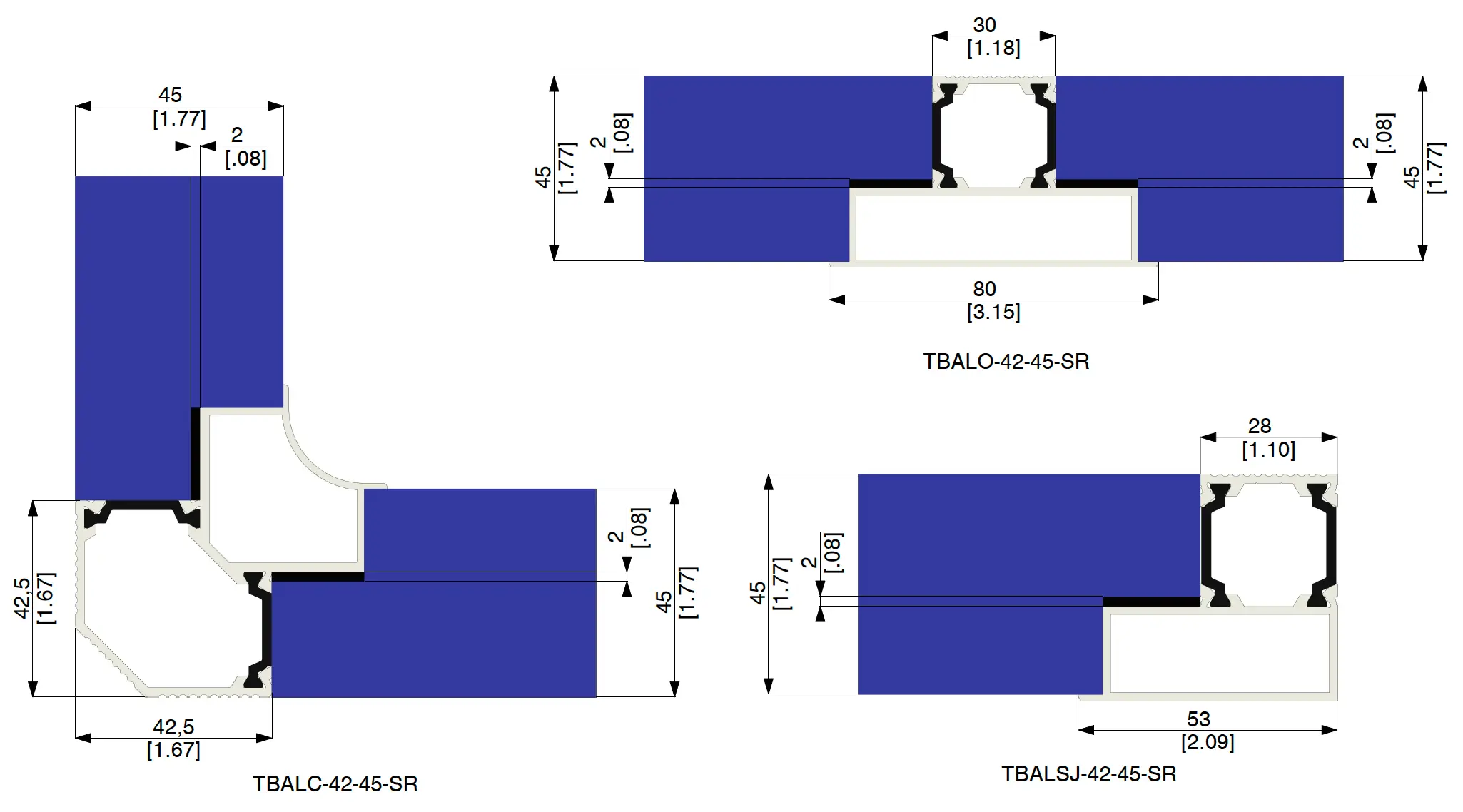

SR 42-45 Series
Thermal Break - Serration Surface
A serration surface thermal break profile system for 45 mm panel AHU construction - textured outer face for enhanced panel adhesive or gasket bonding.
Thermal Break
VDI 6022 Certified
System Specs
Panel Thickness
45 mm
Frame Architecture
Thermal Break · Serration Surface
Nylon Certification
VDI 6022 Standard
What is Serration Surface? The aluminium profiles in the SR series have a machined serrated surface on the panel-facing side. This textured profile provides a mechanical key that improves bonding between the profile and panel edge – used in high-performance AHU builds where a standard smooth interface is not sufficient.
Components Table
Component
Part Code
Material
Corner Profile
TB ALSRC 4245
Aluminium EN AW6063 · Serrated
Corner Joiner
TB NYC 4245
Nylon VDI 6022
Omega Profile
TB ALSRO 4245
Aluminium EN AW6063 · Serrated
Omega Joiner
TB NYO 4245
Nylon VDI 6022
Product Components
Corner Profile
Corner Joiner
Omega Profile
Omega Joiner
Section Joining Components
Component
Part Code
Material
Section Joining Profile

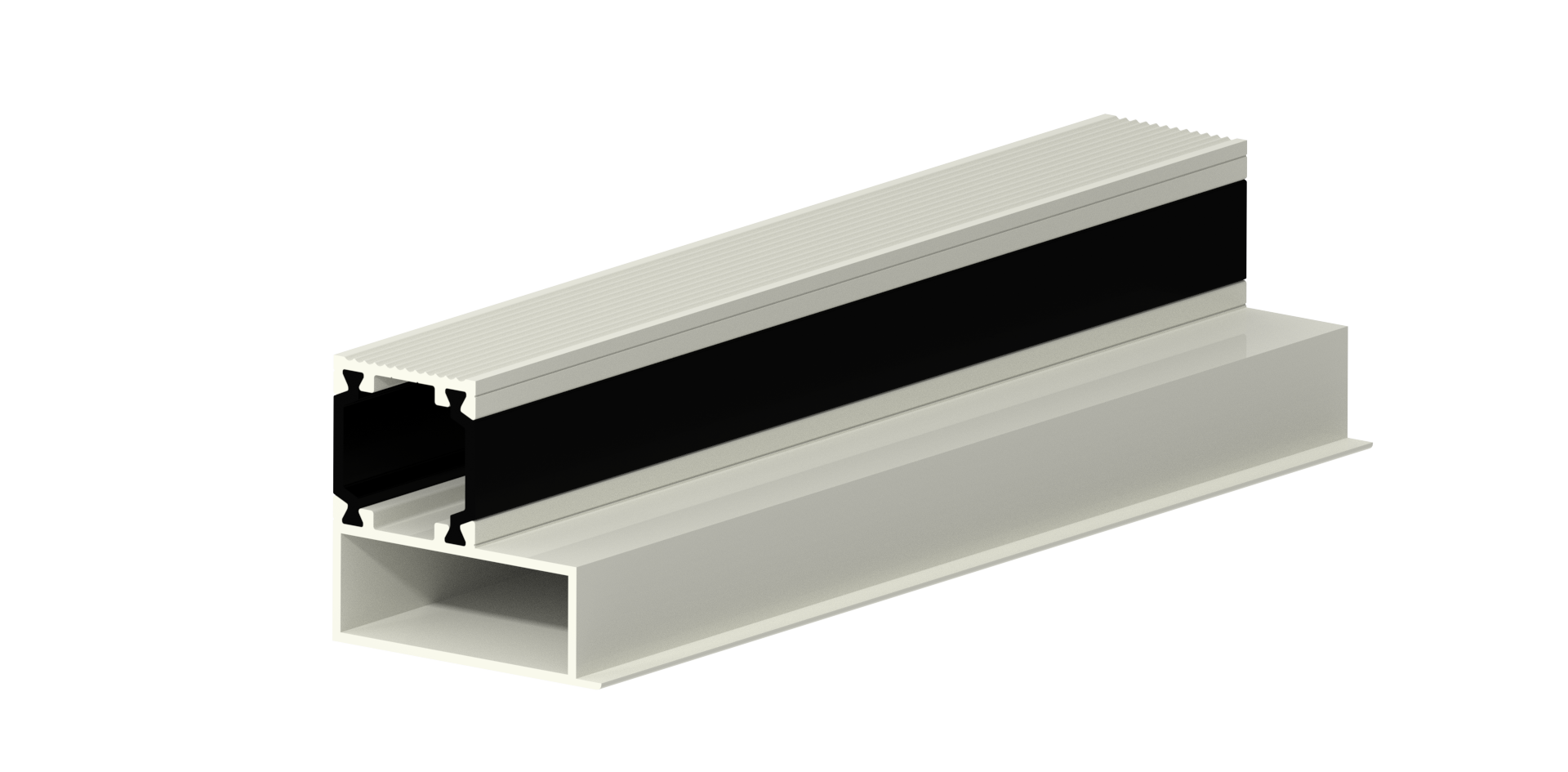

TB ALSRJ 4245
Aluminium EN AW6063 · Serrated
Section Joining Joiner

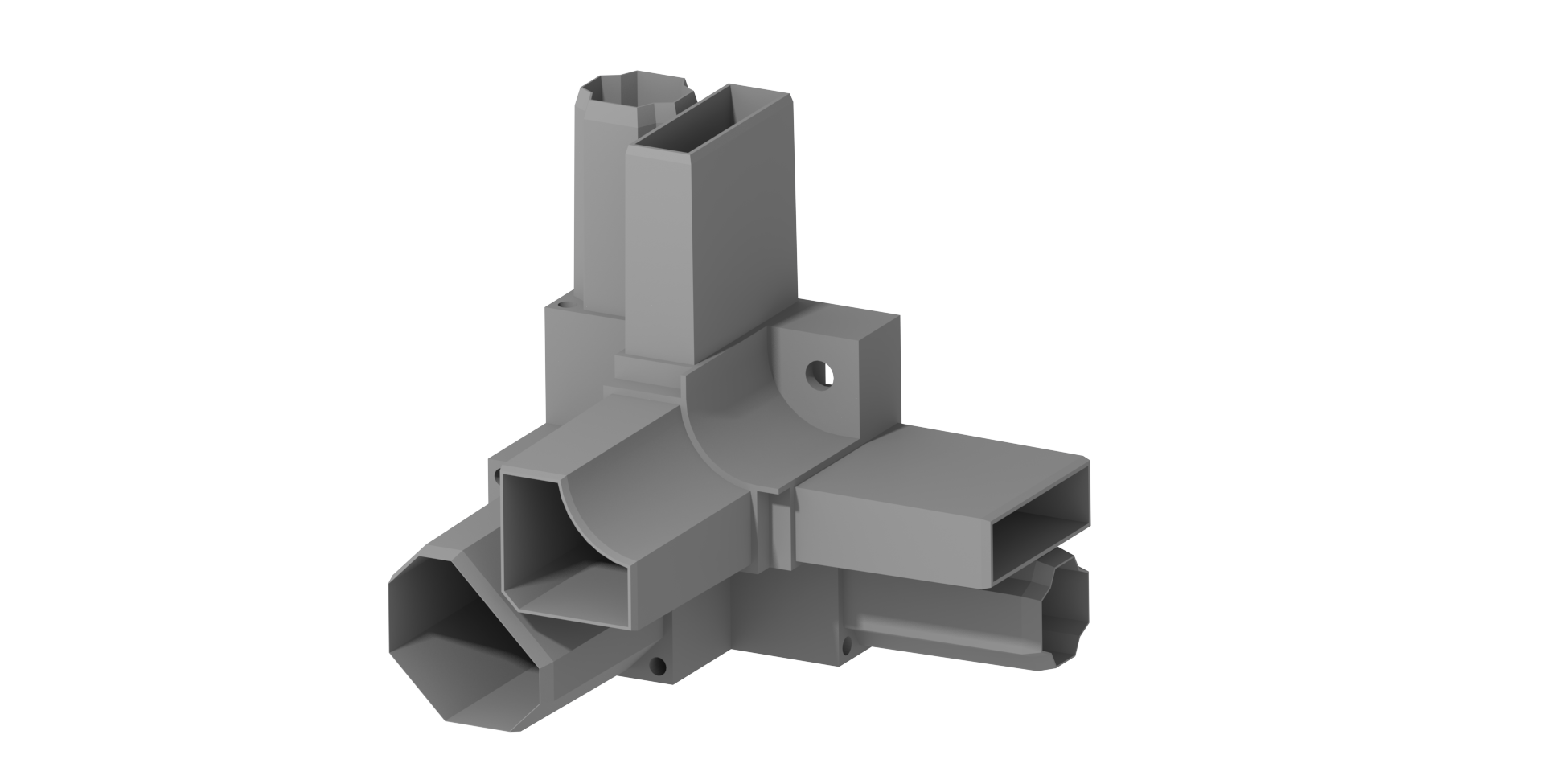

TB NYJ 4245
Nylon VDI 6022
Section Joining Product Components
Section Joining Profile
Section Joining Joiner
