Volume Control Dampers
Every component. One supplier.
From the gear that drives the blade to the base profile that frames the opening - Vivant supplies every part of a volume control damper assembly. Individual coded components or complete kits.
How a VCD Works
A multi-blade operational layout engineered to modulate airflow via unified physical link rotation structures.
Handle (NY DMHD / GI DMHD)
Operator turns the handle
Gear (NY DMGR)
Gear translates handle rotation to blade movement
Blade (AL DMBL)
Blade rotates from fully open to fully closed
Airflow
Modulated from full to zero
Damper Profiles
Heavy-gauge structural components extruded from high-performance aluminium alloys for dimensional structural stability.
| Part Component Name | Part Code | Material Specifications | Role / Application Description |
|---|---|---|---|
| Top / Base Profile | AL DMTB | Aluminium EN AW6063 | Outer fixed frame within the duct |
| Blade Profile | AL DMBL | Aluminium EN AW6063 | Rotating element that controls airflow |
| Shoulder Profile | AL DMSH | Aluminium EN AW6063 | Carries the blade pivot seats |
| Intermediate Profile | AL DMIM | Aluminium EN AW6063 | Mid-span blade support for wider assemblies |

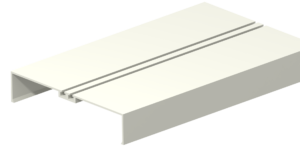

Top / Base Profile

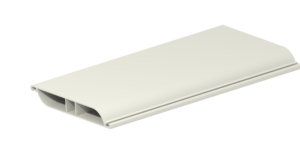

Blade Profile

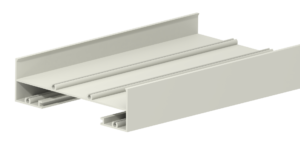

Shoulder Profile

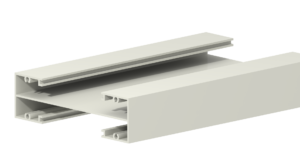

Intermediate Profile
Gear System
All nylon gear system components for VCD assembly - manufactured to VDI 6022 standard.
| Part Component Name | Part Code | Material Specifications | Technical Notes |
|---|---|---|---|
| Complete Gear Set | NY DMGRS | Nylon VDI 6022 | All gear components supplied as a kit |
| Gear | NY DMGR | Nylon VDI 6022 | Main drive gear. Connects the handle to the blade rotation mechanism. |
| H-Bush | NY DMHB | Nylon VDI 6022 | Blade shaft pivot bush |
| Blade Plate Left | NY DMPL | Nylon VDI 6022 | Left-hand end plate |
| Blade Plate Right | NY DMPR | Nylon VDI 6022 | Right-hand end plate |
| Round Bush | NY DMRB | Nylon VDI 6022 | Secondary pivot bush |
| Stopper Stick | NY DMST | Nylon VDI 6022 | Limits blade rotation |

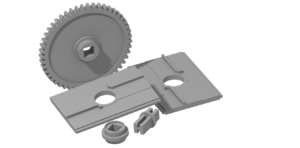

Complete Gear Set
Gear
H-Bush
Blade Plate Left
Blade Plate Right
Round Bush
Stopper Stick
Handle, Gasket & Rod
Ancillary mechanical interface elements designed for heavy structural operation and reliable seal dynamics.
| Part Component Name | Part Code | Material Specifications |
|---|---|---|
| Nylon Damper Handle | NY DMHD | Nylon VDI 6022 |
| GI Damper Handle | GI DMHD | Galvanised Iron |
| Damper Gasket | NR DMG | Natural Rubber |

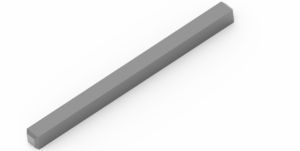

| Handle Rod | MS DMRD | Mild Steel |

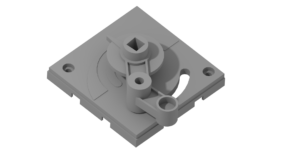

Nylon Damper Handle
GI Damper Handle
Damper Gasket
Handle Rod
Complete Assemblies
Pre-engineered multi-blade kits configured for simplified integration into industrial ventilation networks.
Single Window Damper
Damper with Intermediate
Gear System
All nylon gear system components for VCD assembly manufactured to VDI 6022 standard.
Complete Gear Set
Individual Gear Components
Profiles
Damper Profiles
Top / Base Profile
AL DMTB
Aluminium EN AW6063
- Outer fixed frame within the duct
Blade Profile
AL DMBL
Aluminium EN AW6063
- -
30-25-R
AL DMSH
Aluminium EN AW6063
- R-type corner · uses 30-25 omega components
Intermediate Profile
AL DMIM
Aluminium EN AW6063
- -
Components
Gear System
Complete Gear Set
NY DMGRS
Nylon VDI 6022
- All gear components as a kit
Gear
NY DMGR
Nylon VDI 6022
- Main drive gear
H-Bush
NY DMHB
Nylon VDI 6022
- Blade shaft pivot bush
Blade Plate Left
NY DMPL
Nylon VDI 6022
- Left-hand end plate
Blade Plate Right
NY DMPR
Nylon VDI 6022
- Right-hand end plate
Round Bush
NY DMRB
Nylon VDI 6022
- Secondary pivot bush
Stopper Stick
NY DMST
Nylon VDI 6022
- Limits blade rotation
Accessories
Handle, Gasket & Rod
Nylon Damper Handle
NY DMHD
Nylon VDI 6022
GI Damper Handle
GI DMHD
Galvanised Iron
Damper Gasket
NR DMG
Natural Rubber
Handle Rod
MS DMRD
Mild Steel
Accessories
Complete Assemblies
Single Window Damper
Narrower duct openings
Nylon VDI 6022
Damper with Intermediate
Wider duct openings
Galvanised Iron
